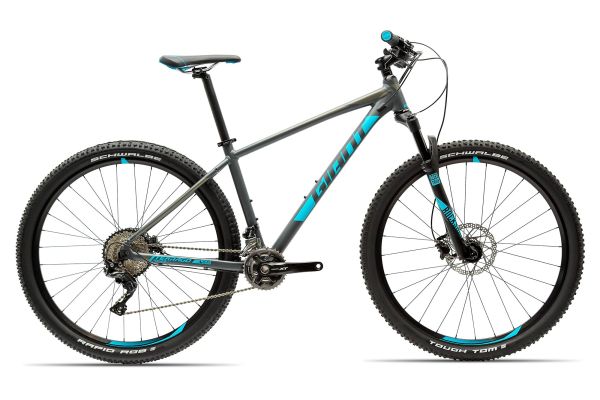

Terrago
29er 1 GE

2018

22000 SEK

Share

Built on a lightweight ALUXX aluminum frame that features classic hardtail design and the added off-road stability of larger diameter 29-inch wheels, Terrago is a great choice for XC terrain. The frame geometry is specifically designed for its wheel size and 100mm suspension fork. The result is a confident ride that’s perfect for XC riders looking to increase their speed and improve their skills on fun singletrack rides.

  • All-new ALUXX-grade Aluminium 29er frame
  • Fox 32 Rythm 100mm suspension fork with remote lockout
  • Shimano XT 2x11 speed drivetrain
  • Shimano XT hydraulic disc brakes
  • Giant GX03V aluminium double-wall 29er rims
  • Color: Black/Neon Green/Charcoal

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)39015,444017,349019,353521,1
BSeat Tube Angle (degrees)73,5°73,5°73,5°73,5°
CTop Tube Length (mm) (inch)57722,759923,662224,564625,4
DHead Tube Length (mm) (inch)953,71054,11244,91405,5
EHead Tube Angle (degrees)69,0°69,0°69,0°69,0°
FFork Rake (mm) (inch)461,8461,8461,8461,8
GTrail (mm) (inch)943,7943,7943,7943,7
HWheelbase (mm) (inch)111043,7113244,6115745,6118246,5
IChain Stay Length (mm) (inch)45517,945517,945517,945517,9
JBottom Bracket Drop (mm) (inch)552,2552,2552,2552,2
KStack (mm) (inch)60123,761124,162924,864325,3
LReach (mm) (inch)39915,741816,543517,145517,9
MStand Over Height (mm) (inch)72628,676029,979831,483332,8
NHandlebar Width (mm) (inch)78030,778030,778030,778030,7
OStem Length (mm) (inch)502602,4702,8803,1
PCrank Length (mm) (inch)1706,71756,91756,91756,9
QWheel Size 29292929
Specs
  • Sizes
    S, M, L, XL
  • Colors
    Black/Neon Green/ Charcoal
  • Frame
    ALUXX-grade Aluminum
  • Fork
    Fox 32 Rhythm, 100mm Travel, Remote Lockout, 15x110 QR
  • Handlebar
    Giant Connect Trail, 780mm x 31.8mm
  • Stem
    Giant Connect, 8 Degree
  • Seatpost
    Giant Connect, 30.9x400mm
  • Saddle
    Giant Contact (Neutral)
  • Pedals
    MTB Caged, 9/16"
  • Shifters
    Shimano XT, 2x11
  • Front Derailleur
    Shimano XT
  • Rear Derailleur
    Shimano XT, Shadow+
  • Brakes
    Shimano XT [F] 180 [R] 160, Hydraulic Disc
  • Brake Levers
    Shimano XT
  • Cassette
    Shimano SLX, 11-42t
  • Chain
    KMC X11
  • Crankset
    Shimano XT, 26/36
  • Bottom Bracket
    Shimano PressFit
  • Rims
    Giant GX03V 29" 6061 Aluminum, Double Wall, 21mm Inner Width
  • Hubs
    [F] Giant Tracker 15x100 Sealed Bearing [R] Giant Tracker Sport QR, Loose Ball
  • Spokes
    [F] Giant Tracker 15x100 Sealed Bearing [R] Giant Tracker Sport QR, Loose Ball
  • Tires
    [F] Schwalbe Tough Tom Active 27.5x2.25, [R] Schwalbe Rapid Rob Active 27.52.25
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All specifications listed are subject to change without notice.
