Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

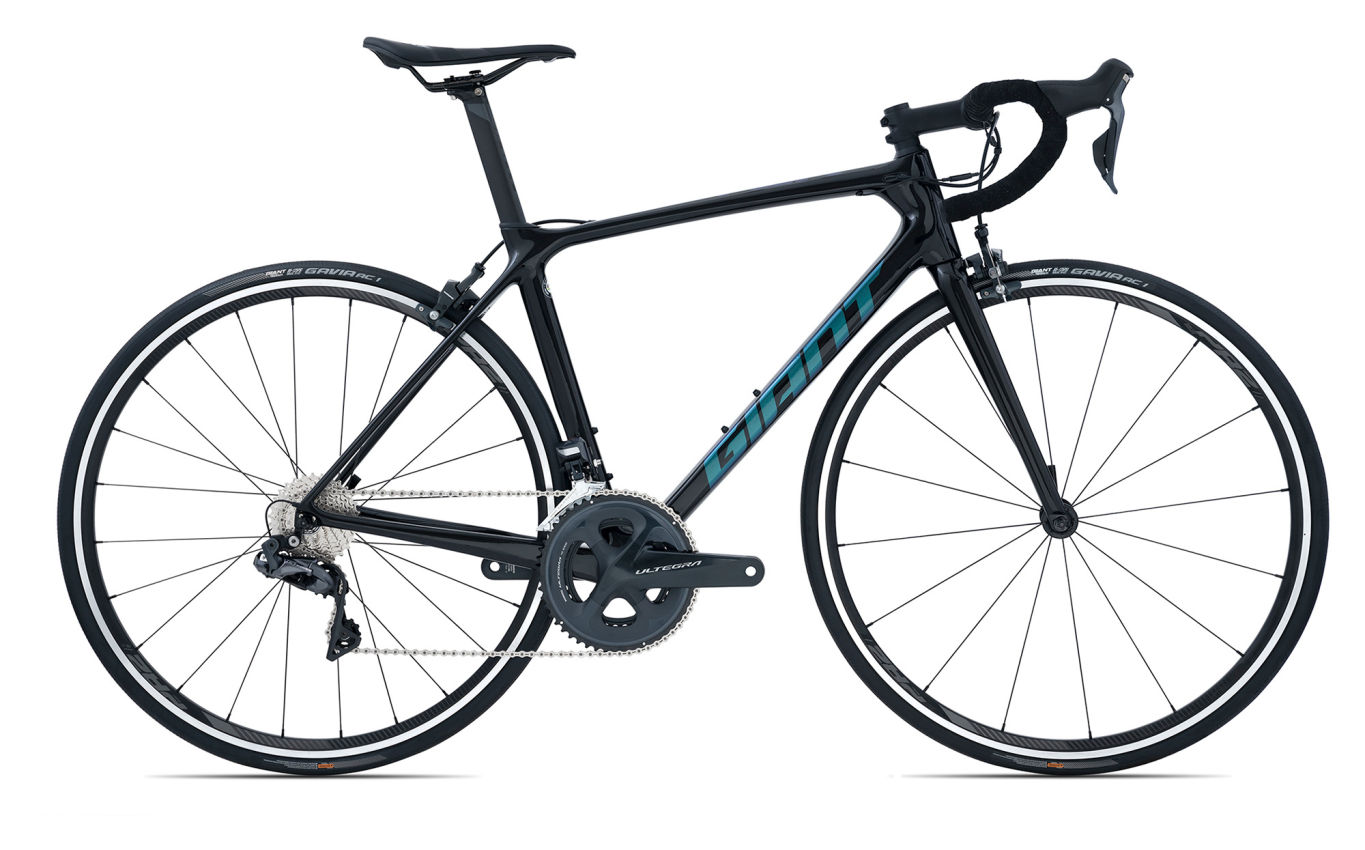

TCR Advanced 0
2020
37 500:-
The most efficient race bikes have the perfect balance of light weight, stiffness and smooth compliance on the road. The TCR Advanced delivers on all three, making it a versatile performer for competitive road riders.
The Advanced-grade composite of the TCR Advanced frame manages to shave every gram possible—without sacrificing its pedal-stomping stiffness. The OverDrive steerer system and MegaDrive downtube are engineered for the precise handling so you can rail corners at speed. A tubeless Giant WheelSystem delivers speed and efficiency with a smoother ride and a reduced risk of flats. And the Variant seatpost is engineered for an ideal blend of efficiency and compliance—so you stay fresh to the finish on those big days in the saddle.
Key Performance Factors
Lightweight efficiency
Composite frameset is engineered to offer minimal weight without sacrificing pedaling stiffness and efficiency.
Pro pedigree
Proven geometry and precise steering stiffness makes this frame design the choice of climbers and all-rounders who compete at the Giro d’Italia, Tour de France and other major races around the world.
Speed and compliance
The Variant composite seatpost and Giant WheelSystem with tubeless tires combine for a smooth ride and low rolling resistance.
Techs & Features
Advanced Composite Technology
Compact Road Design
Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Storleksguide och geometri
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 157 cm5’2”
169 cm5’7”
- S
- 165 cm5’5” 175 cm5’9”
- M
- 171 cm5’7” 181 cm5’11”
- ML
- 177 cm5’10” 187 cm6’2”
- L
- 183 cm6’0” 193 cm6’4”
- XL
- 189 cm6’2” 199 cm6’6”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Längd sadelrör (mm) (inch) | 42516,7 | 44517,5 | 47018,5 | 50019,7 | 52520,7 | 55021,7 |
| B | Vinkel sadelrör (degrees) | 74,5° | 73,5° | 73,0° | 73,0° | 73,0° | 72,0° |
| C | Topprörets längd (mm) (inch) | 51520,3 | 53521,1 | 55021,7 | 57022,4 | 58022,8 | 60523,8 |
| D | Styrhuvud Längd (mm) (inch) | 1234,8 | 1335,2 | 1485,8 | 1686,6 | 1887,4 | 2038 |
| E | Vinkel styrhuvud (degrees) | 71,0° | 72,5° | 73,0° | 73,0° | 73,0° | 73,0° |
| F | Gaffelvinkel (mm) (inch) | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 |
| G | Spår (mm) (inch) | 702,8 | 602,4 | 572,2 | 572,2 | 572,2 | 572,2 |
| H | Hjulbas (mm) (inch) | 97238,3 | 97038,2 | 97638,4 | 99739,3 | 100739,6 | 102140,2 |
| I | Kedjestagslängd (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J | Nedre fäste Drop (mm) (inch) | 702,8 | 682,7 | 682,7 | 652,6 | 652,6 | 652,6 |
| K | Stack (mm) (inch) | 51720,4 | 52920,8 | 54521,5 | 56222,1 | 58122,9 | 59523,4 |
| L | Reach (mm) (inch) | 37214,6 | 37814,9 | 38315,1 | 39815,7 | 40215,8 | 41216,2 |
| M | Stå över höjden (mm) (inch) | 72428,5 | 74229,2 | 76530,1 | 78731 | 80531,7 | 82332,4 |
| N | Styrets bredd (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 | 44017,3 | 44017,3 |
| O | Stamlängd (mm) (inch) | 803,1 | 903,5 | 1003,9 | 1104,3 | 1104,3 | 1204,7 |
| P | Vevlängd (mm) (inch) | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 | 1756,9 | 1756,9 |
| Q | Hjulstorlek | 700C | 700C | 700C | 700C | 700C | 700C |
All specifications listed are subject to change without notice.
