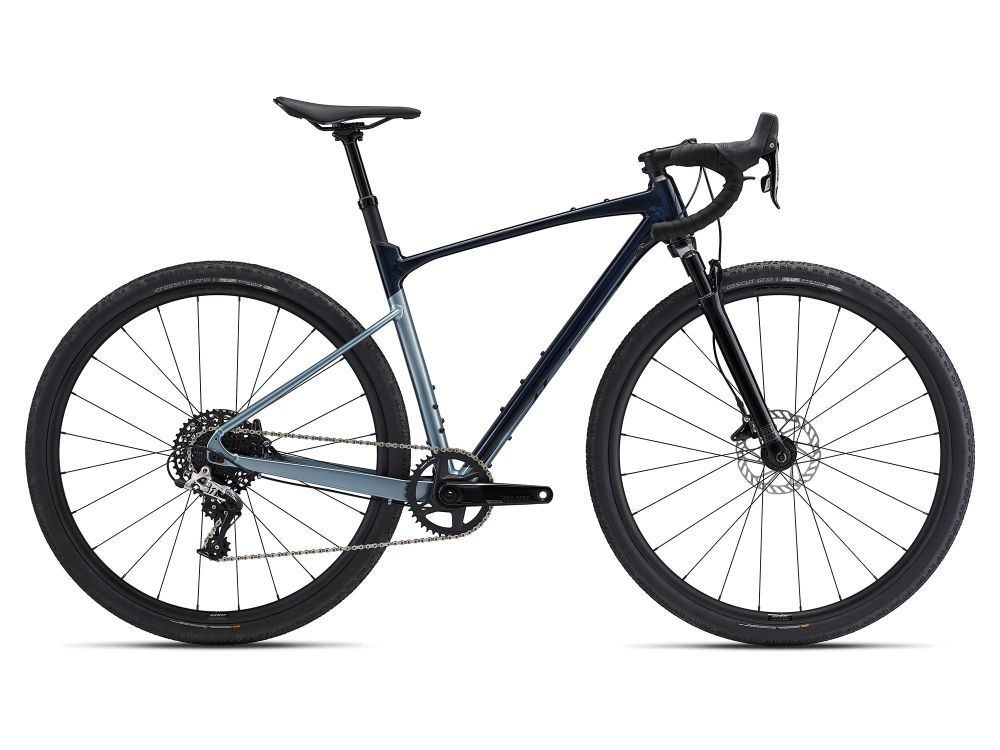

Revolt X 1

Original price: 33 900 kr 37 900 kr

Unlock new terrain with this progressive new gravel bike featuring front suspension technology. The lightweight aluminum frame has suspension-optimized geometry and a flip chip that lets you adjust wheelbase and tire clearance for any adventure.

Key Performance Factors

Smooth control

Lightweight aluminum frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster over rugged gravel and dirt.

Tuned compliance

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can use the included dropper/suspension seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.

Highlights

An ALUXX aluminum frameset with suspension-optimized geometry is paired with a purpose-built short-travel (40mm) fork. A flip chip on the rear dropouts allows you to adjust the wheelbase and increase tire clearance up to 53mm.You can use the included dropper seatpost, switch to a proprietary D-Fuse seatpost, or use a traditional 30.9mm round seatpost. A Contact SL D-Fuse handlebar minimizes fatigue by further absorbing shocks and vibrations.

Revolt X with interactive tooltips

Techs & Features

ALUXX Aluminum Technology
D-Fuse Technology
Flip Chip - Dropout
OverDrive
Tubeless System

Storleksguide och geometri

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • M
      169 cm5’7”  to 181 cm5’11”
  • ML
      174 cm5’9”  to 186 cm6’1”
  • L
      179 cm5’10”  to 191 cm6’3”
  • XL
      189 cm6’2”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  MMLLXL
  SHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONG
ALängd sadelrör (mm) (inch)47018,549019,351020,153020,9
BVinkel sadelrör (degrees)73,5° | 73,4°73,0° | 72,9°73,0° | 72,9°73,0° | 72,9°
CTopprörets längd (mm) (inch)5602257522,65852360023,6
DStyrhuvud Längd (mm) (inch)1154,51305,11455,71606,3
EVinkel styrhuvud (degrees)71,5° | 71,4°72,0° | 71,9°72,0° | 71,9°72,0° | 71,9°
FGaffelvinkel (mm) (inch)502502502502
GSpår (mm) (inch)73,52,9 | 76,8370,12,8 | 73,42,970,12,8 | 73,42,970,12,8 | 73,42,9
HHjulbas (mm) (inch)102640,4 | 103640,8103140,6 | 104141104141 | 105141,4105741,6 | 106742
IKedjestagslängd (mm) (inch)42516,7 | 43517,142516,7 | 43517,142516,7 | 43517,142516,7 | 43517,1
JNedre fäste Drop (mm) (inch)682,7 | 692,7682,7 | 692,7682,7 | 692,7682,7 | 692,7
KStack (mm) (inch)57622,759223,360723,962124,4
LReach (mm) (inch)38915,339315,539915,741016,1
MStå över höjden (mm) (inch)75029,5 | 75629,876730,2 | 77330,478530,9 | 79231,280331,6 | 81031,9
NStyrets bredd (mm) (inch)46018,146018,148018,948018,9
OStamlängd (mm) (inch)702,8803,1803,1803,1
PVevlängd (mm) (inch)172,56,8172,56,81756,91756,9
QHjulstorlek 700c700c700c700c
Specs
  • Storlekar
    XS, S, M, M/L, L, XL
  • Färger
    Cold Night/Aged Denim
  • Ram
    ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
  • Gaffel
    RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
  • Bakdämpare
    N/A
  • Styre
    Giant Contact SL XR D-Fuse, 16-degree flare XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
  • Greppar
    cork tape with gel
  • Stam
    Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm
  • Sadelstolpe
    Postmodern, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
  • Sadel
    Giant Approach
  • Pedaler
    N/A
  • Växlar
    SRAM Rival 1, 1x11
  • Framväxel
    N/A
  • Bakväxel
    SRAM Rival 1
  • Bromsar
    SRAM Rival 1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
  • Bromsspakar
    SRAM Rival 1, left lever dropper switch
  • Kassett
    SRAM Rival, 11-speed, 11x42
  • Kedja
    SRAM PC-1130
  • Vevparti
    SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175m
  • Bromsreglage
    SRAM DUB, threaded
  • Fälgar
    Giant XCT-1 Disc WheelSystem
  • Nav
    Shimano cup and cone
  • Ekrar
    stainless
  • Däck
    Giant CrossCut Grip 1, 700x45c, tubeless
  • Extrafunktioner
    tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
  • Vikt
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All specifications listed are subject to change without notice.
