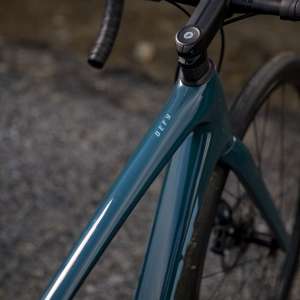

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

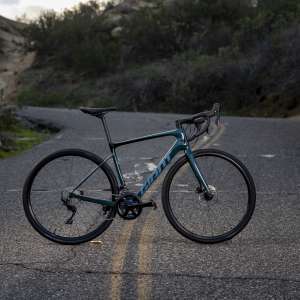

Choose the longer route. Climb higher mountains. This smooth-riding endurance road bike is made for long-distance rides on all types of roads.
Key Performance Factors
Engineered compliance
Advanced Composite frame is specifically engineered for endurance road riding, giving you a smooth ride quality and less fatigue on long rides. The D-Fuse seatpost and handlebar absorb road shocks and vibrations.
Total control
Seamless disc brake integration, including flat mounts and 12mm front and rear thru-axles, produces more consistent braking power for better control, even in wet weather and rough roads.
Versatility
Endurance road geometry, added tire clearance (up to 35mm) and disc-brake integration allow you to tackle a variety of roads and conditions, from smooth pavement to rugged mountain passes.
Storleks guide samt Geometri
Storlek är att använda endast som referens. Besök en auktoriserad Giant eller Liv återförsäljare för att bedöma rätt storlek. Tillgängliga storlekar kan variera från land till land.
- XS
- 157 cm5’2”
169 cm5’7”
- S
- 165 cm5’5” 175 cm5’9”
- M
- 171 cm5’7” 181 cm5’11”
- ML
- 177 cm5’10” 187 cm6’2”
- L
- 183 cm6’0” 193 cm6’4”
- XL
- 189 cm6’2” 199 cm6’6”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 41016,1 | 44517,5 | 48018,9 | 51520,3 | 53521,1 | 56522,2 |
| B | Seat Tube Angle (degrees) | 74,5° | 74,0° | 73,5° | 73,0° | 73,0° | 72,5° |
| C | Top Tube Length (mm) (inch) | 51520,3 | 53020,9 | 54521,5 | 56022 | 57522,6 | 59523,4 |
| D | Head Tube Length (mm) (inch) | 1204,7 | 1405,5 | 1606,3 | 1857,3 | 2058,1 | 2258,9 |
| E | Head Tube Angle (degrees) | 70,5° | 71,8° | 72,5° | 72,5° | 72,5° | 72,5° |
| F | Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 | 502 | 502 |
| G | Trail (mm) (inch) | 71,32,8 | 63,12,5 | 58,22,3 | 58,22,3 | 58,22,3 | 582,3 |
| H | Wheelbase (mm) (inch) | 99539,2 | 99539,2 | 99839,3 | 101039,8 | 102540,4 | 104040,9 |
| I | Chain Stay Length (mm) (inch) | 42016,5 | 42016,5 | 42016,5 | 42016,5 | 42016,5 | 42016,5 |
| J | Vevlager (mm) (inch) | 753 | 753 | 753 | 702,8 | 702,8 | 702,8 |
| K | Stack (mm) (inch) | 52220,6 | 54621,5 | 56722,3 | 58623,1 | 60523,8 | 62424,6 |
| L | Reach (mm) (inch) | 37014,6 | 37414,7 | 37714,8 | 38115 | 39015,4 | 39815,7 |
| M | Stand Over Height (mm) (inch) | 73128,8 | 76029,9 | 78630,9 | 81632,1 | 83532,9 | 85633,7 |
| N | Bredd Styre (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 | 44017,3 | 44017,3 |
| O | Längd Styrstam (mm) (inch) | 803,1 | 903,5 | 1003,9 | 1003,9 | 1104,3 | 1104,3 |
| P | Vevarmslängd (mm) (inch) | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 | 1756,9 | 1756,9 |
| Q | Hjulstorlek | 700C | 700C | 700C | 700C | 700C | 700C |
Teknologier
Advanced Composite Technology
D-Fuse Technology

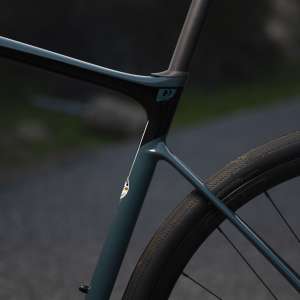

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
OverDrive

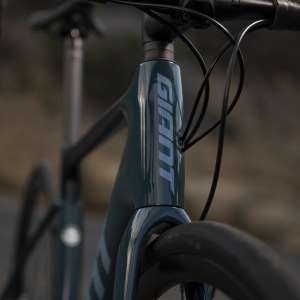

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Compact Road Design
Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
RideSense Ready
This frame comes prepared to accept the Giant RideSense sensor and accompanying hardware.
Alla specifikationer kan ändras utan varsel.
