XTC Jr 26 +

Share

There’s no better way to get young riders motivated than to give them the proper tools for adventure. With a lightweight frame, perfectly sized wheels, and all the latest mountain bike technologies, XtC Jr. 26+ gets them ready to roll.

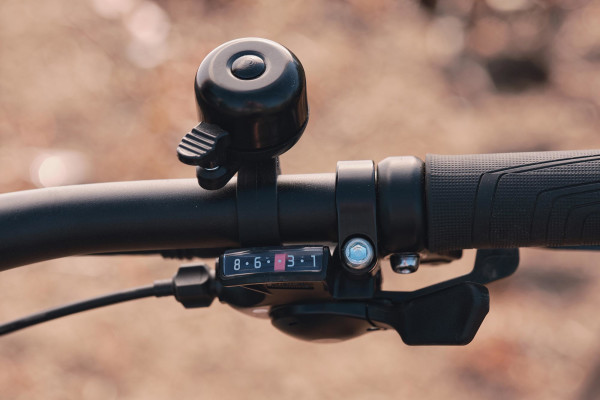

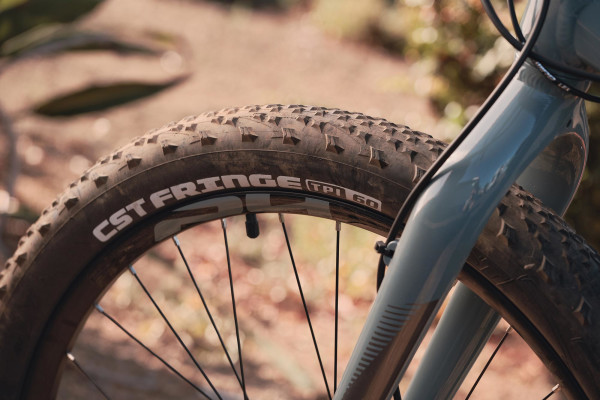

The XtC Jr. 26+ is built on a lightweight ALUXX aluminum frame with a low stand-over height and geometry designed for smaller bodies. Its specially sized 26-inch wheels come with extra-wide 2.8-inch tires, which add comfort and traction to help boost the confidence of young riders. The soft, cushy tires can be ridden with lower air pressure, giving the bike a smooth ride on rocky, bumpy trails. It also features a lightweight, easy-to-use 1x9 drivetrain, powerful disc brakes, and youth-sized components for added comfort and control.

Ключевые преимущества

Lightweight frame

ALUXX-grade aluminum frame provides a lightweight, purpose-built chassis for aspiring young off-road riders.

Confidence and control

26-inch wheels and high-volume “Plus” size tires create a cushioned off-road ride quality for added control and confidence.

Kid-friendly features

Youth-specific performance components help young riders improve their off-road skills.

Особенности

The XtC Jr. 26+ is built on a lightweight ALUXX aluminum frame with a low stand-over height and geometry designed for smaller bodies. Its specially sized 26-inch wheels come with extra-wide 2.8-inch tires, which add comfort and traction to help boost the confidence of young riders. The soft, cushy tires can be ridden with lower air pressure, giving the bike a smooth ride on rocky, bumpy trails. It also features a lightweight, easy-to-use 1x9 drivetrain, powerful disc brakes, and youth-sized components for added comfort and control.

2020 XtC Jr. 26+ with interactive tooltips

Технологии

ALUXX Aluminum Technology

Таблица размеров и геометрия

Подбор размера носит справочный характер и не является максимально точным. Пожалуйста, обратитесь к местному авторизованному дилеру Liv или Giant, чтобы определить правильный размер. Доступные размеры могут различаться в зависимости от страны.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      145 cm4’9”  to 165 cm5’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  One Size
AДлина подседельной трубы (mm) (inch)35013,8
BУгол наклона подседельной трубы (degrees)73,0°
CДлина верхней трубы (mm) (inch)56022
DВысота рулевого стакана (mm) (inch)1204,7
EУгол наклона рулевого стакана (degrees)69,0°
FВылет вилки (mm) (inch)451,8
GДлина выбега вилки (mm) (inch)83,13,3
HДлина колесной базы (mm) (inch)105741,6
IДлина перьев (mm) (inch)42516,7
JВысота кареточного узла (BB Drop) (mm) (inch)451,8
KСтэк (Stack) (mm) (inch)55221,7
LРич (Reach) (mm) (inch)39115,4
MСтендовер (mm) (inch)62924,8
NШирина руля (mm) (inch)64025,2
OДлина выноса (mm) (inch)602,4
PДлина шатунов (mm) (inch)1606,3
QРазмер колес 26"
Спецификации
  • Размеры
    one size
  • Цвета
    Gray
  • Рама
    ALUXX-Grade Aluminum
  • Вилка
    alloy
  • Амортизатор
    N/A
  • Руль
    Giant Sport, alloy, 31.8
  • Вынос
    forged alloy Ahead, 15-degree
  • Подседельный штырь
    alloy, single-bolt, 30.9x350
  • Седло
    Giant Grow Technology
  • Педали
    platform
  • Манетки
    Shimano Altus SL-M315
  • Передний переключатель
    N/A
  • Задний переключатель
    Shimano Altus
  • Тормоза
    Shimano MT-200, hydraulic disc
  • Тормозные ручки
    Shimano
  • Кассета
    Shimano HG31, 11x34
  • Цепь
    KMC Z7
  • Система
    alloy forged, 32t
  • Каретка
    cartridge
  • Обода
    alloy, 35mm width
  • Втулки
    Giant Disc, 28h, 100/148, QR, alloy, disc
  • Спицы
    stainless, 14g
  • Покрышки
    CST C1918, 26x2.8
  • Вес
    Сколько весит этот велосипед? Это частый и правильный вопрос. Но на самом деле в велосипедной промышленности нет единых стандартов для измерения веса велосипедов, и это часто приводит к дезинформации. Общий вес велосипеда варьируется в зависимости от размера, материала рамы, покраски, навесного оборудования и т.д. Мы в Giant считаем, что единственный верный способ узнать точный вес того или иного велосипеда - обратиться в ближайший магазин Giant.

Производитель оставляет за собой право изменять спецификации без предварительного уведомления.

Производитель оставляет за собой право изменять спецификации без предварительного уведомления.
