Professional-grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including Continuous Fiber Technology to add strength while reducing weight and Carbon Nanotube resin to improve impact resistance.
Light, efficient and flat-out fast. When the climbs are steep and the speeds are high, this is the weapon of choice for XC pros like two-time MTB Marathon world champ Leo Páez.
Ключевые преимущества
Superlight and responsive
Pro-level Advanced SL composite frame is the lightest off-road frame Giant has ever produced, offering serious XC racers a competitive advantage for climbing, accelerating and sprinting.
Ultra-efficient
The frame is engineered with the highest stiffness-to-weight-ratio of any hardtail mountain bike in its class, which translates to ultra-efficient pedaling power and precise handling on the trail.
Custom compliance
Each frame is custom-tuned based on its size. Individual composite lay-up schedules are created to optimize vertical compliance to produce a smoother ride quality on XC terrain.
Особенности

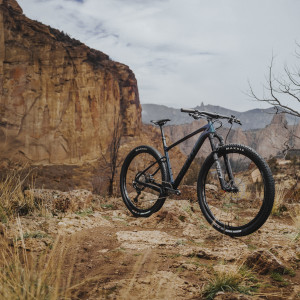

With World Cup pedigree and a progressive frame design, this is the lightest off-road machine ever built by Giant. The chassis is handcrafted with pro-level Advanced SL composite, featuring geometry made to optimize its fast-rolling 29-inch wheels. Every frame is custom assembled with a specific composite layup schedule that varies according to frame size. The result is supercharged climbing efficiency, smooth handling through roots, rocks and ruts, and uncompromising performance to match your XC obsession.

ADVANCED SL COMPOSITE
OPTIMIZED TUBE SHAPING
Frameset features special tubing shapes designed to minimize weight, optimize stiffness, and improve the bike’s handling on XC terrain.
OVERDRIVE

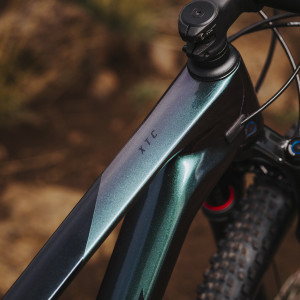

Designed to provide precise front-end steering performance, this system’s oversized headset bearings (1 1/2” lower and 1 1/8”) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
INTERNAL CABLE ROUTING
Large cable ports and tool-free bottom bracket guide ensure easy cable installation while minimizing frame weight.
MEGADRIVE
A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
POWERCORE
GIANT TUBELESS SYSTEM
Integrated Tubeless WheelSystem and tires delivers improved efficiency, comfort and control in the most user-friendly and reliable system.
BOOST TECHNOLOGY
Wider hub spacing (110mm front / 148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
Технологии
Advanced SL Composite Technology
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Таблица размеров и геометрия
Подбор размера носит справочный характер и не является максимально точным. Пожалуйста, обратитесь к местному авторизованному дилеру Liv или Giant, чтобы определить правильный размер. Доступные размеры могут различаться в зависимости от страны.

- S
- 163 cm5’4”
172 cm5’8”
- M
- 171 cm5’7”
180 cm5’11”
- L
- 179 cm5’10”
188 cm6’2”
- XL
- 187 cm6’2”
198 cm6’6”


S | M | L | XL | ||
---|---|---|---|---|---|
A | Длина подседельной трубы (mm) (inch) | 38015 | 43117 | 47518,7 | 52520,7 |
B | Угол наклона подседельной трубы (degrees) | 73,5° | 73,5° | 73,5° | 73,5° |
C | Длина верхней трубы (mm) (inch) | 59523,4 | 61424,2 | 63525 | 66526,2 |
D | Высота рулевого стакана (mm) (inch) | 953,7 | 953,7 | 1054,1 | 1154,5 |
E | Угол наклона рулевого стакана (degrees) | 69,5° | 69,5° | 70,0° | 70,0° |
F | Вылет вилки (mm) (inch) | 431,7 | 431,7 | 431,7 | 431,7 |
G | Длина выбега вилки (mm) (inch) | 94,93,7 | 94,93,7 | 94,93,7 | 94,93,7 |
H | Длина колесной базы (mm) (inch) | 108742,8 | 110643,5 | 112844,4 | 115945,6 |
I | Длина перьев (mm) (inch) | 42516,7 | 42516,7 | 42516,7 | 42516,7 |
J | Высота кареточного узла (BB Drop) (mm) (inch) | 582,3 | 582,3 | 582,3 | 582,3 |
K | Стэк (Stack) (mm) (inch) | 60423,8 | 60423,8 | 61324,1 | 63224,9 |
L | Рич (Reach) (mm) (inch) | 41616,4 | 43517,1 | 45317,8 | 47718,8 |
M | Стендовер (mm) (inch) | 73729 | 76430,1 | 79131,1 | 82932,6 |
N | Ширина руля (mm) (inch) | 76029,9 | 76029,9 | 76029,9 | 76029,9 |
O | Длина выноса (mm) (inch) | 602,4 | 702,8 | 803,1 | 903,5 |
P | Длина шатунов (mm) (inch) | 1706,7 | 1756,9 | 1756,9 | 1756,9 |
Q | Размер колес | 29" | 29" | 29" | 29" |
- РазмерыS, M, L, XL
- ЦветаChameleon Galaxy / Starry Night
- РамаAdvanced SL-Grade Composite, 12x148mm thru-axle
- ВилкаRockShox SID SL Select, 100mm, Charger 2 RL damper, 44mm offset, 15x110 Maxle Stealth, remote lockout
- АмортизаторN/A
- РульGiant Contact SLR XC Flat, 760x35mm
- GripsGiant XC Pro S:32mm, M:32mm, L:34mm, XL:34mm
- ВыносGiant Contact SL XC 35 S:60mm, M:70mm, L:80mm, XL:90mm
- Подседельный штырьGiant Contact Switch dropper, Shimano remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 125mm travel / 30.9 x 395mm XL: 125mm travel / 30.9 x 395mm

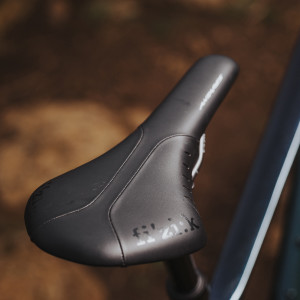

- СедлоFi'zi:k Antares R5 with K:ium rails
- ПедалиN/A
- МанеткиShimano Deore XT M8100, 1x12
- Передний переключательN/A

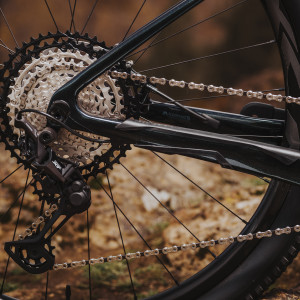

- Задний переключательShimano Deore XT M8100
- ТормозаShimano Deore XT BR-M8100, hydraulic, Shimano RT-66 rotors [F]180mm, [R]160mm
- Тормозные ручкиShimano Deore XT BL-M8100
- КассетаShimano Deore XT M8100, 10x51
- ЦепьKMC X-12
- СистемаPraxis Girder Carbon Boost, 32t S:170mm, M:175mm, L:175mm, XL:175mm
- КареткаShimano, press fit
- ОбодаGiant XCR 1 29 Carbon WheelSystem
- ВтулкиGiant XCR 1 29 Carbon WheelSystem
- СпицыGiant XCR 1 29 Carbon WheelSystem
- ПокрышкиMaxxis Rekon Race 29x2.25, foldable, TLR, EXO, tubeless
- Дополнительноtubeless prepared, 2.25" max tire size, 38t max chainring size
- ВесСколько весит этот велосипед? Это частый и правильный вопрос. Но на самом деле в велосипедной промышленности нет единых стандартов для измерения веса велосипедов, и это часто приводит к дезинформации. Общий вес велосипеда варьируется в зависимости от размера, материала рамы, покраски, навесного оборудования и т.д. Мы в Giant считаем, что единственный верный способ узнать точный вес того или иного велосипеда - обратиться в ближайший магазин Giant.
Производитель оставляет за собой право изменять спецификации без предварительного уведомления.
