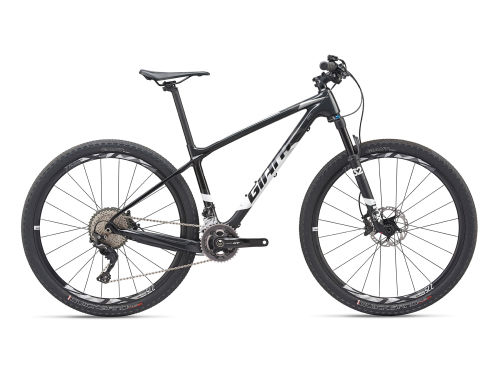

XTC Advanced 2

2019

What is my size?

Share

THIS SUPERLIGHT XC HARDTAIL BURNS UP XC RACETRACKS. ACCELERATE QUICKER, CLIMB EASIER, AND DESCEND WITH SPEED.

Built around 27.5 wheels for XC quickness and agility, this XC race machine hammers up climbs and rails through rough corners. The Advanced-grade composite frame delivers absolute efficiency and a compliant ride to help soak up technical terrain. The Overdrive steerer tube and a 100mm suspension fork create flawless front end handling whether you’re climbing, sprinting or descending rough singletrack. The MegaDrive downtube and PowerCore bottom bracket help create a stiff chassis that makes the most of your pedaling power. And details including the integrated seatpost clam and internal cable routing give it a clean profile that looks great on the podium.

Download PDF

MarimiXS, S, M, L
CuloriBlack / Red
CadruAdvanced-Grade Composite
FurcaFox Float 32 27.5, GRIP 2, 15x110mm
SocN/A
GhidonGiant Contact Trail, 690 x 31.8mm
PipaGiant Contact
Tija saGiant Sports, 27.2 X 375mm
SaGiant Contact (neutral)
PedaleN/A
Manete schimbatorShimano SLX, 2x11
Schimbator fataShimano SLX
Schimbator spateShimano SLX
FraneShimano SLX
Manete franaShimano SLX
PinioaneShimano SLX, 11x42
LantKMC X11
AngrenajFC- 2X11, 28x38
JanteGiant XC2 27.5, tubeless ready
Butucialloy, 15/110mm [F], 12/142mm [R]
Spitestainless
AnvelopeMaxxis 27.5x2.1, 60tpi
GreutateCat cantareste bicicleta? Este o intrebare uzuala si indreptatita. Adevarul este ca nu exista un standard al industriei care sa reglementeze aceasta masurare, si asta duce la multe confuzii. Variatiile au drept cauza marimile si materialul cadrului, finisajele si echiparile. Cum tendinta este spre o greutate mai redusa, fiecare astfel de detaliu conteaza. GIANT considera ca singura cale prin care poti fi sigur 100% de greutatea unei biciclete este de a solicita cantarirea ei la magazin.

Toate specificatiile enumerate se pot schimba fara notificare prealabila.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

XS   155 cm5’1”  to 165 cm5’5”
S   163 cm5’4”  to 172 cm5’8”
M   171 cm5’7”  to 180 cm5’11”
L   179 cm5’10”  to 188 cm6’2”
XL   187 cm6’2”  to 198 cm6’6”
bike diagram
  XSSMLXL
Seat Tube Length (mm) (inch)35013,839015,444017,349019,352020,5
Seat Tube Angle (degrees)73,5°73,5°73,0°73,0°73,0°
Top Tube Length (mm) (inch)55521,957522,659523,461524,264025,2
Head Tube Length (mm) (inch)953,7953,71003,91104,31204,7
Head Tube Angle (degrees)69,5°69,5°69,5°69,5°69,5°
Fork Rake (mm) (inch)421,7421,7421,7421,7421,7
Trail (mm) (inch)883,5883,5883,5883,5883,5
Wheelbase (mm) (inch)105341,5107342,2108842,8110943,7113444,6
Chain Stay Length (mm) (inch)43016,943016,943016,943016,943016,9
Bottom Bracket Drop (mm) (inch)502502502502502
Stack (mm) (inch)58022,858022,85852359423,460423,8
Reach (mm) (inch)38315,140315,941616,44331745517,9
Stand Over Height (mm) (inch)68827,170627,873929,177530,579831,4
Handlebar Width (mm) (inch)78030,778030,778030,778030,778030,7
Stem Length (mm) (inch)502602,4702,8803,1903,5
Crank Length (mm) (inch)1706,71706,71756,91756,91756,9
Wheel Size 27.5"27.5"27.5"27.5"27.5"

Toate specificatiile enumerate se pot schimba fara notificare prealabila.
