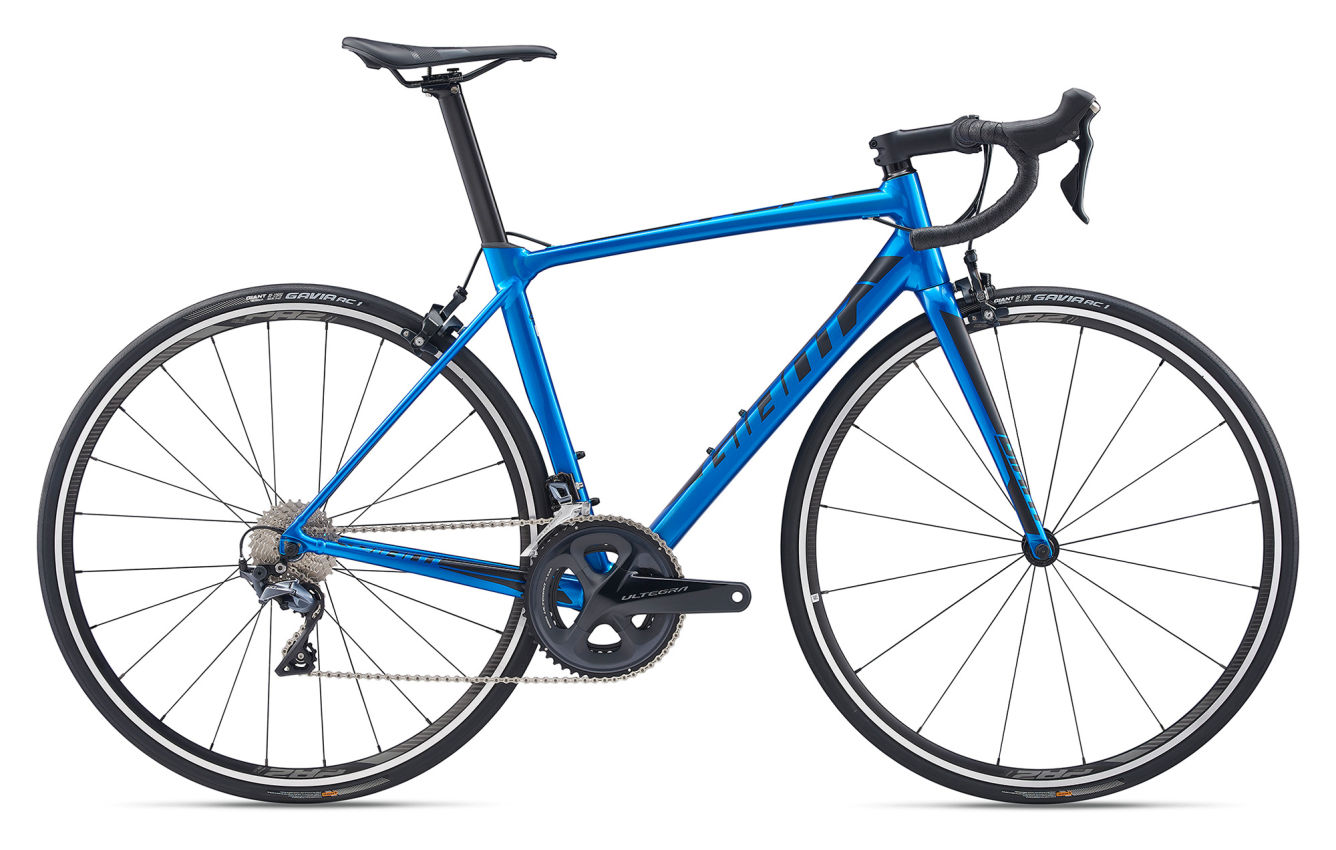

TCR SLR 1
From daily training rides to your biggest race of the year. Built by the world leaders in aluminum bicycle engineering, this superlight alloy road racer is quick, agile and always ready to race.
For sharp handling, proven geometry, and super-efficient road performance, it’s hard to beat the feel of the lightweight aluminum TCR SLR. Giant’s world-leading alloy engineering team achieved 20 percent thinner tubing walls for a superlight frame that doesn’t compromise stiffness or strength. Crafted from top-end ALUXX SLR aluminum with proven design features including Giant’s Compact Road geometry and OverDrive 2 tapered steerer tube, it’s light, it’s fast, it’s ready to rip. The Variant seatpost helps smooth out the ride, and our tubeless WheelSystem boosts speed and efficiency while reducing your risk of punctures. It’s a well-rounded machine that flies from start to finish.
Key Performance Factors
Lightweight efficiency
ALUXX SLR aluminum frame is engineered for minimal weight without sacrificing pedaling stiffness and efficiency.
Sharp handling
Proven Compact Road frame geometry produces a lightweight, stiff ride quality that serious racers demand.
Speed and compliance
The Variant composite seatpost and Giant WheelSystem with tubeless tires combine for a smooth ride and low rolling resistance.
Techs & Features
Ghid de marimi si Geometrii
Marimile prezentate mai jos sunt numai de referinta. Pentru alegerea unei marimi corecte este necesar sa vizitati un Dealer Giant sau Liv, sau sa cereti consultanta online.
- XS
- 157 cm5’2”
169 cm5’7”
- S
- 165 cm5’5” 175 cm5’9”
- M
- 171 cm5’7” 181 cm5’11”
- ML
- 177 cm5’10” 187 cm6’2”
- L
- 183 cm6’0” 193 cm6’4”
- XL
- 189 cm6’2” 199 cm6’6”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 42816,9 | 44817,6 | 47318,6 | 50319,8 | 52820,8 | 55321,8 |
| B | Seat Tube Angle (degrees) | 74,5° | 73,5° | 73,0° | 73,0° | 73,0° | 72,0° |
| C | Top Tube Length (mm) (inch) | 51520,3 | 53521,1 | 55021,7 | 57022,4 | 58022,8 | 60523,8 |
| D | Head Tube Length (mm) (inch) | 1234,8 | 1335,2 | 1485,8 | 1686,6 | 1887,4 | 2038 |
| E | Head Tube Angle (degrees) | 71,0° | 72,5° | 73,0° | 73,0° | 73,0° | 73,0° |
| F | Fork Rake (mm) (inch) | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 |
| G | Trail (mm) (inch) | 69,82,7 | 60,32,4 | 57,22,2 | 57,22,2 | 57,22,2 | 57,22,2 |
| H | Wheelbase (mm) (inch) | 97238,3 | 97038,2 | 97638,4 | 99739,3 | 100739,6 | 102140,2 |
| I | Chain Stay Length (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J | Bottom Bracket Drop (mm) (inch) | 702,8 | 682,7 | 682,7 | 652,6 | 652,6 | 652,6 |
| K | Stack (mm) (inch) | 51720,4 | 52920,8 | 54521,5 | 56222,1 | 58122,9 | 59523,4 |
| L | Reach (mm) (inch) | 37214,6 | 37814,9 | 38315,1 | 39815,7 | 40215,8 | 41216,2 |
| M | Stand Over Height (mm) (inch) | 72428,5 | 74229,2 | 76530,1 | 78731 | 80531,7 | 82332,4 |
| N | Handlebar Width (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 | 44017,3 | 44017,3 |
| O | Stem Length (mm) (inch) | 803,1 | 903,5 | 1003,9 | 1104,3 | 1104,3 | 1204,7 |
| P | Crank Length (mm) (inch) | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 | 1756,9 | 1756,9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Toate specificatiile enumerate se pot schimba fara notificare prealabila.
