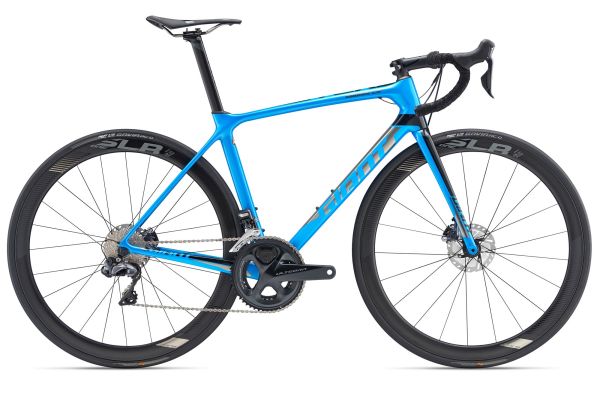

TCR Advanced Pro
Disc Frameset

Share

Climb, corner and descend with speed and efficiency. From the mountains to the flats, in all types of conditions, this lightweight composite road race frameset takes you to the next level.

Key Performance Factors

Class-leading efficiency

With an outstanding stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered for superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.

Advanced Aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total Control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.

Highlights

This podium-seeking road racer is engineered with an Advanced-grade composite frame that boasts an outstanding stiff-to-weight ratio, along with aerodynamic tube shaping in the headtube, downtube and fork. It also features added frame and fork clearance for larger diameter tires up to 32mm, making it a versatile race machine for all types of road conditions. With its proven Compact Road geometry, OverDrive 2 front end, flat-mount disc-brake integration and smooth-riding Variant seatpost, it’s a race-tuned performer that excels in all aspects of road riding.

TCR Advanced Pro Disc Frame with interactive tooltips

Techs & Features

Tehnologie avansată SL a carbonului
Compact Road Design
MegaDrive
PowerCore
RideSense Ready
OverDrive 2

Ghid de marimi si Geometrii

Marimile prezentate mai jos sunt numai de referinta. Pentru alegerea unei marimi corecte este necesar sa vizitati un Dealer Giant sau Liv, sau sa cereti consultanta online.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
ASeat Tube Length (mm) (inch)42516,744517,547018,550019,753020,956022
BSeat Tube Angle (degrees)74,5°74,0°73,5°73,0°73,0°72,5°
CTop Tube Length (mm) (inch)52020,553521,155021,756522,258022,860023,6
DHead Tube Length (mm) (inch)1204,71305,11455,71656,51857,32007,9
EHead Tube Angle (degrees)71,0°72,3°73,0°73,0°73,0°73,0°
FFork Rake (mm) (inch)451,8451,8451,8451,8451,8451,8
GTrail (mm) (inch)72,12,8642,559,22,359,22,359,22,359,22,3
HWheelbase (mm) (inch)97638,497738,598038,699139100639,6102040,2
IChain Stay Length (mm) (inch)40515,940515,940515,940515,940515,940515,9
JBottom Bracket Drop (mm) (inch)722,8702,8702,8672,6672,6672,6
KStack (mm) (inch)51720,452820,854521,556222,158122,959623,5
LReach (mm) (inch)37614,838315,138815,339315,540215,841216,2
MStand Over Height (mm) (inch)70627,872528,574729,477330,480031,581632,1
NHandlebar Width (mm) (inch)40015,740015,742016,542016,544017,344017,3
OStem Length (mm) (inch)803,1903,51003,91104,31104,31204,7
PCrank Length (mm) (inch)1706,71706,7172,56,8172,56,81756,91756,9
QWheel Size 700C700C700C700C700C700C
Specs
  • Marimi
    XS, S, M, M/L, L, XL
  • Culori
    Carbon, Phantom Green
  • Cadru
    Advanced-Grade Composite, disc
  • Furca
    Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
  • Tija sa
    Giant Variant, composite, -5/+15mm offset
  • Extras
    12mm axles, 32mm max tire size
  • Greutate
    Cat cantareste bicicleta? Este o intrebare uzuala si indreptatita. Adevarul este ca nu exista un standard al industriei care sa reglementeze aceasta masurare, si asta duce la multe confuzii. Variatiile au drept cauza marimile si materialul cadrului, finisajele si echiparile. Cum tendinta este spre o greutate mai redusa, fiecare astfel de detaliu conteaza. GIANT considera ca singura cale prin care poti fi sigur 100% de greutatea unei biciclete este de a solicita cantarirea ei la magazin.

Toate specificatiile enumerate se pot schimba fara notificare prealabila.

Toate specificatiile enumerate se pot schimba fara notificare prealabila.
