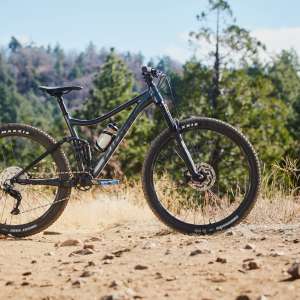

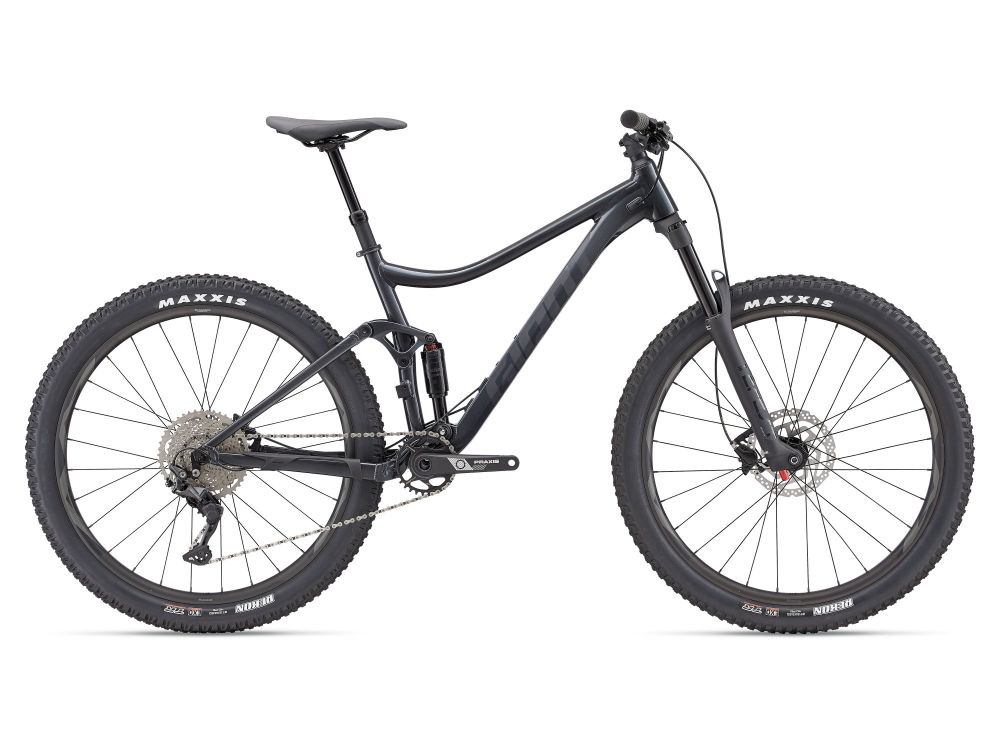

Stance
Nothing beats that feeling of being one with the trail. Stance helps you tap into it, delivering smooth control with a new aluminum frameset and 130mm of FlexPoint rear suspension featuring a new semi-integrated design. Paired with a 140mm fork and trail-ready features, including a dropper post, it’s everything you need to reach the next level.
Key Performance Factors
TRAIL-FRIENDLY CONTROL
Refined trail geometry with a slacker head tube and higher stack creates a stable, confident ride position. The new Contact Switch AT dropper post and long-post compatibility (up to 200mm) gives you room to move on descents. A wide-range 1X drivetrain, powerful 4-piston brakes, and tubeless tires deliver simple shifting, precise speed control and planted traction—so you don’t just ride the trail, you master it.
TRAIL-TUNED SUSPENSION
Re-engineered FlexPoint rear suspension with a Crest FloTrac TR shock delivers active, consistent performance through 130mm of travel. The single-pivot system boasts the lowest rear-triangle deformation in its class, while new kinematics with tailored shock spring curve deliver a more linear wheel path. The result is a smooth, predictable feel with unbeatable traction and mid-stroke support. Up front, the dual-air Giant STL 34 suspension fork smooths out rocks and roots. And our Unified Suspension Setup makes it easy to dial-in the settings.
INTEGRATED CHASSIS
A new hydroformed ALUXX aluminum chassis is engineered for strength, stiffness, and low weight. Seamless shock integration enhances frame stiffness and delivers amore connected ride feel. A smooth cockpit-to-frame transition with integrated spacers keeps the front end clean, while flush cable guides help ensure quiet performance. Convertible internal/external routing adds adaptability. The result is a sleek, precise, trail-ready frame that rides as sharp as it looks
Highlights
1
ALUXX ALUMINUM
State-of-the-art aluminum material delivers best-in-class strength-to-weight ratio. The frameset also features double-butted tubing, FluidForm shaping, and innovative welding technologies including Smooth Weld to give it a high-performance ride quality.
2

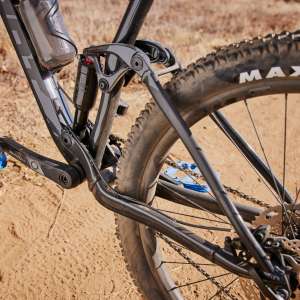

FLEXPOINT SUSPENSION
Single-pivot suspension system with 130mm of smooth, active rear travel for greater control on technical trails. Updated design results in less rear triangle deformation and higher anti-rise performance for greater chassis stability and balanced geometry under braking force.
3
CREST FLOTRAC TR SHOCK
A fully tunable rear shock that’s engineered to complement FlexPoint suspension kinematics. Featuring Triple Flow Path technology, it delivers a wide range of adjustability on spring and damping for predictable traction control without any pre-set limitations.
4

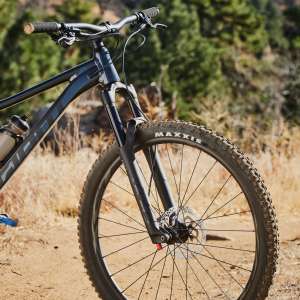

STL 34 SUSPENSION FORK
Designed for trail riding, the STL 34 uses a Twin Air spring system to deliver a sensitive, controlled, and highly tunable feel across a wide range of terrain. From early stroke compliance to supported end-stroke control, it tracks the ground and manages impacts for a smoother, more confident ride.
5
OVERDRIVE
Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/2” upper) and tapered steerer tube (1 1/2” lower and 1 1/8” upper) work in conjunction to provide optimal steering stiffness.
6
THREADED BOTTOM BRACKET
An oversized bottom bracket area features a threaded, 73mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.
7
29ER TRAIL GEOMETRY
Designed for confident trail riding, a slacker head angle (now 65 degrees) and higher stack height (now 615mm) delivers greater control and more confident handling on technical terrain.
8
DROPPER SEATPOST
Contact Switch AT dropper post lets you quickly lower your saddle for descents and technical sections. The frame is designed to allow longer posts (200mm for L and XL sizes), so you have more room to move and greater control.
9
UNIFIED SUSPENSION SETUP
Optimal air pressure and damper setting recommendations, based on rider weight, are predetermined and presented in easy-to-read graphic displays on the bike itself—one on the rear shock and one on the fork—and also online.
10
CLEAN COCKPIT
Custom headset spacers and top cap designed to match the head tube shape for a clean outlook and seamless connection between the frameset and the handlebar/stem. The head tube and headset offer convertible cable routing that allows for internal or external routing.
11
INTEGRATED FRAME KIT
Cable guides are designed to be flush with the frame, creating a streamlined look, quiet performance, and easy servicing. The frame also features integrated protection on the chainstay and underneath the down tube.
Techs & Features
ALUXX Aluminum Technology
Acest material pentru cadru de nivel de performanță are aliaj 6061 cu tuburi cu un singur cap pentru a produce seturi de cadru puternice și ușoare pentru o varietate de biciclete și stiluri de pedalat diferite.
FlexPoint Suspension Technology
Un design dovedit „cu un singur pivot” care utilizează acțiunea de flexie a joncțiunii chainstay/seatstay pentru a produce un sistem de suspensie ușor și durabil, cu 4,7 inchi/120 mm cursă pe spate.
Tubeless System
Mai puține cauciucuri cu pana. Tracțiune mai mare. Mai puțină rezistență la rulare și o călătorie mai lină și mai rapidă. Sistemul Giant Tubeless face mai ușor ca niciodată să experimentați toate aceste beneficii.
OverDrive
Tehnologia originală a tubului de direcție a furcii supradimensionate de la Giant. Conceput pentru a oferi performanțe precise de direcție frontală, rulmenții supradimensionați ai sistemului cu cască (1 1/4” inferioare și 1 1/8” în sus pentru drum, 1 1/2” în jos și 1 1/8” în sus pentru munte) și conici. Tubul de direcție funcționează împreună pentru a oferi o rigiditate optimă a direcției.
Ghid de marimi si Geometrii
Marimile prezentate mai jos sunt numai de referinta. Pentru alegerea unei marimi corecte este necesar sa vizitati un Dealer Giant sau Liv, sau sa cereti consultanta online.
- XS
- 155 cm5’1”
166 cm5’5”
- S
- 163 cm5’4” 172 cm5’8”
- M
- 171 cm5’7” 180 cm5’11”
- L
- 179 cm5’10” 188 cm6’2”
- XL
- 187 cm6’2” 198 cm6’6”
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 38015 | 40015,7 | 42516,7 | 45017,7 | 47518,7 |
| A1 Seat Post Insertion Depth (mm) (inch) | 2509,8 | 27010,6 | 29011,4 | 32012,6 | 39015,4 |
| B Seat Tube Angle (degrees) | 77,0° | 76,5° | 76,5° | 76,5° | 76,5° |
| C Top Tube Length (mm) (inch) | 54721,5 | 56722,3 | 60023,6 | 62724,7 | 65925,9 |
| D Head Tube Length (mm) (inch) | 953,7 | 1003,9 | 1104,3 | 1204,7 | 1305,1 |
| E Head Tube Angle (degrees) | 65,0° | 65,0° | 65,0° | 65,0° | 65,0° |
| F Fork Rake (mm) (inch) | 441,7 | 441,7 | 441,7 | 441,7 | 441,7 |
| G Trail (mm) (inch) | 1295,1 | 1295,1 | 1295,1 | 1295,1 | 1295,1 |
| H Wheelbase (mm) (inch) | 115845,6 | 117646,3 | 121047,6 | 123948,8 | 127450,2 |
| I Chain Stay Length (mm) (inch) | 44017,3 | 44217,4 | 44217,4 | 44217,4 | 44217,4 |
| J Bottom Bracket Drop (mm) (inch) | 251 | 401,6 | 401,6 | 401,6 | 401,6 |
| K Stack (mm) (inch) | 61324,1 | 61524,2 | 62424,6 | 63324,9 | 64225,3 |
| L Reach (mm) (inch) | 40515,9 | 42016,5 | 45017,7 | 47518,7 | 50519,9 |
| M Stand Over Height (mm) (inch) | 75829,8 | 75429,7 | 74829,4 | 74429,3 | 73829,1 |
| N Handlebar Width (mm) (inch) | 76029,9 | 76029,9 | 76029,9 | 78030,7 | 78030,7 |
| O Stem Length (mm) (inch) | 401,6 | 401,6 | 401,6 | 401,6 | 401,6 |
| P Crank Length (mm) (inch) | 1656,5 | 1656,5 | 1656,5 | 1656,5 | 1656,5 |
| Q Wheel Size | 29" [F] 27.5" [R] | 29" | 29" | 29" | 29" |
Toate specificatiile enumerate se pot schimba fara notificare prealabila.
