Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimize each tube shape to deliver superior aerodynamic performance.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

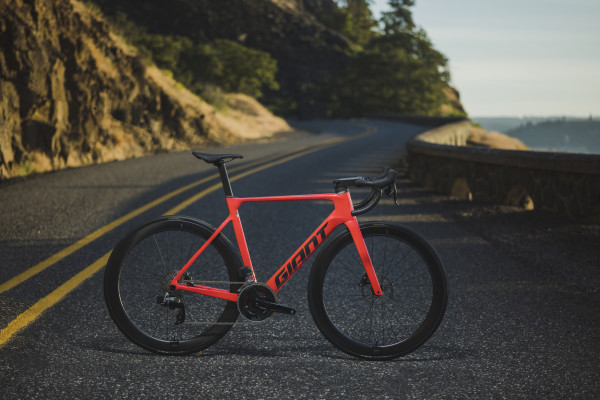

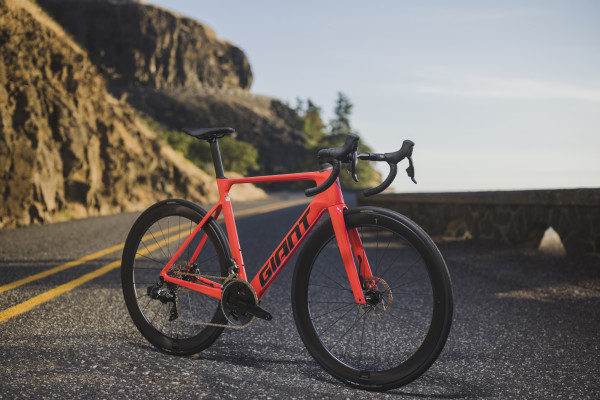

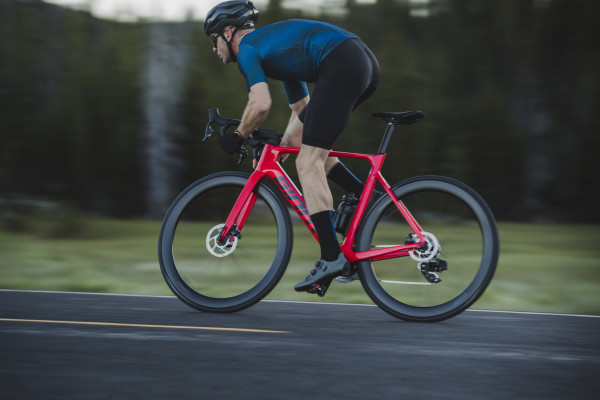

Propel Advanced Pro 1
Now even faster, this aero rocketship is built for speed when it matters most. The reengineered frameset is even more adept at slicing through wind, and it’s also lighter than the previous generation. The result? Race-winning efficiency that’s hard to beat.
Key Performance Factors
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR/SL Aero cockpit produce the best overall aero performance.
Easier adjustability
All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning efficiency
Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s now lighter than the previous generation for an improved stiffness-to-weight ratio.
Highlights of the Propel Advanced Pro Aero Bike
With a frame that’s handcrafted using Advanced-grade composite, and components that are integrated for overall aero performance, the all-new Propel Advanced Pro boasts smooth lines front to back. The handlebar and frame feature internal cable routing that now allows for easier adjustability. The WheelSystem uses 50mm deep rims for the perfect balance between maximum aero performance and added control. Even the disc brakes are integrated with the frame, featuring flat-mount calipers and thru-axles.
1
AeroSystem Shaping
2
Advanced Composite
High-performance grade raw carbon material is used to produce this custom material in our own composite factory with a high stiffness-to-weight ratio.
3

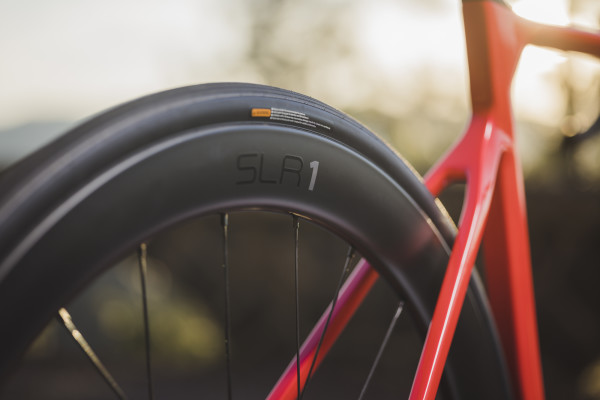

Aero Tubeless WheelSystem
Engineered with proprietary Dynamic Balanced Lacing technology, this composite aero WheelSystem and tubeless tires deliver superior efficiency, pinpoint control and superior aerodynamics.
4

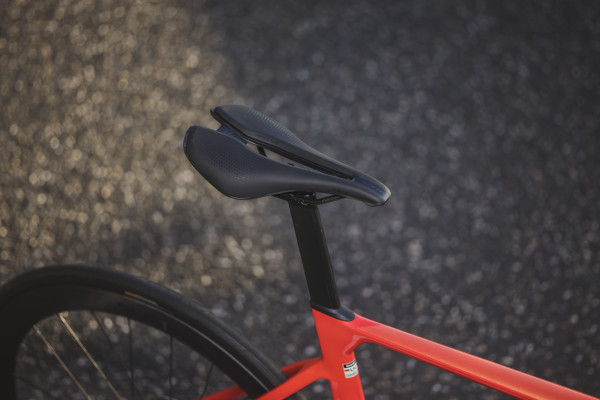

Vector Seatpost
This full-composite, lightweight and aerodynamic seatpost is engineered specifically for performance road riding.
5

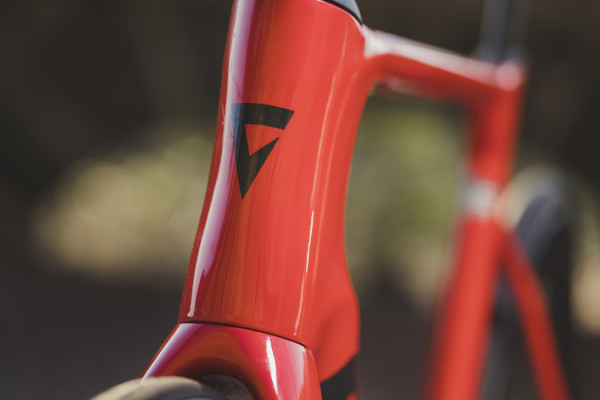

OverDrive Aero
Found inside the head tube of the all-new Propel range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
6
Full Composite Fork
D-shaped steerer tube and legs are constructed entirely from Giant’s Advanced SL-grade composite for the lightest weight and superior handling.
7
PowerCore
A massively oversized bottom bracket area features a fully integrated 86.5mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
8
New Cable Routing
Frame and handlebar feature all-new cable porting for sleek, non-cluttered appearance and easier adjustability.
9
Disc-brake Integration
The frame and fork are engineered specifically for flat-mount disc-brakes, including front and rear 12mm thru-axles for reliable braking performance in all weather and road conditions.
10

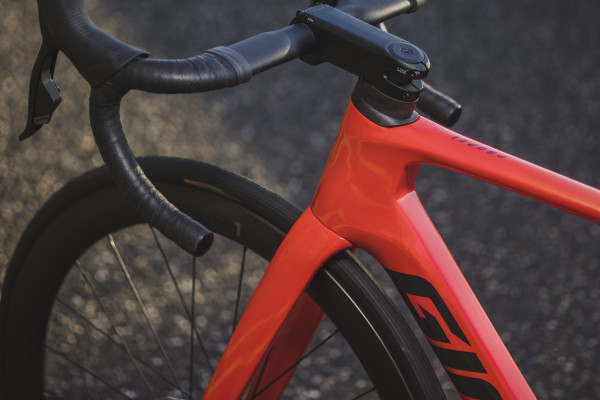

Aero Handlebar/Stem
Aero handlebar and stem are designed to reduce overall drag while minimizing weight.
11
Aero Bottle Cages
Custom-engineered down tube and seat tube-specific water bottle cages help minimize overall aerodynamic drag.
Techs & Features
Tehnologie avansată pentru manufacturarea carbonului
Pentru a produce aceste tipuri de cadru este folosit carbon de înaltă performanță Giant în propria noastră fabrică, cu un raport ridicat de rigiditate / greutate. Triunghiul acestor cadre este asamblat și turnat ca o singură piesă continuă într-un proces de fabricație specific Giant, numit Modified Monocoque Construction.
AeroSystem Shaping Technology
Prin CFD (Computational Fluid Dynamics) și datele din tunelul de vânt, inginerii optimizează fiecare formă de tub pentru a oferi performanțe aerodinamice superioare.
Tubeless System
Mai puține cauciucuri cu pana. Tracțiune mai mare. Mai puțină rezistență la rulare și o călătorie mai lină și mai rapidă. Sistemul Giant Tubeless face mai ușor ca niciodată să experimentați toate aceste beneficii.
OverDrive Aero
Found inside the head tube of the Defy, Propel and TCR ranges, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
PowerCore
O zonă masiv supradimensionată a pedalierului/lantului are un design de pedalier complet integrat, lățime de 86 de milimetri (lățime de 92 de milimetri pentru bicicletele off-road). Chainstays asimetrice oferă o rigiditate suplimentară pe partea de rulare și stabilitate pe partea din afara vehiculului.
Vector Seatpost
Această tijă de șa complet compozită, ușoară și foarte aerodinamică este concepută special pentru performanța călăriei pe șosea.
RideSense Ready
Acest cadru vine pregătit pentru a accepta senzorul Giant RideSense și hardware-ul însoțitor.
Power Halo
Antrenamentul de putere nu ar trebui să fie un mister care trebuie rezolvat doar de profesioniști cu echipamente scumpe. Ușor de configurat, ușor de utilizat și ușor de citit, noul Power Halo oferă tuturor cicliștilor antrenament bazat pe metric.
Ghid de marimi si Geometrii
Marimile prezentate mai jos sunt numai de referinta. Pentru alegerea unei marimi corecte este necesar sa vizitati un Dealer Giant sau Liv, sau sa cereti consultanta online.
- XS
- 157 cm5’2”
169 cm5’7”
- S
- 165 cm5’5” 175 cm5’9”
- M
- 171 cm5’7” 181 cm5’11”
- ML
- 177 cm5’10” 187 cm6’2”
- L
- 183 cm6’0” 193 cm6’4”
- XL
- 189 cm6’2” 199 cm6’6”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 46518,3 | 50019,7 | 52020,5 | 54521,5 | 57522,6 | 59523,4 |
| B | Seat Tube Angle (degrees) | 74,5° | 74,0° | 73,5° | 73,0° | 73,0° | 72,5° |
| C | Top Tube Length (mm) (inch) | 52020,5 | 53521,1 | 55021,7 | 56522,2 | 58022,8 | 60023,6 |
| D | Head Tube Length (mm) (inch) | 1204,7 | 1305,1 | 1455,7 | 1656,5 | 1857,3 | 2007,9 |
| E | Head Tube Angle (degrees) | 71,0° | 72,3° | 73,0° | 73,0° | 73,0° | 73,0° |
| F | Fork Rake (mm) (inch) | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 |
| G | Trail (mm) (inch) | 70,52,8 | 62,52,4 | 57,82,2 | 57,82,2 | 57,82,2 | 57,82,2 |
| H | Wheelbase (mm) (inch) | 97638,4 | 97738,5 | 98038,6 | 99139 | 100639,6 | 102040,2 |
| I | Chain Stay Length (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J | Bottom Bracket Drop (mm) (inch) | 722,8 | 702,8 | 702,8 | 672,6 | 672,6 | 672,6 |
| K | Stack (mm) (inch) | 51720,4 | 52820,8 | 54521,5 | 56222,1 | 58122,9 | 59623,5 |
| L | Reach (mm) (inch) | 37614,8 | 38315,1 | 38815,3 | 39315,5 | 40215,8 | 41216,2 |
| M | Stand Over Height (mm) (inch) | 72228,4 | 75329,6 | 77030,3 | 79431,3 | 82132,3 | 83432,8 |
| N | Handlebar Width (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 | 44017,3 | 44017,3 |
| O | Stem Length (mm) (inch) | 803,1 | 903,5 | 1003,9 | 1104,3 | 1104,3 | 1204,7 |
| P | Crank Length (mm) (inch) | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 | 1756,9 | 1756,9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Toate specificatiile enumerate se pot schimba fara notificare prealabila.
