COMPARE

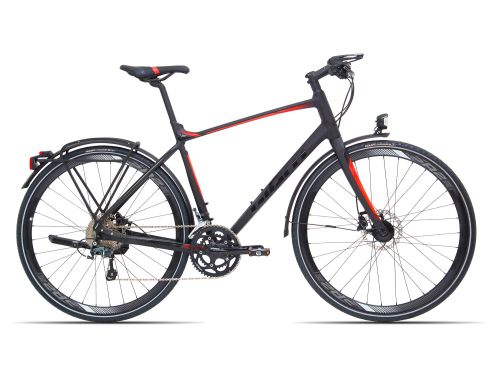

FastTour RS 2
2018
- ALUXX SL-grade aluminium frame
- Advanced-grade composite fork
- Shimano Tiagra 2x10 speed drivetrain components
- Shimano M365 hydraulic disc brakes
- Giant S-R2 Disc wheelset with tubeless tires
- Color: Black/Red
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
| M | L | XL | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 49019,3 | 52020,5 | 55021,7 |
| B | Seat Tube Angle (degrees) | 73,0° | 72,5° | 72,0° |
| C | Top Tube Length (mm) (inch) | 57522,6 | 59523,4 | 61524,2 |
| D | Head Tube Length (mm) (inch) | 1656,5 | 1857,3 | 2058,1 |
| E | Head Tube Angle (degrees) | 70,0° | 70,0° | 70,0° |
| F | Fork Rake (mm) (inch) | 451,8 | 451,8 | 451,8 |
| G | Trail (mm) (inch) | 783,1 | 783,1 | 783,1 |
| H | Wheelbase (mm) (inch) | 107642,4 | 109143 | 110643,5 |
| I | Chain Stay Length (mm) (inch) | 45017,7 | 45017,7 | 45017,7 |
| J | Bottom Bracket Drop (mm) (inch) | 702,8 | 702,8 | 702,8 |
| K | Stack (mm) (inch) | 58122,9 | 60023,6 | 61424,2 |
| L | Reach (mm) (inch) | 39715,6 | 40616 | 41616,4 |
| M | Stand Over Height (mm) (inch) | 73428,9 | 75829,8 | 78330,8 |
| N | Handlebar Width (mm) (inch) | 62024,4 | 62024,4 | 62024,4 |
| O | Stem Length (mm) (inch) | 1003,9 | 1104,3 | 1104,3 |
| P | Crank Length (mm) (inch) | 1706,7 | 1756,9 | 1756,9 |
| Q | Wheel Size | 700C | 700C | 700C |
Toate specificatiile enumerate se pot schimba fara notificare prealabila.
