AllTour SLR 2

2019

What is my size?

Share

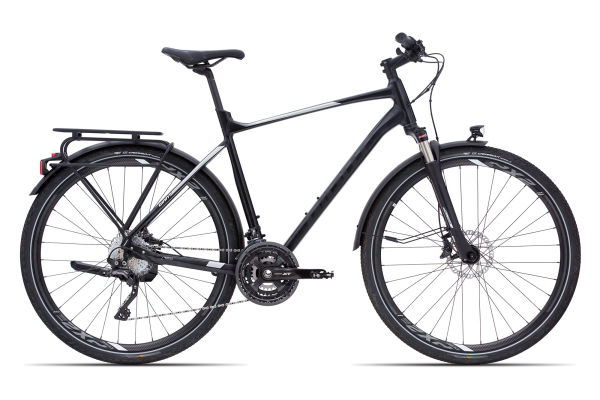

GO LONG, FO FAR. GO BEYOND THE USUAL LIMITS. THIS NEW TREKKING BIKE IS YOUR ADVENTURE COMPANION.

The lightweight ALUXX SLR frame produces an efficient and comfortable ride. The composite fork and D-Fuse seatpost add compliance and reduce the road vibrations that cause fatigue on long rides. Every component and accessory has been chosen specifically for long-distance or multi-day rides. From the comfortable Giant Contact saddle to the tubeless wheels and tires, it’s all about efficiency, dependability and comfort. And special integrated accessories, including customizable rack mounts and a Busch & Muller light system, make this AllTour the perfect trekking companion.

Download PDF

MarimiM, L, XL
CuloriDark Blue / Black / Blue
CadruALUXX SLR-Grade Aluminum
FurcaSR Suntour NCX D-LO air 700C, 63mm travel
SocN/A
GhidonGiant Connect, low, 31.8mm
PipaGiant Connect, ± 8 -degree, 31.8
Tija saGiant D-Fuse, composite
SaContact Comfort (neutral)
PedaleN/A
Manete schimbatorShimano Alivio
Schimbator fataShimano Alivio
Schimbator spateShimano Alvio
FraneShimano MT201
PinioaneShimano HG300, 11x34
LantKMC X9 with Missing Link
AngrenajShimano T3010, 26x36x48
Bottom BracketShimano BB ES300
JanteGiant S-X2 700C wheelset
Butucifront hub DH-3D32 (32 hole) rear Hub GDC-1022 (32 hole)
Spitestainless, 14G
AnvelopeCrossCut Gravel 2 tubeless tire,700x45C.
GreutateCat cantareste bicicleta? Este o intrebare uzuala si indreptatita. Adevarul este ca nu exista un standard al industriei care sa reglementeze aceasta masurare, si asta duce la multe confuzii. Variatiile au drept cauza marimile si materialul cadrului, finisajele si echiparile. Cum tendinta este spre o greutate mai redusa, fiecare astfel de detaliu conteaza. GIANT considera ca singura cale prin care poti fi sigur 100% de greutatea unei biciclete este de a solicita cantarirea ei la magazin.

Toate specificatiile enumerate se pot schimba fara notificare prealabila.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

M   170 cm5’7” 180 cm5’11”
L   180 cm5’11” 190 cm6’3”
XL   190 cm6’3” 200 cm6’7”
  MLXL
BSeat Tube Angle (degrees)73,0°73,0°73,0°
CTop Tube Length (mm) (inch)58022,860023,662024,4
DHead Tube Length (mm) (inch)1305,11455,71606,3
EHead Tube Angle (degrees)71,0°71,0°71,0°
HWheelbase (mm) (inch)107842,4109943,3111944,1
IChain Stay Length (mm) (inch)45517,945517,945517,9
KStack (mm) (inch)61124,162524,663925,2
LReach (mm) (inch)39315,540916,142516,7
MStand Over Height (mm) (inch)77130,481031,985033,5
PCrank Length (mm) (inch)1706,71756,91756,9

Toate specificatiile enumerate se pot schimba fara notificare prealabila.
