High Performance-Grade raw carbon fiber and Giant’s proprietary resin formula are used to produce custom composite material in our own composite factory. Extremely lightweight, stiff and compliant.
Galeria
Highlights

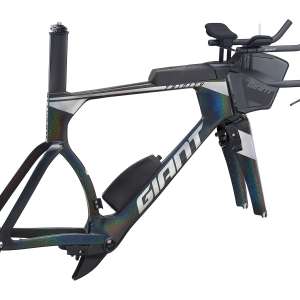

Designed using Computational Fluid Dynamics and dynamic wind-tunnel testing, the Trinity Advanced Pro delivers a proven aerodynamic advantage. Handcrafted from premium Advanced-grade composite and meticulously formed with AeroSystem Shaping Technology, this is the choice of Giant pro triathletes including Ironman 70.3 World Champion Gustav Iden. It offers a comfortable fit for long distance training and racing nd its unique AeroVault system includes an integrated front hydration unit, top tube storage box and downtube water bottle that, together, actually improve the bike’s aero performance on the road.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 160 cm5’3”
172 cm5’8”
- S
- 166 cm5’5” 178 cm5’10”
- M
- 172 cm5’8” 184 cm6’0”
- L
- 179 cm5’10” 193 cm6’4”
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 46018,1 | 49019,3 | 51520,3 | 54521,5 |
| B | Seat Tube Angle (degrees) | 77,0° | 77,0° | 77,0° | 77,0° |
| C | Top Tube Length (mm) (inch) | 50920 | 52820,8 | 54121,3 | 55421,8 |
| D | Head Tube Length (mm) (inch) | 803,1 | 1104,3 | 1405,5 | 1706,7 |
| E | Head Tube Angle (degrees) | 73,0° | 73,0° | 73,0° | 73,0° |
| F | Fork Rake (mm) (inch) | 401,6 | 401,6 | 401,6 | 401,6 |
| G | Trail (mm) (inch) | 612,4 | 612,4 | 612,4 | 612,4 |
| H | Wheelbase (mm) (inch) | 96738,1 | 98838,9 | 100339,5 | 101840,1 |
| I | Comprimento Chain Stay (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J | Suporte inferior (mm) (inch) | 652,6 | 652,6 | 652,6 | 652,6 |
| K | Stack (mm) (inch) | 48219 | 51020,1 | 53921,2 | 56822,4 |
| L | Reach (mm) (inch) | 39815,7 | 41016,1 | 41716,4 | 42316,7 |
| M | Stand Over Height (mm) (inch) | 74229,2 | 76730,2 | 79031,1 | 83632,9 |
| N | Handlebar Width (mm) (inch) | 40015,7 | 40015,7 | 40015,7 | 40015,7 |
| O | Stem Length (mm) (inch) | 803,1 | 803,1 | 803,1 | 803,1 |
| P | Crank Length (mm) (inch) | 1656,5 | 1706,7 | 172,56,8 | 1756,9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
| R | Arm Pad Stack | 550~600mm | 580~630mm | 610~660mm | 640~690mm |
| S | Arm Pad Reach | 443~503mm | 455~515mm | 462~532mm | 468~538mm |
Todas as especificações apresentadas estão sujeitas a alterações sem aviso prévio.
