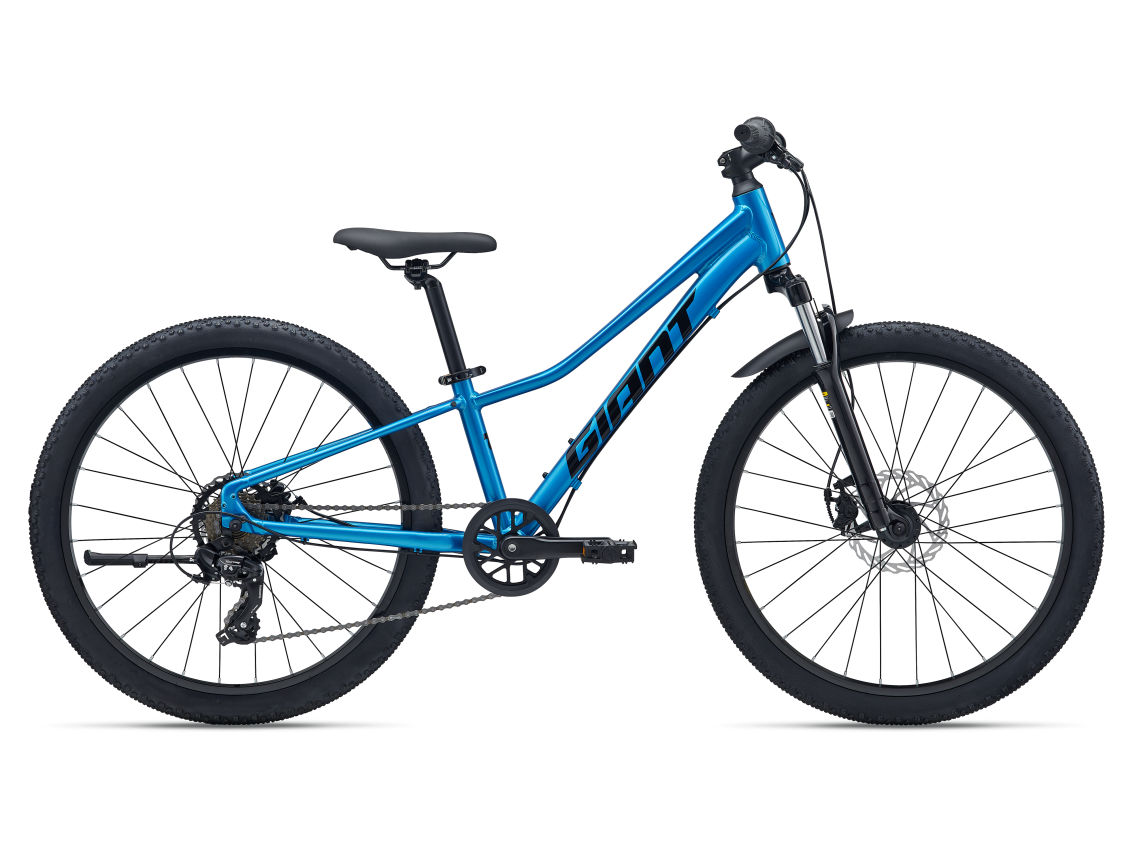

Talon 24 Disc
399 €
From neighborhood adventures to family trail outings, this built-for-kids mountain bike makes it easy for young riders. The frame design and components inspire confidence and control, helping them develop their off-road skills.
Key Performance Factors
Off-road control
A shorter seat tube with a lower bottom bracket and standover height creates a lower center of gravity with greater stability and maneuverability on dirt paths and trails. Select models come with a 50mm suspension fork for added control on bumpy terrain.
Kid-sized components
Smaller-diameter handlebars (25mm) and short-reach brake levers offer better grip and control for smaller hands. Shorter cranks ensure smooth pedaling and prevent the pedals from hitting the ground while cornering.
All the accessories
A kickstand, mini-fender and bell make Talon 24 a fun and easy bike for everyday rides around the neighborhood.
Guia de dimensionamento e geometria
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- One Size
- 130 cm4’3”
150 cm4’11”
| One Size | |
|---|---|
| A Comprimento do tubo do assento (mm) (inch) | 27010,6 |
| B Ângulo do tubo do assento (degrees) | 72,0° |
| C Comprimento do tubo superior (mm) (inch) | 52020,5 |
| D Comprimento do tubo principal (mm) (inch) | 1204,7 |
| E Ângulo do tubo principal (degrees) | 70,0° |
| F Garfo ancinho (mm) (inch) | 401,6 |
| G Trilha (mm) (inch) | 69,52,7 |
| H distância entre eixos (mm) (inch) | 976,938,4 |
| I Comprimento Chain Stay (mm) (inch) | 41016,1 |
| J Suporte inferior (mm) (inch) | 401,6 |
| K Pilha (mm) (inch) | 533,821 |
| L Alcançar (mm) (inch) | 346,613,6 |
| M Altura do standover (mm) (inch) | 547,421,5 |
| N Largura do guidão (mm) (inch) | 56022 |
| O Comprimento da haste (mm) (inch) | 602,4 |
| P Comprimento da Manivela (mm) (inch) | 1405,5 |
| Q Tamanho da roda | 24 |
Todas as especificações apresentadas estão sujeitas a alterações sem aviso prévio.
