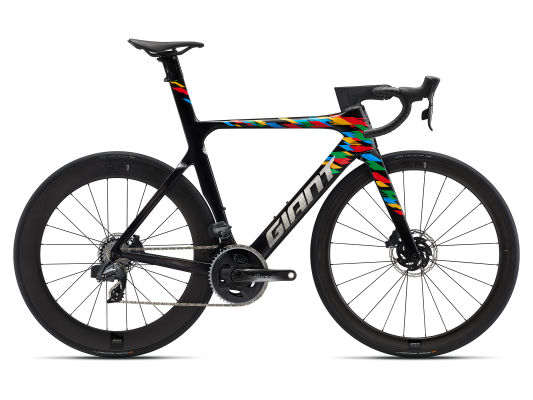

Propel Advanced SL Disc 1 LTD

2022

6 999 €

Highlights

There's only one bike in the world that's fast enough for Kristian Blummenfelt. The Olympic gold medalist is meticulous about gear, and this limited edition Propel Advanced SL Disc LTD delivers the race-winning performance he demands. It’s engineered with Giant’s AeroSystem Shaping technology, which means every tube shape and angle is optimized for minimal drag. These tubes feature a truncated ellipse shape that is ultra-stiff, superlight and designed to save watts by slicing through the wind. The bike features special graphics with inspiration from the shippo pattern, a common design in Japanese art and fashion. The overlapping circles and shapes symbolize harmony and happiness, and the five colors combine to convey a sense of motion and speed in the pursuit of victory.

Propel Advanced SL Disc LTD with interactive tooltips

Techs & Features

Advanced SL Composite Technology
AeroSystem Shaping Technology
Integrated Seatpost
OverDrive 2
RideSense Ready
Tubeless System

Guia de dimensionamento e geometria

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLL
AComprimento do tubo do assento (mm) (inch)68026,87102874029,177030,379031,1
BÂngulo do tubo do assento (degrees)74,5°73,5°73,0°73,0°73,0°
CComprimento do tubo superior (mm) (inch)51520,353521,155021,757022,458022,8
DComprimento do tubo principal (mm) (inch)1204,71305,11455,71656,51857,3
EÂngulo do tubo principal (degrees)71,0°72,5°73,0°73,0°73,0°
FGarfo ancinho (mm) (inch)451,8451,8451,8451,8451,8
GTrilha (mm) (inch)702,8602,4572,2572,2572,2
Hdistância entre eixos (mm) (inch)97238,397038,297638,499739,3100739,6
IComprimento Chain Stay (mm) (inch)40515,940515,940515,940515,940515,9
JSuporte inferior (mm) (inch)702,8682,7682,7652,6652,6
KPilha (mm) (inch)51720,452920,854521,556222,158122,9
LAlcançar (mm) (inch)37214,637814,938315,139815,740215,8
MAltura do standover (mm) (inch)74429,376930,37873180731,882932,6
NLargura do guidão (mm) (inch)40015,740015,742016,542016,544017,3
OComprimento da haste (mm) (inch)803,1903,51003,91104,31104,3
PComprimento da Manivela (mm) (inch)1706,71706,7172,56,8172,56,81756,9
QTamanho da roda 700C700C700C700C700C
Specs
  • Tamanhos
    XS, S, M, M/L, L, XL
  • Cores
    Limited Edition
  • Quadro
    Advanced SL-Grade Composite, integrated seatpost, disc
  • Forquilha
    Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
  • Amortecedores
    N/A
  • Guiador
    Giant Contact SLR Aero XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
  • Punhos
    Stratus Lite 2.0
  • Avanço
    Giant Contact SL Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
  • Espigão de selim
    Advanced SL-Grade composite, integrated design, -5/+15mm offset
  • Selim
    Giant Fleet SLR
  • Pedais
    N/A
  • Manetes
    SRAM Force eTap AXS
  • Desviador dianteiro
    SRAM Force eTap AXS
  • Desviador traseiro
    SRAM Force eTap AXS
  • Travões
    SRAM Force eTap AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm
  • Manípulos dos travões
    SRAM Force eTap AXS hydraulic
  • Cassete
    SRAM Force, 12-speed, 10x28
  • Corrente
    SRAM Force D1
  • Conjunto pedaleiro
    SRAM Force D1 DUB, 35/48 with Quarq DZero power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Movimento Central
    SRAM DUB, press fit
  • Aros
    Giant SLR 1 Carbon Disc WheelSystem, [F]42mm, [R]65mm
  • Cubos
    Giant SLR 1 Carbon Disc WheelSystem, 12mm thru-axle
  • Raios
    Giant SLR 1 Carbon Disc WheelSystem
  • Pneus
    CADEX Race 25, tubeless,700x25c (26.5mm), folding
  • Extras
    computer mount, tubeless prepared, 28mm max tire size
  • Peso
    Quanto pesa esta bicicleta? Esta é uma pergunta comum e importante. Mas a verdade é que não existem normas da indústria que permitam comparar o peso de uma bicicleta entre marcas o que faz com que haja muita informação errada. Existem diferenças em termos de tamanho, material utilizado no quadro, acabamentos e peças. E à medida que as bicicletas se tornam mais leves, maiores são essas diferenças. Na Giant, acreditamos que a única maneira de se saber realmente o peso de uma bicicleta é informar-se no seu revendedor local.

Todas as especificações apresentadas estão sujeitas a alterações sem aviso prévio.
