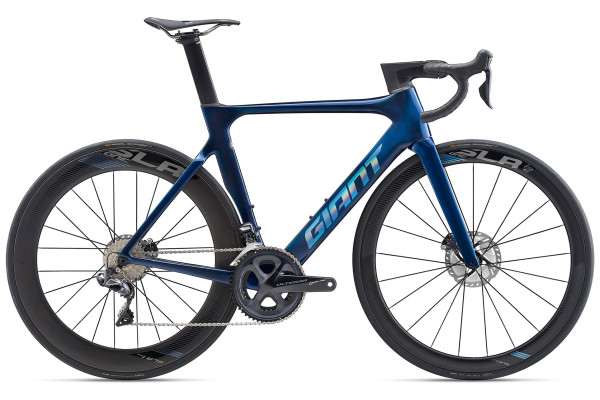

Propel Advanced Pro 1 Disc

2020

€ 5.600

What is my size?

Share

Lightweight, efficient and nearly invisible to the wind, this composite road machine offers a true advantage for sprinting and solo riding. And with integrated disc-brake technology, you have more control for chaotic sprints and descents.

Meticulously developed for best-in-class aero road performance, this razor-sharp road racer offers a true advantage for sprinting and solo riding. The frame is handcrafted using Advanced-grade composite material to produce a bike that’s lightweight and stiff, with a sharp, responsive ride quality. Its disc brakes are completely integrated within the frame using flat-mount calipers and thru-axles designed to optimize the technology. From sprints to solo attacks, cornering and descents, the new Propel Advanced Pro Disc helps you slice through the wind and gain an advantage on the competition.

Key Performance Factors

Integrated aerodynamics

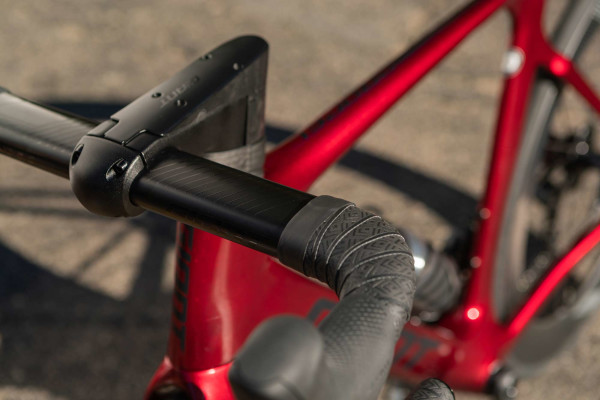

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR/SL Aero cockpit produce the best overall aero performance.

Total control

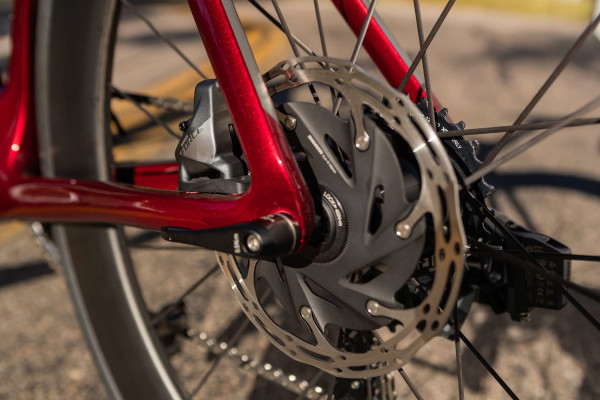

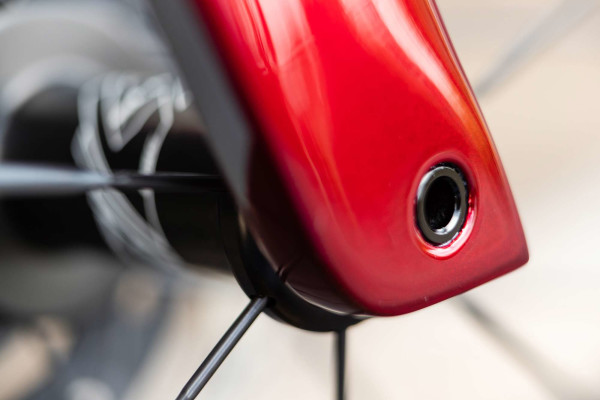

Integrated disc brakes deliver powerful stopping power and modulation for added control in variable weather. Flat mounts and thru-axles boost stiffness and improve overall handling, and an integrated WheelSystem with a 65mm rear rim and shallower 42mm front rim optimizes aerodynamics and control.

Unrivaled efficiency

Advanced-grade composite frameset features high-performance materials and Giant manufacturing processes for optimized stiffness and the lowest weight in its category.

Download PDF

TamanhosXS, S, M, ML, L, XL
CoresMetallic Navy / Iris / Reflective Black
QuadroAdvanced-Grade Composite, disc
ForquilhaAdvanced-Grade Composite, full-composite OverDrive 2 steerer, disc
AmortecedoresN/A
GuiadorGiant Contact SLR Aero
AvançoGiant Contact SL Aero
Espigão de selimGiant Vector, composite
SelimGiant Contact SL (forward)
PedaisN/A
ManetesShimano Ultegra Di2
Desviador dianteiroShimano Ultegra Di2
Desviador traseiroShimano Ultegra Di2
TravõesShimano Ultegra hydraulic
Manípulos dos travõesShimano Ultegra hydraulic
CasseteShimano Ultegra, 11x30
CorrenteKMC X11SL-1
Conjunto pedaleiroShimano Ultegra, 36/52with Giant Power Pro power meter
Bottom BracketShimano, press fit
ArosGiant SLR 1 Aero Disc Composite WheelSystem ( F:42mm, R:65mm)
CubosGiant SLR 1 Aero Disc WheelSystem, 12mm thru-axle
RaiosGiant SLR 1 Aero Disc WheelSystem
PneusCADEX Race 25, tubeless,700x25,, folding
ExtrasRideSense Bluetooth
PesoQuanto pesa esta bicicleta? Esta é uma pergunta comum e importante. Mas a verdade é que não existem normas da indústria que permitam comparar o peso de uma bicicleta entre marcas o que faz com que haja muita informação errada. Existem diferenças em termos de tamanho, material utilizado no quadro, acabamentos e peças. E à medida que as bicicletas se tornam mais leves, maiores são essas diferenças. Na Giant, acreditamos que a única maneira de se saber realmente o peso de uma bicicleta é informar-se no seu revendedor local.

Todas as especificações apresentadas estão sujeitas a alterações sem aviso prévio.

Highlights

Meticulously developed for best-in-class aero road performance, this razor-sharp road racer offers a true advantage for sprinting and solo riding. The frame is handcrafted using Advanced-grade composite material to produce a bike that’s lightweight and stiff, with a sharp, responsive ride quality. Its disc brakes are completely integrated within the frame using flat-mount calipers and thru-axles designed to optimize the technology. From sprints to solo attacks, cornering and descents, the new Propel Advanced Pro Disc helps you slice through the wind and gain an advantage on the competition.

1 2 3 4 5 6 7 8 9 10

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

XS   157 cm5’2”  to 169 cm5’7”
S   165 cm5’5”  to 175 cm5’9”
M   171 cm5’7”  to 181 cm5’11”
ML   177 cm5’10”  to 187 cm6’2”
L   183 cm6’0”  to 193 cm6’4”
XL   189 cm6’2”  to 199 cm6’6”
bike diagram
  XSSMMLLXL
Seat Tube Length (mm) (inch)46518,350019,752020,554521,557522,659523,4
Seat Tube Angle (degrees)74,5°73,5°73,0°73,0°73,0°72,0°
Top Tube Length (mm) (inch)51520,353521,155021,757022,458022,860523,8
Head Tube Length (mm) (inch)1204,71305,11455,71656,51857,32007,9
Head Tube Angle (degrees)71,0°72,5°73,0°73,0°73,0°73,0°
Fork Rake (mm) (inch)451,8451,8451,8451,8451,8451,8
Trail (mm) (inch)702,8602,4572,2572,2572,2572,2
Wheelbase (mm) (inch)97238,397038,297638,499739,3100739,6102140,2
Comprimento Chain Stay (mm) (inch)40515,940515,940515,940515,940515,940515,9
Suporte inferior (mm) (inch)702,8682,7682,7652,6652,6652,6
Stack (mm) (inch)51720,452920,854521,556222,158122,959523,4
Reach (mm) (inch)37214,637814,938315,139815,740215,841216,2
Stand Over Height (mm) (inch)74429,376930,37873180731,882932,684333,2
Handlebar Width (mm) (inch)40015,740015,742016,542016,544017,344017,3
Stem Length (mm) (inch)803,1903,51003,91104,31104,31204,7
Crank Length (mm) (inch)1706,71706,7172,56,8172,56,81756,91756,9
Wheel Size 700C700C700C700C700C700C
