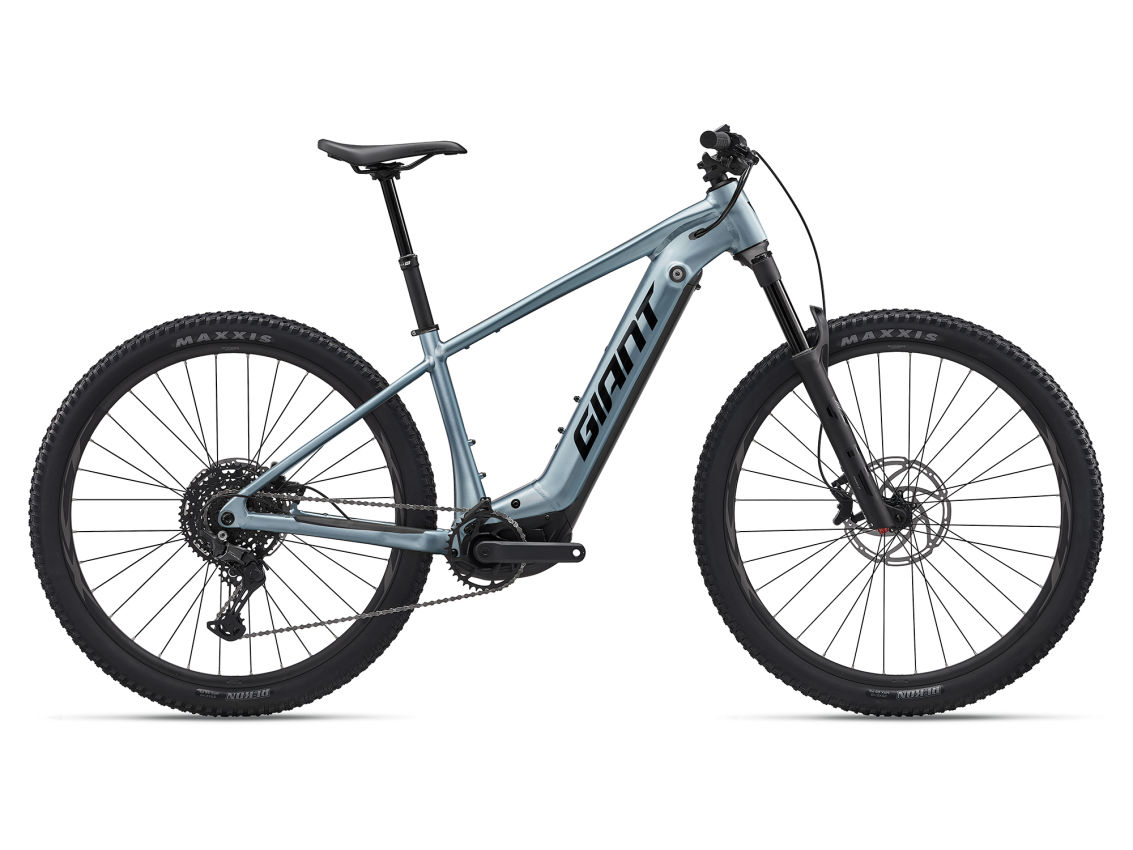

Fathom E+ 1

Current price: 3 199,00 €

Take control of the trail with this fun new hardtail E-bike. Now you can climb with greater ease and ride farther—the perfect formula for a great day on the trail.

Key Performance Factors

POWER TO PUSH FURTHER

The new SyncDrive Pro 3X motor delivers strong, instantaneous power with 100Nm of torque, helping you attack climbs, hold momentum and level up your trail riding capabilities.

BALANCED, CONFIDENT HANDLING

A lightweight aluminum frame with trail-friendly geometry, 130mm of front suspension, and stable 29-inch wheels helps you tame challenging off-road terrain.

RANGE TO RIDE FURTHER

An integrated 800Wh EnergyPak Smart battery delivers the range and power needed for high-output trail rides. It charges quickly, up to 80 percent in less than 4 hours using the 4A Smart Charger.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak 800 / SyncDrive Sport3X 100Nm

  • Range
  • Extreme: 108 km 67 miles
  • Good: 164 km 101 miles
  • Ideal: 214 km 132 miles

Techs & Features

ALUXX SL Aluminum Technology
Energypak
EnergyPak Plus
RideControl Dash
Smart Assist
SyncDrive Pro 3X

Guia de dimensionamento e geometria

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      162 cm5’4”  to 172 cm5’8”
  • M
      169 cm5’7”  to 179 cm5’10”
  • L
      176 cm5’9”  to 186 cm6’1”
  • XL
      183 cm6’0”  to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXL
A Comprimento do tubo do assento (mm) (inch)3801542016,546018,149519,5
B Ângulo do tubo do assento (degrees)75,0°75,0°75,0°75,0°
C Comprimento do tubo superior (mm) (inch)59023,26102463024,865025,6
D Comprimento do tubo principal (mm) (inch)1104,31204,71305,11405,5
E Ângulo do tubo principal (degrees)66,0°66,0°66,0°66,0°
F Garfo ancinho (mm) (inch)512512512512
G Trilha (mm) (inch)113,54,4113,54,4113,54,4113,54,4
H distância entre eixos (mm) (inch)119747,1121948124148,9126249,7
I Comprimento Chain Stay (mm) (inch)47018,547018,547018,547018,5
J Suporte inferior (mm) (inch)652,6652,6652,6652,6
K Pilha (mm) (inch)64725,565625,866526,267426,5
L Alcançar (mm) (inch)41616,443417,145117,846918,5
M Altura do standover (mm) (inch)73028,775729,875029,577330,4
N Largura do guidão (mm) (inch)75029,575029,578030,778030,7
O Comprimento da haste (mm) (inch)502502502502
Q Tamanho da roda 29"29"29"29"
Specs
  • Motor
    Giant SyncDrive Pro 3X 100Nm, PedalPlus 6-Sensor technology
  • Sensor
    Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
  • Ecrã
    Giant RideControl Dash 2, high-angle visibility, full color LCD display
  • Bateria
    Giant EnergyPak Smart 800Wh
  • Carregador
    Giant EnergyPak smart charger 4A
  • Connectivity
    Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
  • Quadro
    ALUXX-grade aluminium, OverDrive, 148x12mm thru-axle, integrated KSA40 kickstand mount
  • Forquilha
    Giant STL 36 Air, 130mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible
  • Guiador
    Giant Connect TR Riser 31.8x760mm [S], 780mm [M-XXL]
  • Punhos
    Giant Sole-O
  • Avanço
    Giant Contact SL
  • Espigão de selim
    Giant Contact Switch AT dropper seatpost, 100mm travel
  • Selim
    Giant Ergo Contact Trail
  • Pedais
    Anti-slip Platform
  • Manetes
    Shimano Cues
  • Desviador traseiro
    Shimano Cues, LinkGlide 10-speed Shadow+
  • Travões
    Tektra Orion, hydraulic disc
  • Manípulos dos travões
    Tektra Orion
  • Cassete
    Shimano Cues11-48T 10-speed
  • Corrente
    Shimano Cues, Linkglide CN-LG500
  • Conjunto pedaleiro
    Forged alluminum direct-mount chainring steel 36T, Forged alumium crank arms
  • Aros
    Giant XCT 29 Tubeless Ready 25mm e-bike optimized
  • Cubos
    Shimano TC500, Boost, Center-Lock, 15x110mm[F] 12x148mm[R]
  • Raios
    Stainless steel
  • Pneus
    Maxxis Rekon 29x2.4", EXO, 60TPI
  • Cadeado
    ABUS Xplus battery lock
  • Peso
    Quanto pesa esta bicicleta? Esta é uma pergunta comum e importante. Mas a verdade é que não existem normas da indústria que permitam comparar o peso de uma bicicleta entre marcas o que faz com que haja muita informação errada. Existem diferenças em termos de tamanho, material utilizado no quadro, acabamentos e peças. E à medida que as bicicletas se tornam mais leves, maiores são essas diferenças. Na Giant, acreditamos que a única maneira de se saber realmente o peso de uma bicicleta é informar-se no seu revendedor local.

Todas as especificações apresentadas estão sujeitas a alterações sem aviso prévio.

Todas as especificações apresentadas estão sujeitas a alterações sem aviso prévio.
