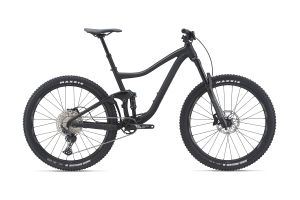

Trance
2021
$3,599 RRP
Find a Store
How do I find a retailer?
Please visit our store finder to locate your nearest Giant/Liv retailer.
We strive to support independent retailers who in turn represent our brand at all levels.
Unfortunately, we are not able to have a retailer in every community.
Why pick up in store?
We believe the Giant/Liv retailer is an essential part of the cycling foundation. Competent bicycle retailers make the difference in creating a cyclist for life. Our family of retailers is ready to communicate our mutual commitment to the cycling lifestyle and its lifelong health benefits. Our promise to you; we are committed to your riding experience, there is no better way to service, fit, or impact the cycling experience with such emotion and sustainability than through an energised Giant/Liv retailer.
Thank you for supporting a local business. Let's ride!
When it comes to riding hard and fast on challenging off-road terrain, there’s almost nothing this ambitious trail bike can’t do. From steep, technical climbs to rowdy descents, Trance gives you the perfect blend of quickness and control.
This is a trail bike that thrives in the most challenging conditions. The frameset is engineered with a lightweight yet super strong and stiff ALUXX SL aluminium frame. It has updated Maestro rear suspension featuring a trunnion-mount shock and Advanced Forged Composite rocker arm to soak up bumps small and large. You get 140mm of smooth, active rear travel that gives you the traction and control you need to be one with the trail. Frame geometry is designed around its 27.5 wheels, which deliver both quickness and control on rugged terrain. Up front, you have a 150mm suspension fork for even more confidence. Just pick your line, point it and go.
Key Performance Factors
27.5 agility and control
27.5-inch wheels balance agility and control, giving you the ability to roll over rugged terrain, flick the bike at speed, change lines, and explode out of corners.
Progressive suspension
Updated Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 140mm of rear travel (and 150mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Trail-tuned chassis
The lightweight, stiff and durable ALUXX SL aluminium frameset features updated geometry to give you confidence on technical trails. The result is agile and efficient climbing plus added control for trails ranging from chunky singletrack to flowy high-speed

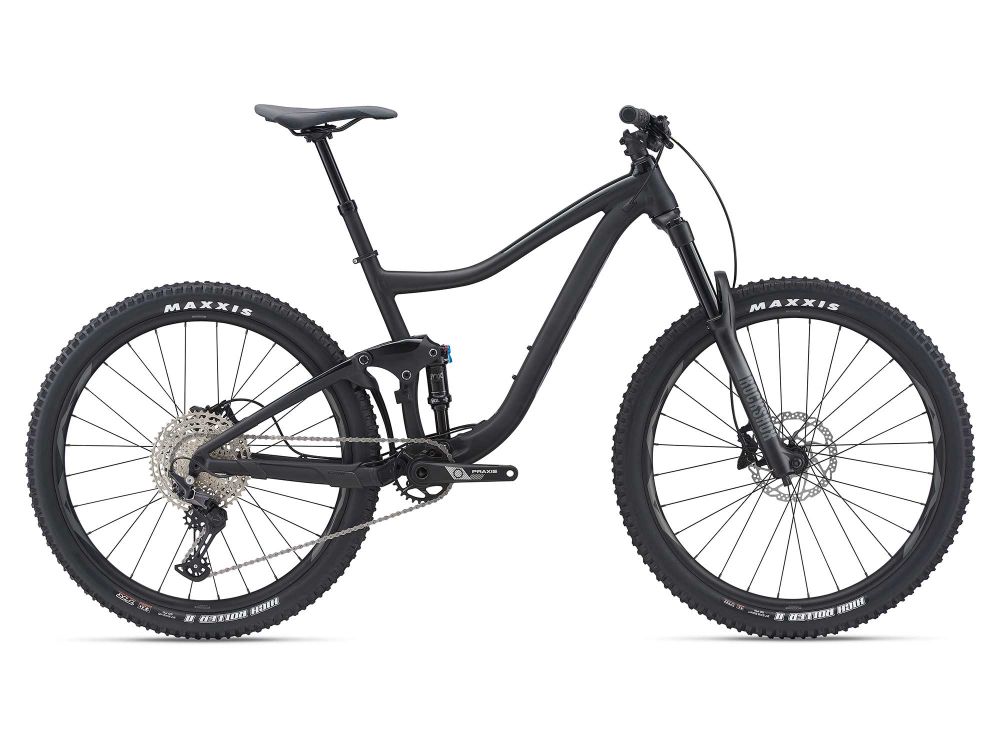

Highlights
This is a trail bike that thrives in the most challenging conditions. The frameset is engineered with a lightweight yet super strong and stiff ALUXX SL aluminum frame. It has updated Maestro rear suspension featuring a trunnion-mount shock and Advanced Forged Composite rocker arm to soak up bumps small and large. You get 140mm of smooth, active rear travel that gives you the traction and control you need to be one with the trail. Frame geometry is designed around its 27.5 wheels, which deliver both quickness and control on rugged terrain. Up front, you have a 150mm suspension fork for even more confidence. Just pick your line, point it and go.
1
ALUXX SL-Grade Aluminum Frame
State-of-the-art aluminum frameset material features best-in-class strength-to-weight ratios and unique welding technologies for a high-performance ride quality.
2
27.5-Specific Trail Geometry
Updated “long and low” XC frame geometry is tailored for 27.5-inch wheels to optimize control, acceleration and stability.
3
Boost Technology
Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
4
Maestro Suspension Technology
Uses four strategically positioned pivot points and two linkages that work together to create a single floating pivot point for the most active, efficient suspension system.
5
Advanced Forged Composite Technology
A state-of-the-art, high-pressure molding process is used to produce complex shaped carbon-fiber components that are lighter, stiffer and stronger than similar aluminum components.
6
Trunnion Mount
New shock mount produces a lower leverage ratio for increased pedaling and braking efficiency, plus a lower center of gravity and shorter chainstays for improved handling, climbing and agility.
7
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 92-millimeter wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
8
OverDrive
Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
9
150mm Fork
150mm of travel up front allows you to easily navigate trail obstacles and downhill terrain.
Techs & Features
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 163 cm5’4”
172 cm5’8”
- M
- 171 cm5’7” 180 cm5’11”
- L
- 179 cm5’10” 188 cm6’2”
- XL
- 187 cm6’2” 198 cm6’6”
| S | M | L | XL | |
|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 38015 | 43117 | 48219 | 50720 |
| B Seat Tube Angle (degrees) | 73.5° | 73.5° | 73.5° | 73.5° |
| C Top Tube Length (mm) (inch) | 58022.8 | 61024 | 63024.8 | 65525.8 |
| D Head Tube Length (mm) (inch) | 1003.9 | 1054.1 | 1305.1 | 1455.7 |
| E Head Tube Angle (degrees) | 67.0° | 67.0° | 67.0° | 67.0° |
| F Fork Rake (mm) (inch) | 421.7 | 421.7 | 421.7 | 421.7 |
| G Trail (mm) (inch) | 104.24.1 | 104.24.1 | 104.24.1 | 104.24.1 |
| H Wheelbase (mm) (inch) | 112944.4 | 116045.7 | 118346.6 | 120947.6 |
| I Chain Stay Length (mm) (inch) | 43517.1 | 43517.1 | 43517.1 | 43517.1 |
| J Bottom Bracket Drop (mm) (inch) | 150.6 | 150.6 | 150.6 | 150.6 |
| K Stack (mm) (inch) | 58723.1 | 59123.3 | 61424.2 | 62824.7 |
| L Reach (mm) (inch) | 40616 | 43517.1 | 44817.6 | 46918.5 |
| M Stand Over Height (mm) (inch) | 70127.6 | 72328.5 | 76830.2 | 78831 |
| O Stem Length (mm) (inch) | 502 | 502 | 502 | 602.4 |
| P Crank Length (mm) (inch) | 1706.7 | 1756.9 | 1756.9 | 1756.9 |
| Q Wheel Size | 27.5" | 27.5" | 27.5" | 27.5" |
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
