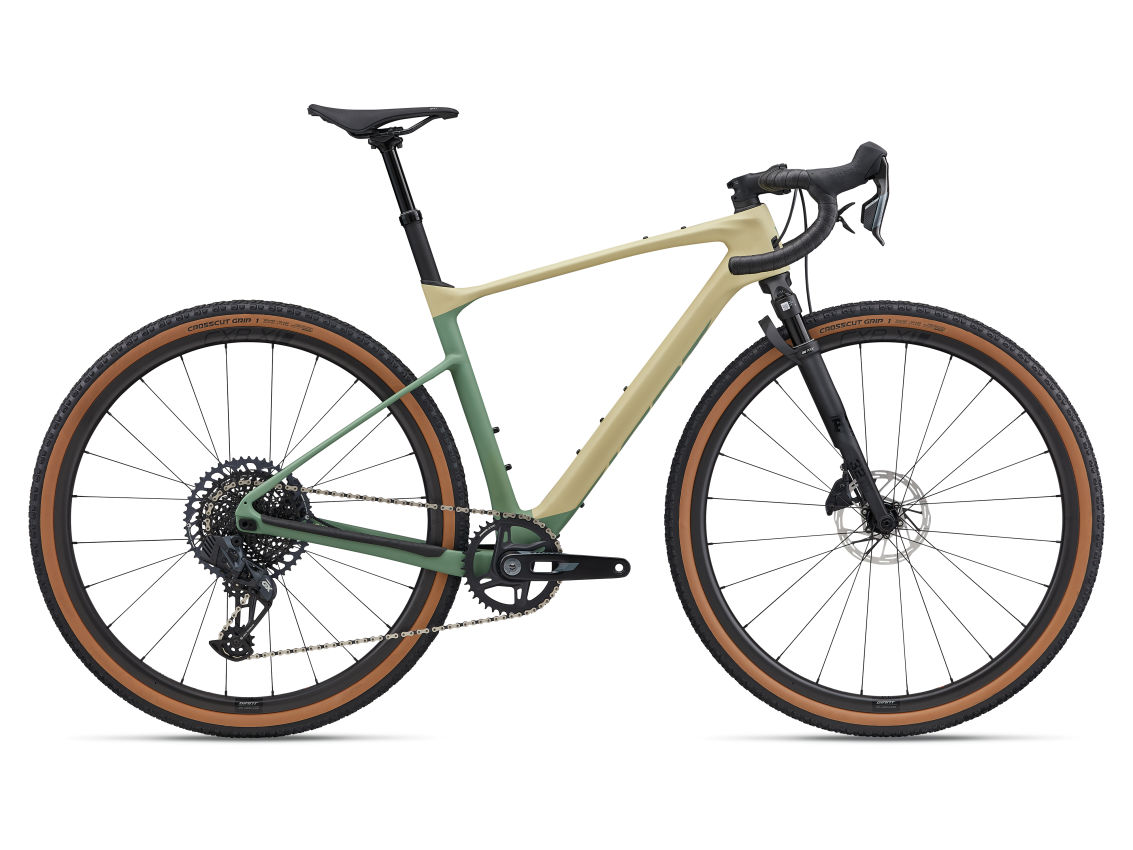

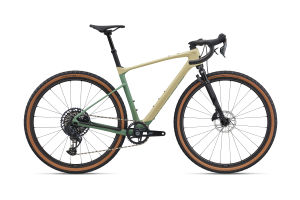

Revolt X Advanced Pro 1
$9,299 RRP
Find a Store
How do I find a retailer?
Please visit our store finder to locate your nearest Giant/Liv retailer.
We strive to support independent retailers who in turn represent our brand at all levels.
Unfortunately, we are not able to have a retailer in every community.
Why pick up in store?
We believe the Giant/Liv retailer is an essential part of the cycling foundation. Competent bicycle retailers make the difference in creating a cyclist for life. Our family of retailers is ready to communicate our mutual commitment to the cycling lifestyle and its lifelong health benefits. Our promise to you; we are committed to your riding experience, there is no better way to service, fit, or impact the cycling experience with such emotion and sustainability than through an energised Giant/Liv retailer.
Thank you for supporting a local business. Let's ride!
Techs & Features
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Flip Chip - Dropout
Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Compact Road Design
Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
MegaDrive
A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 155 cm5’1”
166 cm5’5”
- S
- 159 cm5’3” 171 cm5’7”
- M
- 169 cm5’7” 181 cm5’11”
- ML
- 174 cm5’9” 186 cm6’1”
- L
- 179 cm5’10” 191 cm6’3”
- XL
- 189 cm6’2” 200 cm6’7”
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (mm) (inch) | 43016.9 | 45017.7 | 47018.5 | 49019.3 | 51020.1 | 53020.9 |
| B Seat Tube Angle (degrees) | 74.0° | 73.9° | 73.5° | 73.4° | 73.5° | 73.4° | 73.0° | 72.9° | 73.0° | 72.9° | 73.0° | 72.9° |
| C Top Tube Length (mm) (inch) | 54321.4 | 55321.8 | 56022 | 57522.6 | 58523 | 60023.6 |
| D Head Tube Length (mm) (inch) | 903.5 | 1003.9 | 1154.5 | 1305.1 | 1455.7 | 1606.3 |
| E Head Tube Angle (degrees) | 70.5° | 70.4° | 71.0° | 70.9° | 71.5° | 71.4° | 72.0° | 71.9° | 72.0° | 71.9° | 72.0° | 71.9° |
| F Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 | 502 | 502 |
| G Trail (mm) (inch) | 80.33.1 | 83.73.3 | 76.93 | 80.33.1 | 73.52.9 | 76.83 | 70.12.8 | 73.42.9 | 70.12.8 | 73.42.9 | 70.12.8 | 73.42.9 |
| H Wheelbase (mm) (inch) | 102340.3 | 103340.7 | 102440.3 | 103440.7 | 102640.4 | 103640.8 | 103140.6 | 104141 | 104141 | 105141.4 | 105741.6 | 106742 |
| I Chain Stay Length (mm) (inch) | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 |
| J Bottom Bracket Drop (mm) (inch) | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 |
| K Stack (mm) (inch) | 54921.6 | 56022 | 57622.7 | 59223.3 | 60723.9 | 62124.4 |
| L Reach (mm) (inch) | 38615.2 | 38715.2 | 38915.3 | 39315.5 | 39915.7 | 41016.1 |
| M Stand Over Height (mm) (inch) | 72028.3 | 72628.6 | 73629 | 74329.3 | 75529.7 | 76130 | 77230.4 | 77830.6 | 79031.1 | 79631.3 | 80831.8 | 81432 |
| O Stem Length (mm) (inch) | 502 | 602.4 | 702.8 | 803.1 | 803.1 | 903.5 |
| P Crank Length (mm) (inch) | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q Wheel Size | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
