Quick-E+
(45 km/h)

2019

$4,199 RRP

Share

Order online and collect from your local store

On items purchased online

Locate a store near you

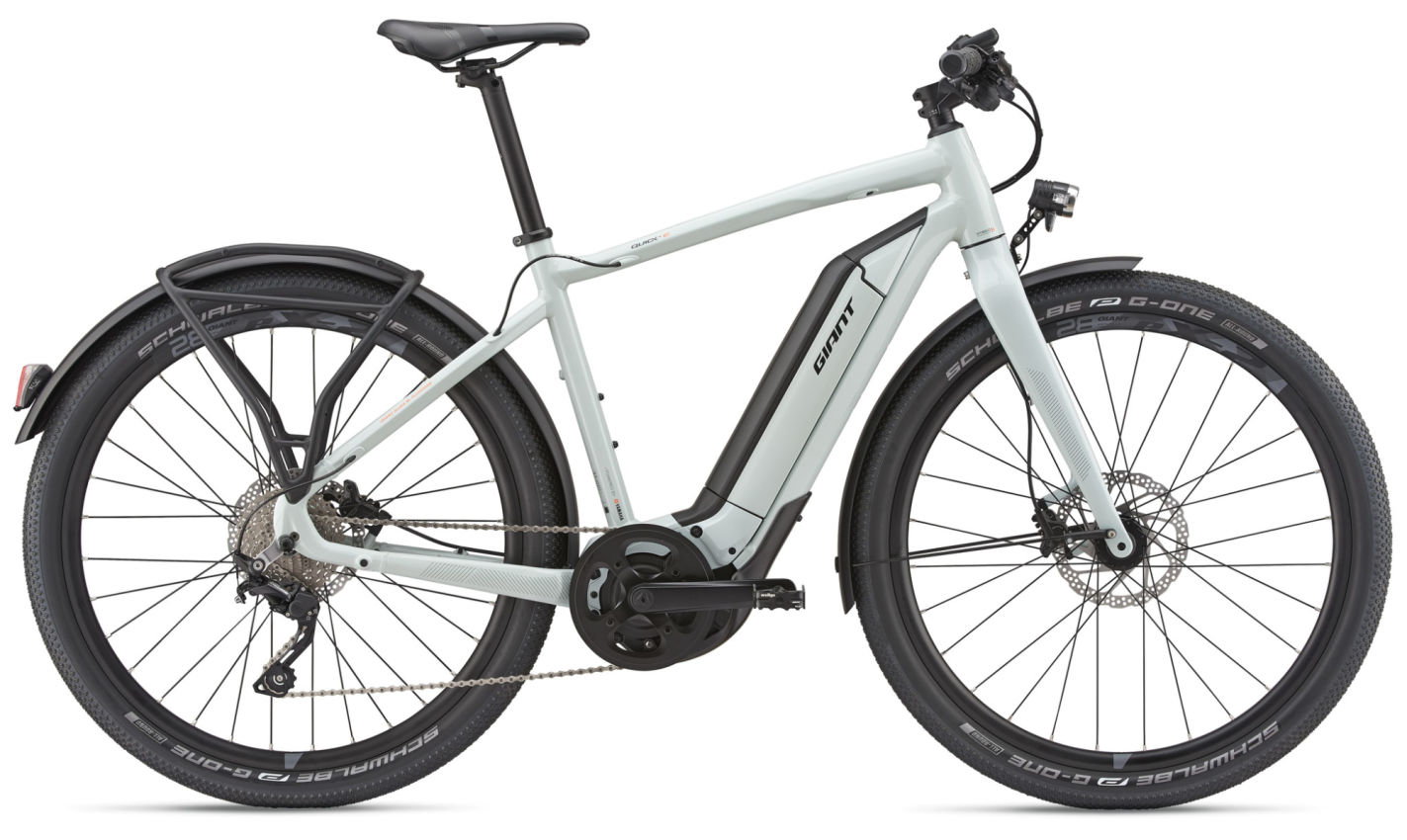

Travel fast in urban environments with this state-of-the-art mobility bike. Featuring a SyncDrive motor that's powered by Yamaha, and a long-lasting EnergyPak battery, Quick-E+ lets you make every trip faster and more fun.

The Quick-E+ features a compact SyncDrive Sport motor that delivers smooth and instantaneous power—which blends seamlessly with your own pedaling power so you can float up hills, dial up your speed, and do it all with greater ease. With an ALUXX SL aluminium frame and a powerful SyncDrive Sport motor that produces 80Nm of torque and top speeds of 45 kph, traffic jams and parking hassles can be a thing of the past.

Key Performance Factors

Responsive power

The Quick-E+ features a compact SyncDrive Sport motor that delivers smooth and instantaneous power.

Longer distance

The highest density battery available in a lightweight package helps you ride longer and cover greater distances.

Commute with ease

With top speeds of 45 kph, traffic jams and parking hassles can be a thing of the past.

Techs & Features

ALUXX SL Aluminum Technology
EnergyPak Plus
Hybrid Cycling Technology
RideControl EVO
SyncDrive Sport

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      160 cm5’3”  to 170 cm5’7”
  • M
      170 cm5’7”  to 180 cm5’11”
  • L
      180 cm5’11”  to 190 cm6’3”
  • XL
      190 cm6’3”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)43517.148519.153521.158523
BSeat Tube Angle (degrees)74.0°73.0°73.0°72.0°
CTop Tube Length (mm) (inch)55021.757022.459023.261024
DHead Tube Length (mm) (inch)1355.31455.71606.31807.1
EHead Tube Angle (degrees)70.5°71.0°71.0°71.0°
FFork Rake (mm) (inch)421.7421.7421.7421.7
GTrail (mm) (inch)793.1763763763
HWheelbase (mm) (inch)103140.6103640.8105641.6106541.9
IChain Stay Length (mm) (inch)45517.945517.945517.945517.9
JBottom Bracket Drop (mm) (inch)702.8702.8702.8702.8
KStack (mm) (inch)57922.859123.360523.862424.6
LReach (mm) (inch)38415.138915.340515.940716
MStand Over Height (mm) (inch)71828.374829.478230.881732.2
OStem Length (mm) (inch)803.1803.1903.51003.9
PCrank Length (mm) (inch)1706.71706.71706.71706.7
QWheel Size 27.5"27.5"27.5"27.5"
Specs
  • Motor
    Giant SyncDrive Sport, powered by YAMAHA
  • Sensors
    Giant PedalPlus 4-sensor technology
  • Display
    Giant RideControl EVO, grip launch control with walk assist, mini USB charger
  • Battery
    Giant EnergyPak 500Wh, 36V 13.8Ah Rechargeable Lithium-Ion
  • Sizes
    S, M, L, XL
  • Colors
    Solid Grey
  • Frame
    ALUXX SL grade aluminium
  • Fork
    ALUXX SL grade aluminium, OverDrive steerer, 12x100mm
  • Handlebar
    Giant Connect XC rise, 31.8mm
  • Stem
    Giant Connect, 8 degree
  • Seatpost
    Giant Sport, 30.9mm
  • Saddle
    Giant Contact Comfort, Upright
  • Pedals
    N/A
  • Shifters
    Shimano Deore, 10sp
  • Rear Derailleur
    Shimano Deore, Shadow+
  • Brakes
    Shimano MT500 hydraulic disc, 180mm
  • Brake Levers
    Shimano MT500 hydraulic
  • Cassette
    Shimano HG50, 11-36T, 10sp
  • Chain
    KMC e10 sport
  • Crankset
    Alloy Forged, 42T
  • Rims
    Giant eXC 2, tubeless ready, 27.5" aluminium, e-bike optimised
  • Hubs
    Giant eTracker sport, e-bike optimised
  • Spokes
    Stainless steel
  • Tires
    Schwalbe G-One Allround, 27.5x2.35"
  • Extras
    Giant EnergyPak 4A fast charger
  • Lighting
    Axa BlueLine 50Lux Steady E6 frontSpanninga Vena XE rear
  • Carrier
    Integrated pannier bag carrier, compatible with MIK system top-deck
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
