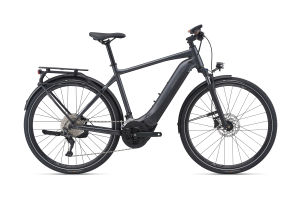

Explore E+ 1 GTS

2022

$5,499 RRP

Pick your destination and find joy in the journey. This versatile all-rounder E-bike is ideal for trekking, commuting or riding or simply boosting the fun factor on any ride.

Key Performance Factors

Overall stability

The ALUXX aluminium frameset and SyncDrive Sport motor combine for smooth handling and acceleration on all types of roads from hills to flats.

Explore new routes

The RideControl EVO smartphone connectivity and on-board navigation helps riders find their way.

Longer range

Explore E+ gives riders the freedom to ride farther with its EnergyPak Smart battery that delivers 625Wh of power.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorised as extreme, good and ideal. Extreme conditions typically occur with a heavier rider and/or load, headwinds, constant high speed, rough terrain, or big climbs. This table is specific to models limited to 25km/h; 32 km/h and 45 km/h models will experience a shorter range.

EnergyPak Smart 625 / SyncDrive Sport

  • Range
  • Extreme: 65 km 40 miles
  • Good: 130 km 80 miles
  • Ideal: 215 km 133 miles

Techs & Features

E+ System
SyncDrive Sport
Smart Assist
Energypak
RideControl Ergo
ALUXX Aluminum Technology
RideDash Evo

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      162 cm5’4”  to 172 cm5’8”
  • M
      169 cm5’7”  to 179 cm5’10”
  • L
      176 cm5’9”  to 186 cm6’1”
  • XL
      183 cm6’0”  to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)43517.148519.153521.158523
BSeat Tube Angle (degrees)74.0°73.0°73.0°73.0°
CTop Tube Length (mm) (inch)57022.459023.26102463024.8
DHead Tube Length (mm) (inch)1305.11405.51556.11706.7
EHead Tube Angle (degrees)69.5°69.5°69.5°69.5°
FFork Rake (mm) (inch)421.7421.7421.7421.7
GTrail (mm) (inch)91.33.691.33.691.33.691.33.6
HWheelbase (mm) (inch)111243.8112144.1114245116345.8
IChain Stay Length (mm) (inch)45517.945517.945517.945517.9
JBottom Bracket Drop (mm) (inch)602.4602.4602.4602.4
KStack (mm) (inch)6102461924.463324.964825.5
LReach (mm) (inch)39515.640015.741616.443217
MStand Over Height (mm) (inch)74529.377530.580831.884433.2
OStem Length (mm) (inch)602.4702.8803.1903.5
PCrank Length (mm) (inch)1706.71706.71706.71706.7
QWheel Size 700C700C700C700C
Specs
  • Motor
    SyncDrive Sport, 70Nm, powered by Yamaha, 32km/h
  • Controller
    RideControl Ergo
  • Display
    RideDash Evo
  • Battery
    EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible
  • Charger
    EnergyPak 6A Smart Charger
  • Sizes
    S, M, L, XL, XXL
  • Colors
    Gunmetal Black
  • Frame
    ALUXX grade aluminium, disc
  • Fork
    SR Suntour NEX E25 NLO 63mm travel
  • Shock
    -
  • Handlebar
    Giant Connect XC Riser 31.8x690mm
  • Grips
    Giant Contact Ergo Max Plus
  • Stem
    Giant Contact
  • Seatpost
    Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
  • Saddle
    Selle Royal Vivo Ergo Moderate
  • Pedals
    N/A
  • Shifters
    Shimano Deore
  • Front Derailleur
    Shimano Deore
  • Rear Derailleur
    Shimano Deore, 10-speed, Shadow+
  • Brakes
    Tektro HDM286, hydraulic disc, [F]180mm, [R]180mm
  • Brake Levers
    Tektro HDM286
  • Cassette
    Shimano CS-M4100, 11-42T, 10-speed
  • Chain
    KMC e.10 Sport, e-bike optimised
  • Crankset
    Forged Alloy minimal Q-factor, 36/48T
  • Bottom Bracket
    -
  • Rims
    Giant eX 2, Tubeless Ready, 700c Aluminium
  • Hubs
    Giant eTracker, [F] 15mm Axle [R] 135mm QR
  • Spokes
    Stainless steel
  • Tires
    Giant Crosscut Gravel 2, 700x45c, Tubeless Ready, Reflex
  • Extras
    Giant Direct Mount KSA18 Trekking Kickstand
  • Lighting
    Axa BlueLine 50Lux Steady E6 front, Axa BlueLine Steady E6 rear
  • Carrier
    MIK rack. System bag & basket compatible
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
