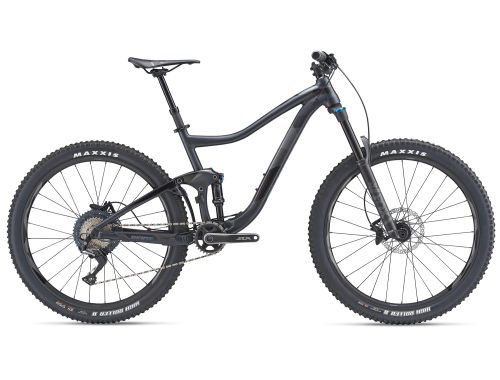

When it comes to riding hard and fast on challenging off-road terrain, there’s almost nothing this ambitious trail bike can’t do. From steep, technical climbs to rowdy descents, you’re ready for anything with Trance.
This is a trail bike that thrives in the most challenging conditions. The frameset is engineered with a lightweight yet super strong and stiff ALUXX SL aluminum frame. It has updated Maestro rear suspension featuring a trunnion-mount shock and Advanced Forged Composite rocker arm to soak up bumps small and large. You get 140mm of smooth, active rear travel that gives you the traction and control you need to be one with the trail. Frame geometry is designed around its 27.5 wheels, which deliver both quickness and control on rugged terrain. Up front, you have a 150mm suspension fork for even more confidence. Just spot your line, point it and go.
State-of-the-art aluminum frameset material features best-in-class strength-to-weight ratios and unique welding technologies for a high-performance ride quality.
27.5-Specific Trail Geometry
Updated “long and low” XC frame geometry is tailored for 27.5-inch wheels to optimize control, acceleration and stability.
Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
Advanced Forged Composite Upper Rocker Arm
A state-of-the-art, high-pressure molding process is used to produce complex shaped carbon-fiber components that are lighter, stiffer and stronger than similar aluminum components.
Maestro Suspension Technology
Uses four strategically positioned pivot points and two linkages that work together to create a single floating pivot point for the most active, efficient suspension system.
New shock mount produces a lower leverage ratio for increased pedaling and braking efficiency, plus a lower center of gravity and shorter chainstays for improved handling, climbing and agility.
A massively oversized bottom-bracket/chainstay area features a fully integrated, 92-millimeter wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
150mm of travel up front allows you to easily navigate trail obstacles and downhill terrain.
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
