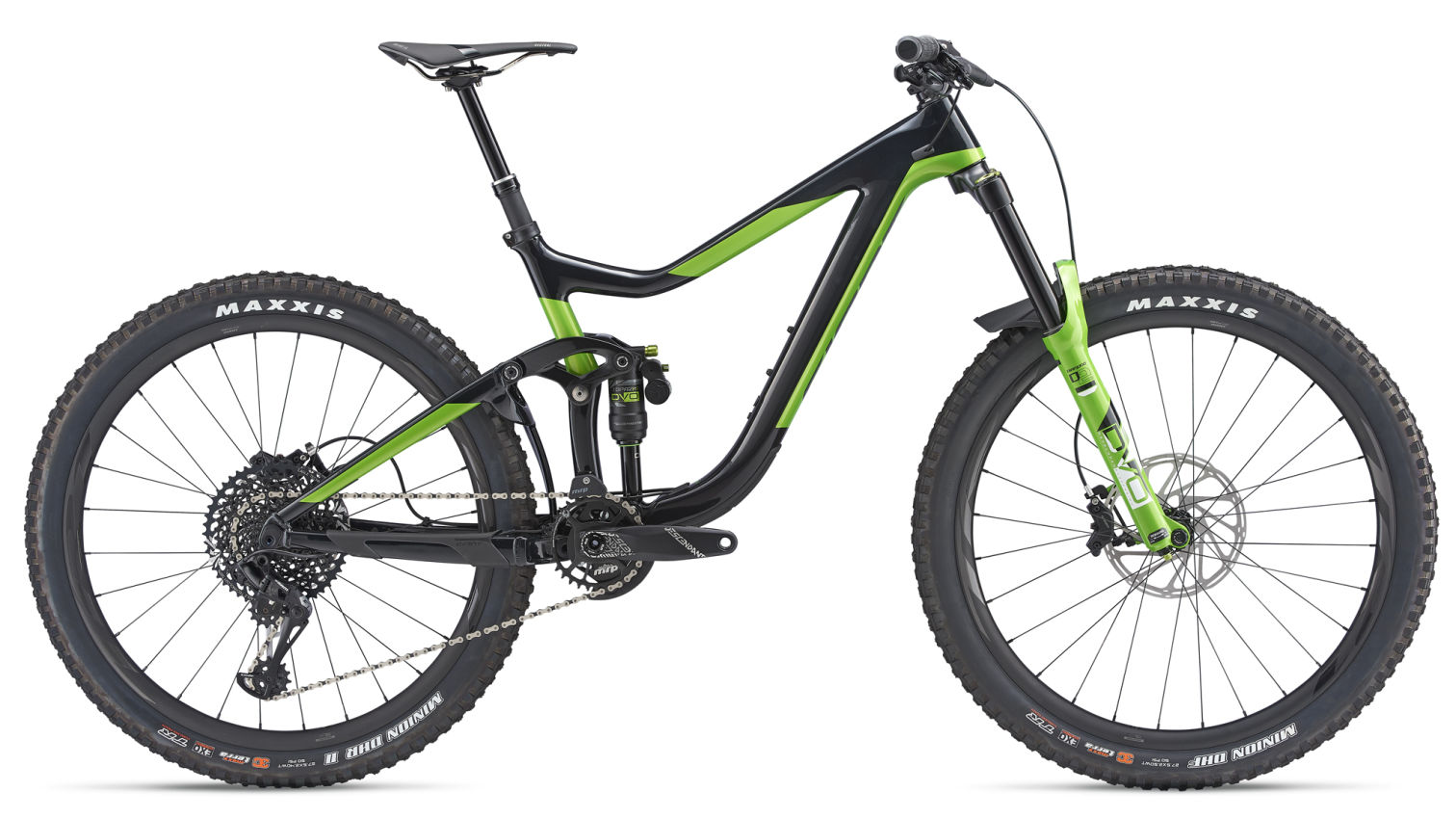

Reign
Advanced 1

2019

Share

The fastest, most confident Reign ever built. This enduro crusher features a lightweight composite frame that’s engineered for speed on rowdy terrain. Tested by Giant pros on extreme Enduro World Series terrain, it’s ready to rip.

Updated and refined for the Giant Factory Off-Road enduro squad last year, the latest Reign Advanced features a longer, lower cockpit for fast, aggressive trail riding performance. It’s engineered with a lightweight, super-stiff Advanced-grade composite mainframe and ALUXX SL aluminum rear swingarm. The Maestro suspension system delivers 160mm of smooth, active travel with a trunnion mount shock and our Advanced Forged Composite upper rocker arm—which is lighter and stronger than the previous aluminum design. And it’s all designed around the performance benefits offered by 27.5 wheels, giving you the confidence and control to be fast and loose on hard-hammering terrain.

Key Performance Factors

27.5 agility and control

27.5-inch wheels balance agility and control, giving you the ability to roll over rugged terrain, flick the bike at speed, change lines, and explode out of corners.

Latest suspension tech

Updated Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 160mm of travel (and 170mm up front), it has the new Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Enduro geometry

The lightweight and stiff Advanced-grade composite frameset features updated enduro-style geometry, so you can ride aggressive descents and rail corners with confidence.

Techs & Features

Advanced Composite Technology
Advanced Forged Composite Technology
Maestro Suspension Technology
OverDrive
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4”  to 172 cm5’8”
  • M
      171 cm5’7”  to 180 cm5’11”
  • L
      179 cm5’10”  to 188 cm6’2”
  • XL
      187 cm6’2”  to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)380154311746418,349619,5
BSeat Tube Angle (degrees)72,5°72,5°72,5°72,5°
CTop Tube Length (mm) (inch)60123,763725,165725,968226,9
DHead Tube Length (mm) (inch)953,7953,71154,51254,9
EHead Tube Angle (degrees)64,5°64,5°64,5°64,5°
FFork Rake (mm) (inch)461,8461,8461,8461,8
GTrail (mm) (inch)1204,71204,71204,71204,7
HWheelbase (mm) (inch)117846,4121347,8123648,7126249,7
IChain Stay Length (mm) (inch)43517,143517,143517,143517,1
JBottom Bracket Drop (mm) (inch)70,370,370,370,3
KStack (mm) (inch)58022,858022,859923,660823,9
LReach (mm) (inch)41916,545417,946918,549119,3
MStand Over Height (mm) (inch)697,427,4715,528,1741,329,2761,130
NHandlebar Width (mm) (inch)80031,580031,580031,580031,5
OStem Length (mm) (inch)401,6502502602,4
PCrank Length (mm) (inch)1706,71756,91756,91756,9
QWheel Size 27.5"27.5"27.5"27.5"
Specs
  • Størrelse
    S, M, L, XL
  • Farge
    Carbon / Metallic Green
  • Ramme
    Advanced-Grade Composite front triangle, ALUXX SL Aluminum rear triangle
  • Gaffel
    DVO custom-tuned Diamond D2
  • Demper
    DVO custom-tuned Topaz 2 T3
  • Styre
    Giant Contact SL, 800x35mm, 20mm rise
  • Styrstem
    Giant Contact SL 35, Diameter 35mm
  • Setepinne
    Giant Contact Switch S dropper post with remote lever, 30.9mm
  • Sadel
    Contact SL (neutral)
  • Pedaler
    N/A
  • Girhendler
    SRAM GX Eagle, 1x12
  • Frontgir
    N/A
  • Bakgir
    SRAM GX Eagle
  • Bremser
    SRAM Code R [F] 200mm [R] 180mm, hydraulic disc
  • Bremsehendler
    SRAM Code R
  • Kassett
    SRAM XG-1275 Eagle, 10x50
  • Kjede
    SRAM GX Eagle
  • Krank
    TruVativ Descendent 6k, Eagle Dub, Boost, 32
  • Bottom Bracket
    SRAM GXP Dub Press Fit
  • Felg
    Giant TR 1 Hookless Alloy DBL WheelSystem
  • Nav
    Giant TR 1 Hookless Alloy DBL WheelSystem, 28H
  • Eike
    Giant TR 1 Hookless Alloy DBL WheelSystem
  • Dekk
    [F] Maxxis Minion DHF 27.5x2.5 WT, 60 tpi, 3C, EXO, TR [R] Maxxis Minion DHRII 27.5x2.4 WT, 60 tpi, 3C, EXO, TR, tubeless
  • Vekt
    Hvor mye veier denne sykkelen? Dette er et vanlig spørsmål, men sannheten er at det ikke finnes noen bransjestandard for å sette en vekt. Vi i Giant tror den eneste måten å virkelig finne vekten av en bestemt sykkel er å dra til din lokale forhandler.

Alle spesifikasjonene kan endres uten varsel.

Alle spesifikasjonene kan endres uten varsel.

}
