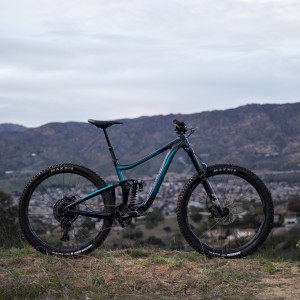

Reign 29 SX

Hva er min størrelse

Share

PIck your line and let it rip. From chunky alpine terrain to warp-speed park runs, this hard-charging 29er feasts on rugged terrain, giving you the confidence to charge harder.

Key Performance Factors

Race-bred suspension

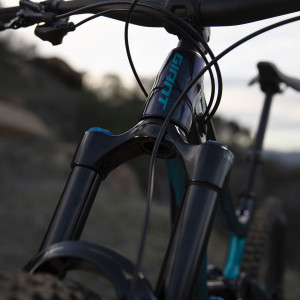

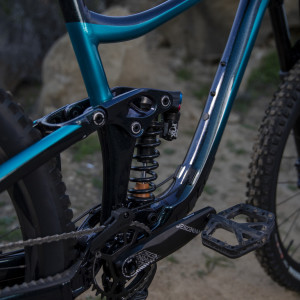

Maestro rear suspension and a 170mm fork developed and tested in Enduro World Series races. The trunnion mount rear shock has a longer stroke and smoother feel, and an Advanced Forged Composite upper rocker arm adds stiffness while lowering overall frame weight.

Progressive enduro geometry

A strong and durable ALUUX SL aluminum frameset helps you ride aggressive descents and rail corners with confidence. Enduro-optimized head and seattube angles, plus a 170mm fork with 44mm offset, produce confident front-end handling.

29er confidence and control

Larger 29-inch diameter wheels roll over rugged enduro terrain with improved balance and stability, giving you the momentum to crank up tough climbs and the confidence to fly on fast, technical descents.

Specs
  • Størrelse
    S, M, L, XL
  • Farge
    Starry Night / Jade Teal
  • Ramme
    ALUXX SL-Grade Aluminum front and rear triangles, 146mm Maestro suspension, 12x148mm thru-axle
  • Gaffel

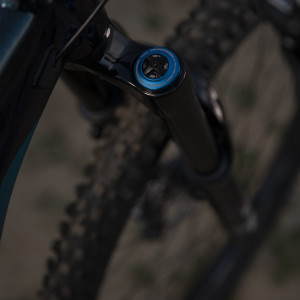

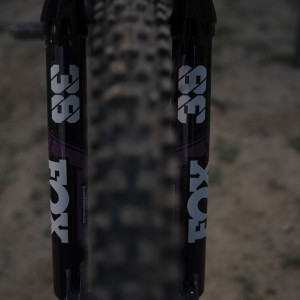

    Fox 38 Performance Elite, GRIP 2 damper, 44mm offset, 170mm, 15x110 Kabolt X, custom tuned for Giant
  • Demper
    Fox DHX2 Performance Elite, lockout, 205/60, custom tuned for Giant S:400#, M:400#, L:450#, XL:500#
  • Styre
    Giant Contact SL TR35, 800x35mm, 20mm rise
  • Grips
    Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
  • Styrstem
    Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
  • Setepinne
    Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm
  • Sadel
    Giant Romero
  • Pedaler
    N/A
  • Girhendler
    SRAM NX Eagle, 1x12
  • Frontgir
    N/A
  • Bakgir
    SRAM NX Eagle
  • Bremser
    Shimano SLX BR-M7120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]203mm
  • Bremsehendler
    Shimano SLX BL-M7100
  • Kassett
    SRAM NX Eagle, 11x50
  • Kjede
    SRAM NX Eagle
  • Krank
    TruVativ Descendent 6k, DUB, 32t S:165mm, M:170mm, L:170mm, XL:170mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Felg
    Giant AM 29, alloy
  • Nav
    Giant Boost, sealed
  • Eike
    Sapim
  • Dekk
    [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra , EXO+, TR tubeless
  • Extras
    tubeless prepared, 2.5" max tire size, 36t max chainring size, MRP SXg chain guide
  • Vekt
    Hvor mye veier denne sykkelen? Dette er et vanlig spørsmål, men sannheten er at det ikke finnes noen bransjestandard for å sette en vekt. Vi i Giant tror den eneste måten å virkelig finne vekten av en bestemt sykkel er å dra til din lokale forhandler.

Alle spesifikasjonene kan endres uten varsel.

Highlights

This gravity-focused 29er features a lightweight, stiff and super-strong ALUXX SL frameset with our latest Maestro rear suspension. The components are hand-picked to excel on technical descents. The frameset is engineered with progressive geometry including shorter chainstays, a longer toptube, and headtube/seattube angles that put you in the perfect position to slay singletrack. The rear suspension gives you 146mm of smooth, active rear travel with a new trunnion mount shock and Advanced Forged Composite rocker arm. This SX model features a 170mm fork for outstanding control on high-speed descents.

Reign 29 SX with interactive tooltips

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4”  to 172 cm5’8”
  • M
      171 cm5’7”  to 180 cm5’11”
  • L
      179 cm5’10”  to 188 cm6’2”
  • XL
      187 cm6’2”  to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)431174311746418,349619,5
BSeat Tube Angle (degrees)76,4°76,4°76,4°76,4°
CTop Tube Length (mm) (inch)57422,660123,764025,266626,2
DHead Tube Length (mm) (inch)1003,91003,91104,31204,7
EHead Tube Angle (degrees)64,6°64,6°64,6°64,6°
FFork Rake (mm) (inch)441,7441,7441,7441,7
GTrail (mm) (inch)132,75,2132,75,2132,75,2132,75,2
HWheelbase (mm) (inch)119146,9122048126249,7128950,7
IChain Stay Length (mm) (inch)43917,343917,343917,343917,3
JBottom Bracket Drop (mm) (inch)271,1271,1271,1271,1
KStack (mm) (inch)62224,562224,563124,864025,2
LReach (mm) (inch)42316,745117,848819,251120,1
MStand Over Height (mm) (inch)75729,875929,978130,780431,7
NHandlebar Width (mm) (inch)80031,580031,580031,580031,5
OStem Length (mm) (inch)401,6401,6401,6401,6
PCrank Length (mm) (inch)1656,51706,71706,71706,7
QWheel Size 29"29"29"29"

Techs & Features

Advanced Forged Composite Technology
ALUXX SL Aluminum Technology
Maestro Suspension Technology
OverDrive
Tubeless System

Alle spesifikasjonene kan endres uten varsel.
