From parkways to paths, paved roads or dirt, this versatile flat-bar bike can help you reach new fitness goals or add some spice to your daily commute.

Key Performance Factors

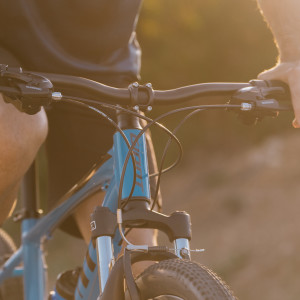

All-terrain versatility

With a mountain bike style flat handlebar, suspension fork and disc brakes, you can ride road or dirt with confidence.

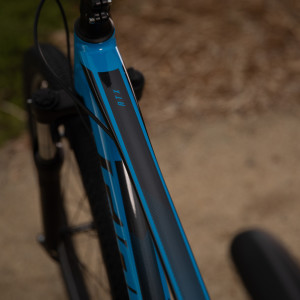

Lightweight and durable

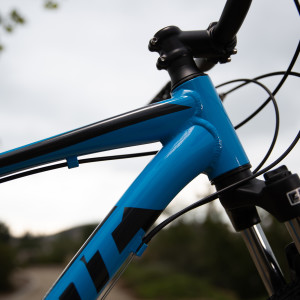

Frameset constructed with high-quality ALUXX aluminum.

Comfort and stability

Frame geometry puts the rider in a position that balances efficiency with stability on rough roads, paths or trails.

Highlights

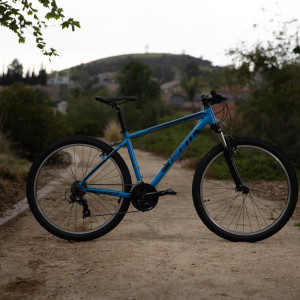

With a rugged personality and a smooth riding style, ATX features the familiar flat handlebar look of a traditional mountain bike. It has a lightweight, durable ALUXX aluminum frame and a suspension fork with 100mm of smooth travel to soak up bumps. The wheel diameter varies based on bike size, with 26-inch wheels on smaller frames and 27.5 on larger ones. This tailors the bike’s handling to a rider’s height. Powerful disc brakes deliver confident handling in all types of weather, and integrated mounts make it easy to add racks or fenders to suit your riding adventures.

ATX with interactive tooltips

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XXS (26")
      152 cm5’0”  to 157 cm5’2”
  • XS (26")
      157 cm5’2”  to 162 cm5’4”
  • S (26")
      162 cm5’4”  to 170 cm5’7”
  • S (27.5")
      162 cm5’4”  to 170 cm5’7”
  • M (27.5")
      170 cm5’7”  to 175 cm5’9”
  • L (27.5")
      175 cm5’9”  to 185 cm6’1”
  • XL (27.5")
      185 cm6’1”  to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XXS (26")XS (26")S (26")S (27.5")M (27.5")L (27.5")XL (27.5")
ASeat Tube Length (mm) (inch)35013,838515,242016,542016,545517,950519,953521,1
BSeat Tube Angle (degrees)73,5°73,5°73,5°73,5°73,0°73,0°73,0°
CTop Tube Length (mm) (inch)55521,956522,257522,657522,659023,26102463024,8
DHead Tube Length (mm) (inch)953,71054,11204,7953,71104,31455,71706,7
EHead Tube Angle (degrees)68,0°68,0°68,0°68,0°68,0°68,0°68,0°
FFork Rake (mm) (inch)421,7421,7421,7421,7421,7421,7421,7
GTrail (mm) (inch)92,53,692,53,692,53,692,53,692,53,692,53,692,53,6
HWheelbase (mm) (inch)106541,9107642,4108742,8108042,5109143111443,9113644,7
IChain Stay Length (mm) (inch)42016,542016,542016,543517,143517,143517,143517,1
JBottom Bracket Drop (mm) (inch)351,4351,4351,4502502502502
KStack (mm) (inch)55621,956522,257922,858122,959523,462824,765125,6
LReach (mm) (inch)39015,439815,740315,940315,940816,141816,543117
MStand Over Height (mm) (inch)68827,17102872328,572128,474729,478931,181432
NHandlebar Width (mm) (inch)62024,46602666026660266602670027,670027,6
OStem Length (mm) (inch)502502702,8702,8702,8903,5903,5
PCrank Length (mm) (inch)1606,31656,51706,71706,71706,71756,91756,9
QWheel Size 26"26"26"27.5"27.5"27.5"27.5"
Specs
  • Størrelse
    26: XXS,XS,S, 27.5: S,M,L,XL, XXL
  • Farge
    Black, Vibrant Blue
  • Ramme
    ALUXX-Grade Aluminum
  • Gaffel
    SR Suntour XCE 28, coil, preload XXS: 80mm travel (26) XS: 80mm travel (26) S: 80mm travel (26) / 80mm travel (27.5) M: 80mm travel (27.5) L: 80mm travel (27.5) XL: 80mm travel (27.5) XXL: 80mm travel (27.5)
  • Demper
    N/A
  • Styre
    Giant Sport, alloy, 25.4mm XXS: 600mm (26) XS: 600mm (26) S: 640mm (26) / 640mm (27.5) M: 680mm (27.5) L: 680mm (27.5) XL: 680mm (27.5) XXL: 680mm (27.5)
  • Grips
    Giant Sole-O
  • Styrstem
    Giant Sport, alloy, 15-degree XXS: 60mm (26) XS: 60mm (26) S: 75mm (26) / 60mm (27.5) M: 60mm (27.5) L: 75mm (27.5) XL: 75mm (27.5) XXL: 75mm (27.5)
  • Setepinne
    Giant Sport, 30.9mm XXS: 300mm (26) XS: 300mm (26) S: 300mm (26) / 375mm (27.5) M: 375mm (27.5) L: 375mm (27.5) XL: 375mm (27.5) XXL: 375mm (27.5)
  • Sadel
    Giant custom
  • Pedaler
    platform
  • Girhendler

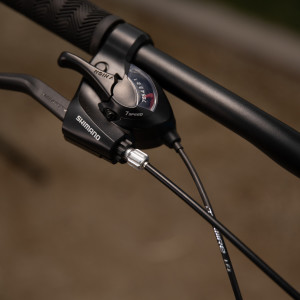

    Shimano EF41, 3x7
  • Frontgir
    Shimano Tourney
  • Bakgir
    Shimano Tourney
  • Bremser
    MTB linear pull
  • Bremsehendler
    Shimano EF41
  • Kassett
    Shimano MF-TZ500, 14x28
  • Kjede
    KMC Z7
  • Krank
    ProWheel forged, 24/34/42 XXS: 165mm (26) XS: 165mm (26) S: 170mm (26) / 170mm (27.5) M: 170mm (27.5) L: 175mm (27.5) XL: 175mm (27.5) XXL: 175mm (27.5)
  • Bottom Bracket
    cartridge
  • Felg
    Giant alloy
  • Nav
    alloy, sealed bearing
  • Eike
    stainless, 14g
  • Dekk
    Giant Quickcross, 27.5x2.1" / 26x2.1"
  • Vekt
    Hvor mye veier denne sykkelen? Dette er et vanlig spørsmål, men sannheten er at det ikke finnes noen bransjestandard for å sette en vekt. Vi i Giant tror den eneste måten å virkelig finne vekten av en bestemt sykkel er å dra til din lokale forhandler.

Alle spesifikasjonene kan endres uten varsel.
