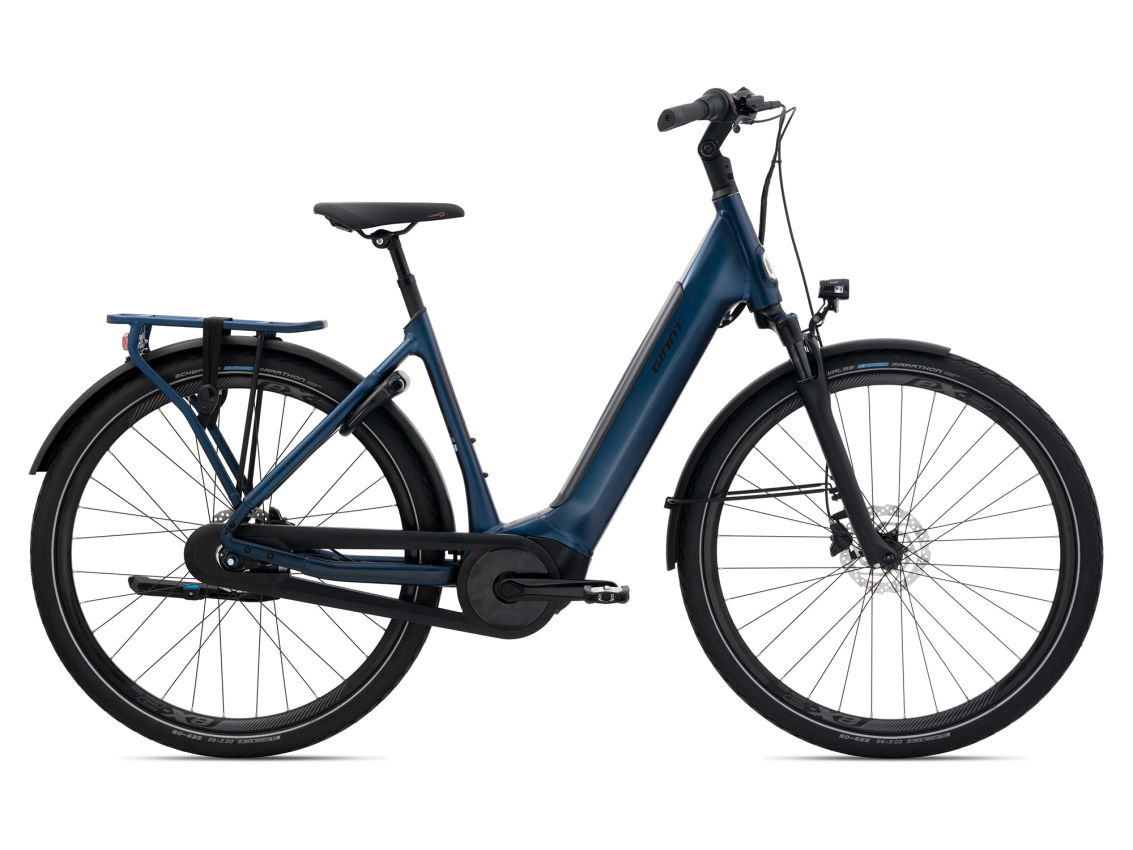

DailyTour E+ 1 Dash RT LDS

Similar Products

:

DailyTour E+ 2 Dash BD GTS

This versatile and practical E-bike is ideal for daily commuting and other adventures. It has automatic pedaling support and all the built-in features you can think of, including a kickstand, lights, fenders and racks.

Techs & Features

ALUXX SL Aluminum Technology
Energypak
E+ System
RideControl Dash
Syncdrive Core
Smart Assist

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      155 cm5’1”  to 165 cm5’5”
  • S
      163 cm5’4”  to 174 cm5’9”
  • M
      171 cm5’7”  to 182 cm6’0”
  • L
      179 cm5’10”  to 190 cm6’3”
  • XL
      187 cm6’2”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMLXL
ASeat Tube Length (mm) (inch)40015,745017,750019,755021,760023,6
BSeat Tube Angle (degrees)72,5°72,5°72,0°72,0°72,0°
CTop Tube Length (mm) (inch)57022,458022,859523,46102463024,8
DHead Tube Length (mm) (inch)1606,31606,31706,71857,31857,3
EHead Tube Angle (degrees)69,5°69,5°69,5°69,5°69,5°
FFork Rake (mm) (inch)441,7441,7441,7441,7441,7
GTrail (mm) (inch)86,93,486,93,486,93,486,93,486,93,4
HWheelbase (mm) (inch)109843,2110843,6111744113344,6115345,4
IChain Stay Length (mm) (inch)47018,547018,547018,547018,547018,5
JBottom Bracket Drop (mm) (inch)602,4602,4602,4602,4602,4
KStack (mm) (inch)634256342564325,365725,965725,9
LReach (mm) (inch)37014,63801538615,239615,641616,4
MStand Over Height (mm) (inch)41516,34071640015,739515,685533,7
NHandlebar Width (mm) (inch)67026,467026,467026,467026,467026,4
OStem Length (mm) (inch)903,5903,5903,5903,5903,5
PCrank Length (mm) (inch)1706,71706,71706,71706,71706,7
QWheel Size 700C700C700C700C700C
Specs
  • Motor
    SyncDrive Core, 50Nm powered by Yamaha
  • Controller
    RideControl Dash
  • Display
    RideControl Dash, full color lcd screen
  • Battery
    EnergyPak Smart 625
  • Sizes
    XS, S, M, L
  • Colors
    Metallic Navy
  • Frame
    ALUXX SL Aluminium
  • Fork
    SR Suntour NEX E25, lockout, 63mm , 15AQ
  • Shock
    n/a
  • Handlebar
    Giant Contour GT, cable integrated, 30° back sweep 31.8mm
  • Grips
    Connect Ergo Max Sweep
  • Stem
    Giant Contour, EVO display integrated, adjustable
  • Seatpost
    Suspension 2-bolt micro-adjustable, 30,9x270mm
  • Saddle
    Selle Royal Look-In gel
  • Pedals
    Aluminum, VP-183
  • Shifters
    Shimano Nexus 8speed Revoshift
  • Front Derailleur
    -
  • Rear Derailleur
    -
  • Brakes
    Tektro HD-M285 hydraulic disc
  • Brake Levers
    Tektro HD-M285
  • Cassette
    18T
  • Chain
    KMC E.1 Turbo, EcoProteq, e-bike optimized
  • Crankset
    Giant aluminum, 38T
  • Bottom Bracket
    n/a
  • Rims
    Giant eX 2, Tubeless Ready, 700c Aluminium
  • Hubs
    Shimano HB-MT400 100x15mm thru-axle Disc [F], Shimano Nexus 8 Coaster / Disc brake [R]
  • Spokes
    Sapim Race [F], Sapim Strong [R]
  • Tires
    Schwalbe Marathon 622x50 Green Guard
  • Lighting
    Axa Blueline 30 front LED Axa Blueline rear LED
  • Lock
    -
  • Carrier
    MIK rack. System bag & basket compatible
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All specifications listed are subject to change without notice.
