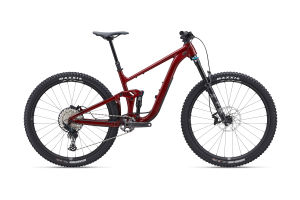

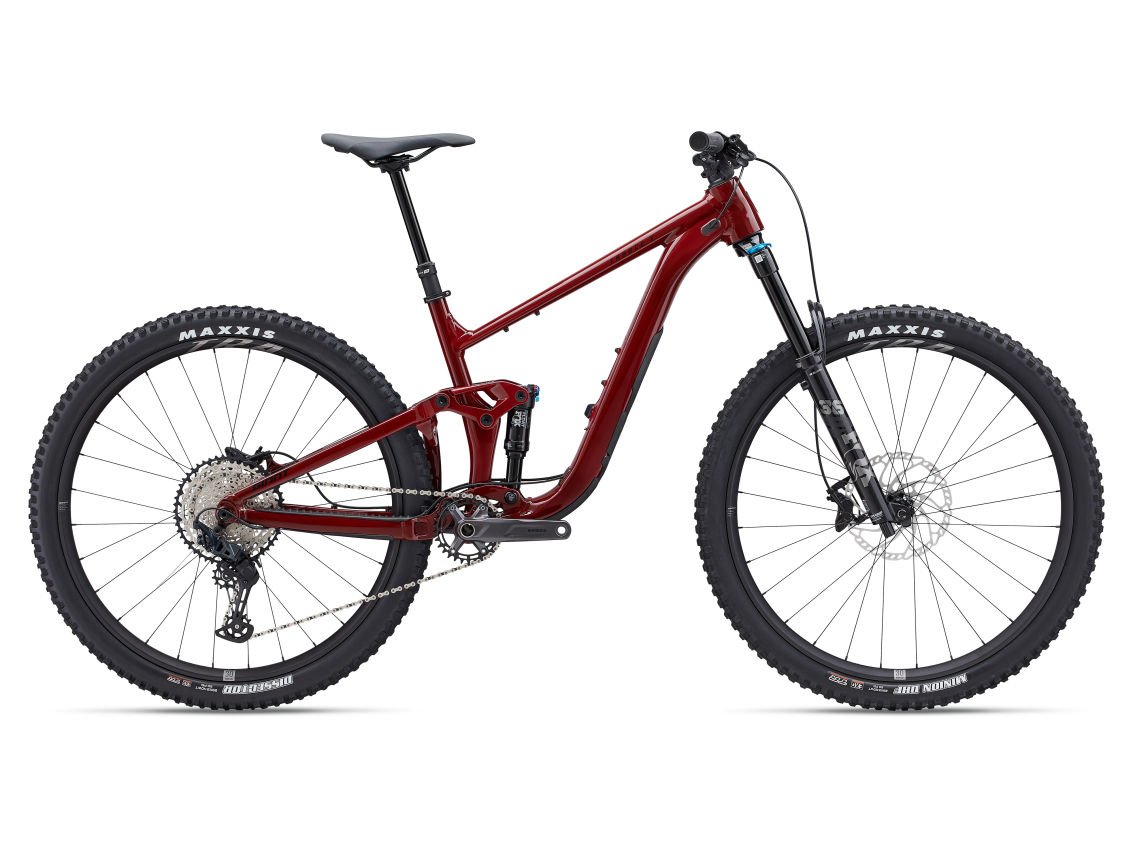

Trance X 1
₩4,590,000
Find your flow on technical trails. With adjustable geometry, the option to change rear wheel size, and a new 140mm Maestro rear suspension setup, this versatile trail bike steamrolls singletrack with confidence and control.
핵심 성능 요소
Updated suspension
A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.
Adjustable trail geometry
A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.
Rear wheel options
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimizes stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tire clearance in the rear. Some riders favor this “mullet” setup for riding steep, technical terrain.
하이라이트
The all-new frameset is engineered with a super strong and lightweight ALUXX SL aluminum chassis and updated Maestro suspension system. With 140mm of rear travel and a 150mm fork, it gobbles up rocks, roots and ruts with ease. The frame is equipped with two, three-position flip chips for the ultimate in adjustability. The rear flip chip, located on the Maestro rocker arm, lets you change frame geometry and switch the standard 29-inch rear wheel to 27.5 if you prefer. A second flip chip at the headset provides 10mm of reach adjustment. New, integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage, and protection on the down tube prevents damage from trail debris and transportation.
1
Aluxx SL Aluminum
This high-performance, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset features advanced welding technologies for a high-performance ride quality.
2
Maestro Suspension
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system.
3
Advanced Forged Composite
A high-pressure molding process is used to produce a complex shaped carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.
4
Adjustable Frame Geometry
Flip chip adjustability lets you switch between two settings depending on the terrain you are riding. You can select a 64.4, 64.8 or 65.1-degree head angle and corresponding 76.8, 77.2 or 77.5-degree seat tube angle, resulting in a 40, 35 or 30mm bottom bracket drop (size medium).
5
Reach Adjust
Three-position flip chip at the headset lets riders dial in cockpit dimensions and geometry. This modular system helps fine tune the bike’s handling and rider position using two positioning chips that can be removed and swapped to achieve a Short (-5mm), Mid (0mm) or Long (+5mm) reach.
6
Rear Wheel Options
Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling and feel.
7
Frame Storage
New integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage.
8
MegaDrive
A massively oversized bottom bracket area features a fully integrated, 92mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.
9
Integrated Frame Protection
The driveside chainstay and down tube feature more robust protection against rocks and other trail debris compared to the previous generation.
10
Boost Technology
Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
11
Giant Tubeless System
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
비디오
Trance X - Master The Mountain
Trance X - Master The Mountain
Trance X - Frame Storage
Trance X - Frame Storage
Trance X - Adjustability
Trance X - Adjustability
기술
Advanced Forged Composite Technology
복잡한 모양의 카본 부품들을 생산하기 위해 사용되는 최첨단 고압 주형 공정으로, 기존의 알루미늄 부품보다 견고하고, 내구성이 우수합니다.
ALUXX SL Aluminum Technology
소재 • 우수한 퍼포먼스 무게 대비 강성을 위해 6011 합금을 사용합니다. 성형 방식 • 더블 버팅 공정은 우수한 강성은 유지하면서 무게는 더욱 가볍게 합니다. • 알루미늄 튜브의 형태를 만들고 다듬기 위한 방식에는 프레스 폼(직접적인 기계 압력을 사용하는 방식), 웜 폼(고압의 공기를 주입하는 방식), 그리고 일부 모델들에 한해 적용하는 플루이드 폼이 있습니다. 용접 기술 • 최적화된 강성과 무게를 만들어내기 위해 전략적으로 스무드 용접방식(Smooth Weld)을 도입한 스탠다드 용접방식(Standard Weld)으로 접합하였습니다.
Maestro Suspension Technology
전략적으로 위치한 4개의 피봇 포인트와 2개의 링크가 함께 작동하여 하나의 플로팅 피봇 포인트를 형성한, 트레일에서 가장 효율적이고 독립적이며 역동적인 서스펜션 피봇 시스템입니다.
OverDrive
정확한 프론트 엔드 스티어링 퍼포먼스를 제공하기 위해 고안된 대구경 헤드셋베어링(로드용 상단 1 1/8”, 하단 1 1/4”, 산악용 상단 1 1/8”, 하단 1 1/2”)과 테이퍼 형상의 스티어러 튜브가 접합부에서 작동하여 최적화된 스티어러 강성을 가져다줍니다.
Tubeless System
낮은 공기 압력으로 달릴 수 있는 튜브리스 림은 타이어가 도로 지면과 지형에 더 잘 순응하게 만들어 접지력을 향상시키고 회전력 저항을 낮추었으며, 펑크 위험을 감소시킵니다.
Flip Chip - Maestro
플립 칩을 사용하여 Maestro가 장착된 MTB의 지오메트리를 라이딩 스타일과 지형에 맞춰 변경할 수 있습니다. 상단 링크에 위치한 장치(오프셋, 2-포지션)로 헤드튜브 및 싯튜브 각도와 B.B의 높이를 조절합니다.
사이즈 가이드 및 지오메트리
사이즈표는 참고용이며, GIANT 또는 Liv 대리점과 상담, 문의하여 정확한 사이즈를 확인하시기 바랍니다.
적용 가능한 범위는 국가마다 다를 수 있습니다.
- S
- 163 cm5’4”
172 cm5’8”
- M
- 171 cm5’7” 180 cm5’11”
| S | M | |
|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | |
| A 시트 튜브 길이 (mm) (inch) | 40015.7 | 42516.7 |
| A1 Seat Post Insertion Depth (mm) (inch) | 28011 | 30512 |
| B 시트 튜브 각도 (degrees) | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° |
| C 탑튜브 길이 (mm) (inch) | 57122.5 | 57022.4 | 56922.4 | 60223.7 | 60123.7 | 60023.6 |
| D 헤드 튜브 길이 (mm) (inch) | 1003.9 | 1054.1 |
| E 헤드튜브 각도 (degrees) | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° |
| F 포크 레이크 (mm) (inch) | 441.7 | 441.7 |
| G 트레일 (mm) (inch) | 134.15.3 | 131.35.2 | 128.45 | 1345.3 | 131.35.2 | 128.55 |
| H 휠베이스 (mm) (inch) | 119046.9 | 119046.9 | 118946.8 | 122248.1 | 122248.1 | 122148.1 |
| I 체인스테이 길이 (mm) (inch) | 44017.3 | 43917.3 | 43817.2 | 44017.3 | 43917.3 | 43817.2 |
| J BB (mm) (inch) | 401.6 | 351.4 | 301.2 | 401.6 | 351.4 | 301.2 |
| K 스택 (mm) (inch) | 61724.3 | 61424.2 | 61124.1 | 62124.4 | 61924.4 | 61624.3 |
| L 범위 (mm) (inch) | 42616.8 | 43016.9 | 43417.1 | 45618 | 46018.1 | 46418.3 |
| M 스탠드 오버 (mm) (inch) | 73228.8 | 73729 | 74229.2 | 74629.4 | 75029.5 | 75529.7 |
| N 핸들바 폭 (mm) (inch) | 80031.5 | 80031.5 |
| O 스템 길이 (mm) (inch) | 401.6 | 401.6 |
| P 크랭크 길이 (mm) (inch) | 1656.5 | 1706.7 |
| Q 휠사이즈 | [F] 29" [R | [F] 29" [R |
상기 스펙은 글로벌 스펙이며, 실제 구성과 차이가 있을 수 있습니다. 정확한 스펙은 매장을 방문하여 확인해주시기 바랍니다.
