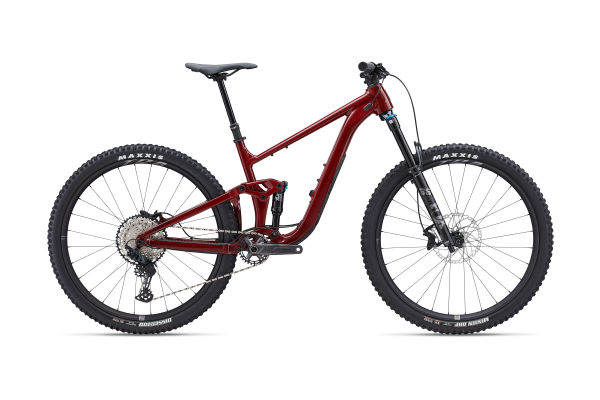

Trance X
Master The Mountain
Find your flow on technical trails. With adjustable geometry, the option to change rear wheel size, and a new 140mm Maestro rear suspension setup, this versatile trail bike steamrolls singletrack with confidence and control.
핵심 성능 요소
업데이트된 서스펜션
새로운 마에스트로(Maestro) 리어 서스펜션 시스템은 트레일 라이더에게 140mm의 리어 트래블을 제공합니다. 트러니언 마운트 샥과 어드밴스드 포지드 카본(Advanced Forged Composite) 로커 암이 결합되어 더 길어진 스트로크로 부드럽고 민첩한 주행감을 선사하며, 프레임 강성을 높여 더욱 정밀한 제어를 가능하게 합니다. 리어 서스펜션은 150mm 트래블 포크와 짝을 이루어 테크니컬한 싱글트랙 코스에서 뛰어난 자신감과 제어력을 선사합니다.
가변형 트레일 지오메트리
3-포지션 마에스트로 플립칩(Flip chip)을 통해 라이더는 자신의 라이딩 스타일과 지형에 맞춰 프레임 지오메트리를 자유롭게 조절할 수 있습니다. 하이(High) 세팅은 지상고를 높여 좁고 테크니컬한 지형에 적합하며, 로우(Low) 세팅은 헤드 튜브 각도를 더 눕히고 바텀 브래킷을 낮춰 고속 주행 시 안정적인 핸들링을 제공합니다. 미들(Middle) 세팅은 중립적인 라이딩 포지션을 제공합니다. 이에 더해, 신형 헤드셋 플립칩이 적용되어 라이더가 원하는 리치(Reach)를 손쉽게 조정하고 최적의 포지션을 구현할 수 있습니다.
리어 휠 옵션
모든 모델은 앞뒤 29인치 휠이 기본 장착되어 출고되지만, 플립칩을 조절하여 27.5인치 리어 휠을 조합한 혼합 휠(멀릿) 세팅으로 변경할 수 있습니다. 순정 29인치 리어 휠은 주행 안정성과 장애물 돌파력(Roll-over)을 극대화하며, 27.5인치 리어 휠은 더욱 민첩하고 경쾌한 반응성과 안장 하단 클리어런스를 확보해 줍니다. 급경사나 테크니컬한 지형을 주행할 때 이러한 멀릿(Mullet) 세팅을 선호하는 라이더들에게 매우 유용한 옵션입니다.
하이라이트
The all-new frameset is engineered with a super strong and lightweight ALUXX SL aluminum chassis and updated Maestro suspension system. With 140mm of rear travel and a 150mm fork, it gobbles up rocks, roots and ruts with ease. The frame is equipped with two, three-position flip chips for the ultimate in adjustability. The rear flip chip, located on the Maestro rocker arm, lets you change frame geometry and switch the standard 29-inch rear wheel to 27.5 if you prefer. A second flip chip at the headset provides 10mm of reach adjustment. New, integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage, and protection on the down tube prevents damage from trail debris and transportation.
1
Aluxx SL Aluminum
This high-performance, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset features advanced welding technologies for a high-performance ride quality.
2
Maestro Suspension
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system.
3
Advanced Forged Composite
A high-pressure molding process is used to produce a complex shaped carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.
4
Adjustable Frame Geometry
Flip chip adjustability lets you switch between two settings depending on the terrain you are riding. You can select a 64.4, 64.8 or 65.1-degree head angle and corresponding 76.8, 77.2 or 77.5-degree seat tube angle, resulting in a 40, 35 or 30mm bottom bracket drop (size medium).
5
Reach Adjust
Three-position flip chip at the headset lets riders dial in cockpit dimensions and geometry. This modular system helps fine tune the bike’s handling and rider position using two positioning chips that can be removed and swapped to achieve a Short (-5mm), Mid (0mm) or Long (+5mm) reach.
6
Rear Wheel Options
Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling and feel.
7
Frame Storage
New integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage.
8
MegaDrive
A massively oversized bottom bracket area features a fully integrated, 92mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.
9
Integrated Frame Protection
The driveside chainstay and down tube feature more robust protection against rocks and other trail debris compared to the previous generation.
10
Boost Technology
Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
11
Giant Tubeless System
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
