Il nuovo telaio Reign Adv Pro è stato interamente riprogettato e aggiornato, totalmente nuovo è pronto a correre nei campionati enduro e guadagnarsi il gradino più alto del podio.
Una nuova configurazione delle sospensioni unita alla possibilità di cambiare la geometria, è stata sviluppata, testata e stressata ai massimi livelli nel circuito EWS.
I rider ora possono scegliere una ruota posteriore da 29'' o 27,5'', abbinata a un'anteriore da 29''. L'opzione più grande da 29 pollici migliora la stabilità e la capacità di galleggiare sopra gli ostacoli, mentre l'opzione da 27,5 offre più agilità sui trail tecnici.
Un ''piccolo'' cambiamento in grado di modificare interamente l'anima della bici e seguire ogni tua esigenza.

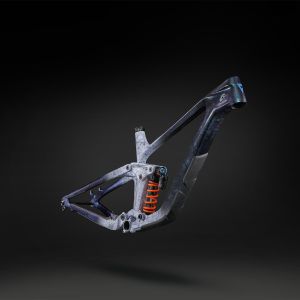

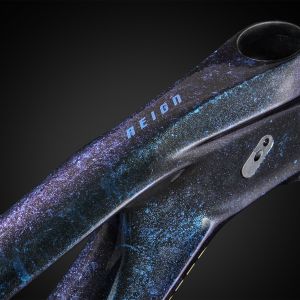

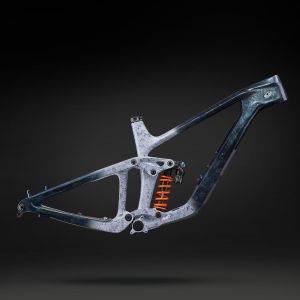

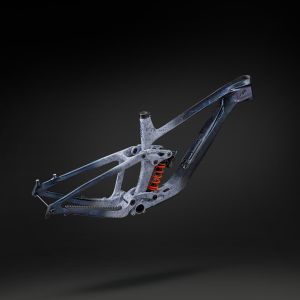

Mainframe and rear swingarm crafted with high-performance grade raw carbon fiber and custom resin that’s custom made in Giant’s own composite factory. Handcrafted monocoque construction makes it extremely lightweight, stiff and compliant (39 percent additional rear-end stiffness over previous generation).
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
A state-of-the-art high-pressure molding process is used to produce the carbon fiber upper rocker link that’s lighter, stiffer and stronger than aluminum.
Frame geometry can be adjusted between three settings to match riding style and terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium).
Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The stock 29-inch rear wheel optimizes stability and roll-over capabilities, while a 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.
Wider hub spacing (110mm front / 148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
New shock mount produces a lower leverage ratio for increased pedaling and braking efficiency, plus a lower center of gravity and shorter chainstays for improved handling, climbing and agility.
All new integrated down tube storage provides convenient carrying capacity for on-trail essentials.
A massively oversized bottom bracket area features a fully integrated, 92mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

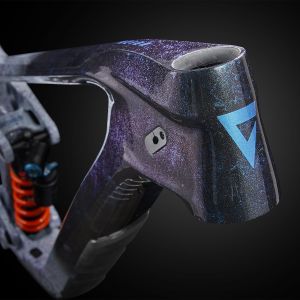

Giant’s proven oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
