The frame is made with 6061 alloy and single-butted tubes to produce a strong, durable chassis that’s ideal for rough roads, gravel and dirt.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

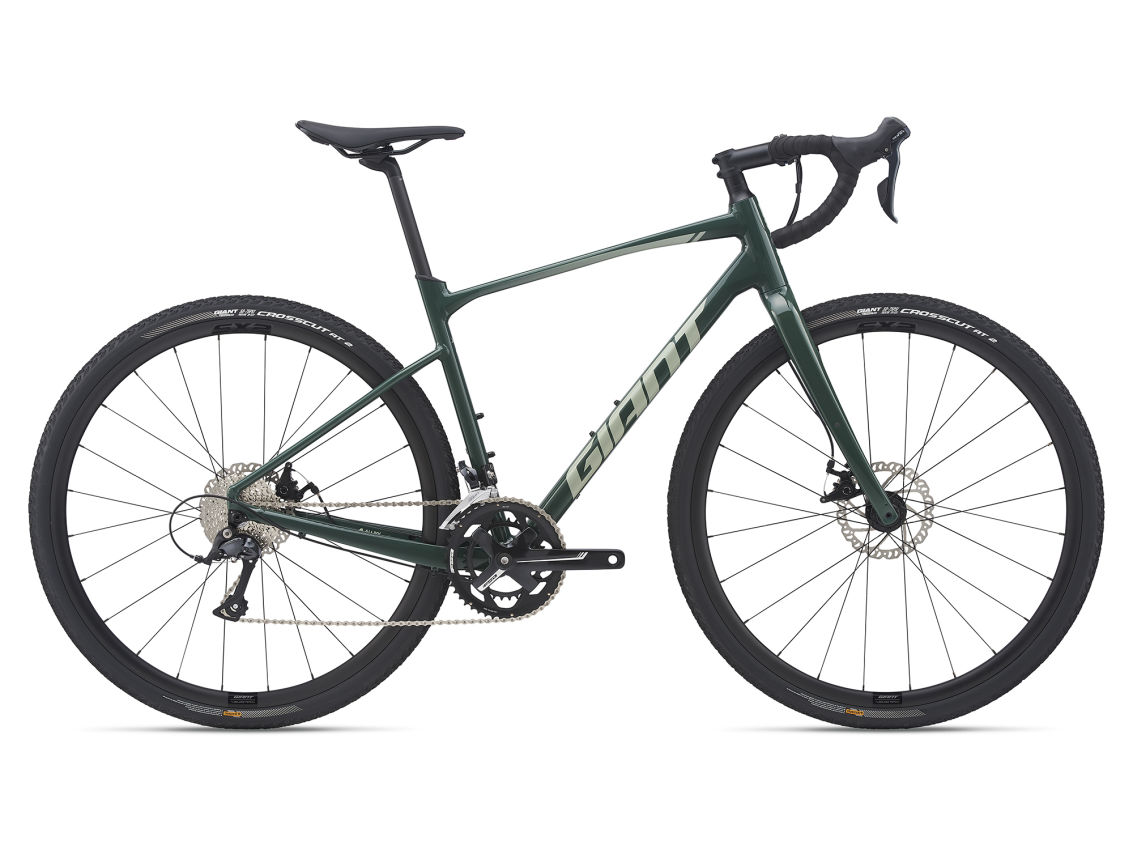

Revolt 2
2021
1.199 €
Completa la tua esperienza di guida
Gravel, dirt and scenic backroads offer some of the best opportunities for freedom and adventure. This lightweight aluminum all-rounder is the perfect way to get away from it all and explore the places you’ve always thought about but never ridden.
Whether you ride dirt roads, trails, gravel or a mix of everything, you want a bike that floats right through it, keeps you in control, and is comfortable for long days in the saddle. The Revolt delivers on all accounts. It features a lightweight ALUXX aluminum frame and composite fork, each engineered to balance stiffness and compliance. It comes with integrated components including the D-Fuse composite seatpost and Contact XR D-Fuse handlebar to further absorb road shocks and vibrations. The frame is integrated for disc brakes and it has clearance for larger tires up to 45mm.
Key Performance Factors
Versatile gravel geometry
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. The result is confident speed in all situations, from out-of-the-saddle climbs to rugged dirt descents.
Tuned compliance
Innovative Contact XR D-Fuse handlebar and D-Fuse seatpost work as a system to help absorb shock without sacrificing the stiffness needed for aggressive road performance. Added frame clearance for high-volume tires up to 45mm helps smooth out rough roads, gravel and dirt.
All-rounder efficiency
The ALUXX aluminum frame delivers efficient pedaling power and all-round versatility, giving you a smooth, fast ride quality on variable riding surfaces.
Highlights
Whether you ride dirt roads, trails, gravel or a mix of everything, you want a bike that floats right through it, keeps you in control, and is comfortable for long days in the saddle. The Revolt delivers on all accounts. It features a lightweight ALUXX aluminum frame and composite fork, each engineered to balance stiffness and compliance. It comes with integrated components including the D-Fuse composite seatpost and Contact XR D-Fuse handlebar to further absorb road shocks and vibrations. The frame is integrated for disc brakes and it has clearance for larger tires up to 45mm.
1
ALUXX ALUMINUM
2
Advanced Composite Fork
Composite fork with an OverDrive tapered steer tube absorbs road shock and vibrations and allows for added tire clearance up to 45c.
3
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
4
D-Fuse Seatpost
The proprietary “D” shaped aluminum seatpost dampens vibration, resulting in a smooth, compliant ride.
5
CONTACT XR D-FUSE HANDLEBAR
Slightly flared drop handlebar features D-shaped tubing that offers wider hand positioning and absorbs road shocks.
6
Giant Tubeless System
Integrated tubeless wheelset and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
7
PowerCore
Oversized bottom-bracket/chainstay area features a fully integrated 86mm wide bottom bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Tecnologie
OverDrive
E’ la tecnologia marchio di fabbrica Giant che offre un tubo forcella conico sovradimensionato. Progettata per offrire maggiore solidità e precisione alla serie sterzo, presenta cuscinetti maggiorati in misura 1 1/4” (inferiore) - 1 1/8” (superiore) sulle biciclette da strada e 1 1/2” (inferiore) - 1 1/8” (superiore) per i modelli fuoristrada.
D-Fuse Technology
Il reggisella in composito a forma di “D” smorza le vibrazioni, garantendo una guida fluida e conforme.
Tubeless System
Sistema di pneumatici pratico e affdabile che offre maggiore effcienza, comfort e controllo.
ALUXX Aluminum Technology
Questo materiale in alluminio ad alte prestazioni e all’avanguardia è realizzato prevalentemente in lega 6011 e offre i migliori rapporti resistenza-peso. I telai caratterizzati da questa tecnologia dispongono inoltre di ulteriori tecnologie di saldatura esclusive per una qualità di guida ad alte prestazioni.
Guida taglie e geometrie
La tabella taglie va usata soltanto come referenza. Per favore controlla tramite il tuo rivenditore autorizzato Giant/LIV per determinare la tua taglia corretta. Le taglie disponibli possono variare da paese a paese.
- XS
- 155 cm5’1”
166 cm5’5”
- S
- 159 cm5’3” 171 cm5’7”
- M
- 169 cm5’7” 181 cm5’11”
- ML
- 174 cm5’9” 186 cm6’1”
- L
- 179 cm5’10” 191 cm6’3”
- XL
- 189 cm6’2” 200 cm6’7”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Lunghezza Tubo Sella (mm) (inch) | 43016,9 | 45017,7 | 47018,5 | 49019,3 | 51020,1 | 53020,9 |
| B | Angolo Tubo Sella (degrees) | 73,5° | 73,5° | 73,5° | 73,0° | 72,5° | 72,5° |
| C | Lunghezza Tubo Orizzontale (mm) (inch) | 53020,9 | 54021,3 | 55021,7 | 56522,2 | 57522,6 | 59023,2 |
| D | Lunghezza Tubo Sterzo (mm) (inch) | 1254,9 | 1355,3 | 1505,9 | 1656,5 | 1807,1 | 1957,7 |
| E | Angolo Sterzo (degrees) | 70,5° | 70,5° | 70,5° | 71,0° | 71,0° | 71,0° |
| F | Rake Forcella (mm) (inch) | 502 | 502 | 502 | 502 | 502 | 502 |
| G | Avancorsa (mm) (inch) | 753 | 753 | 753 | 71,62,8 | 71,62,8 | 71,62,8 |
| H | Interasse (mm) (inch) | 101940,1 | 102540,4 | 103640,8 | 104141 | 105141,4 | 106742 |
| I | Lunghezza Carro Posteriore (mm) (inch) | 43016,9 | 43016,9 | 43016,9 | 43016,9 | 43016,9 | 43016,9 |
| J | Drop Movimento Centrale (mm) (inch) | 702,8 | 702,8 | 702,8 | 702,8 | 702,8 | 702,8 |
| K | Stack (mm) (inch) | 54821,6 | 55822 | 57222,5 | 58823,1 | 60123,7 | 61524,2 |
| L | Reach (mm) (inch) | 37314,7 | 37514,8 | 38115 | 38515,2 | 39115,4 | 40215,8 |
| M | Altezza stand over (mm) (inch) | 71628,2 | 73128,8 | 74929,5 | 76530,1 | 78330,8 | 80031,5 |
| N | Larghezza Manubrio c/c (mm) (inch) | 40015,7 | 42016,5 | 44017,3 | 44017,3 | 46018,1 | 46018,1 |
| O | Lunghezza Attacco Manubrio (mm) (inch) | 702,8 | 803,1 | 903,5 | 1003,9 | 1003,9 | 1104,3 |
| P | Lunghezza Pedivella (mm) (inch) | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 | 1756,9 | 1756,9 |
| Q | Dimensione Ruote | 700C | 700C | 700C | 700C | 700C | 700C |
Le specifiche tecniche e i colori sono soggette a variazioni senza obbligo di preavviso. Verifica la disponibilità con il tuo rivenditore Giant e Liv di fiducia.
