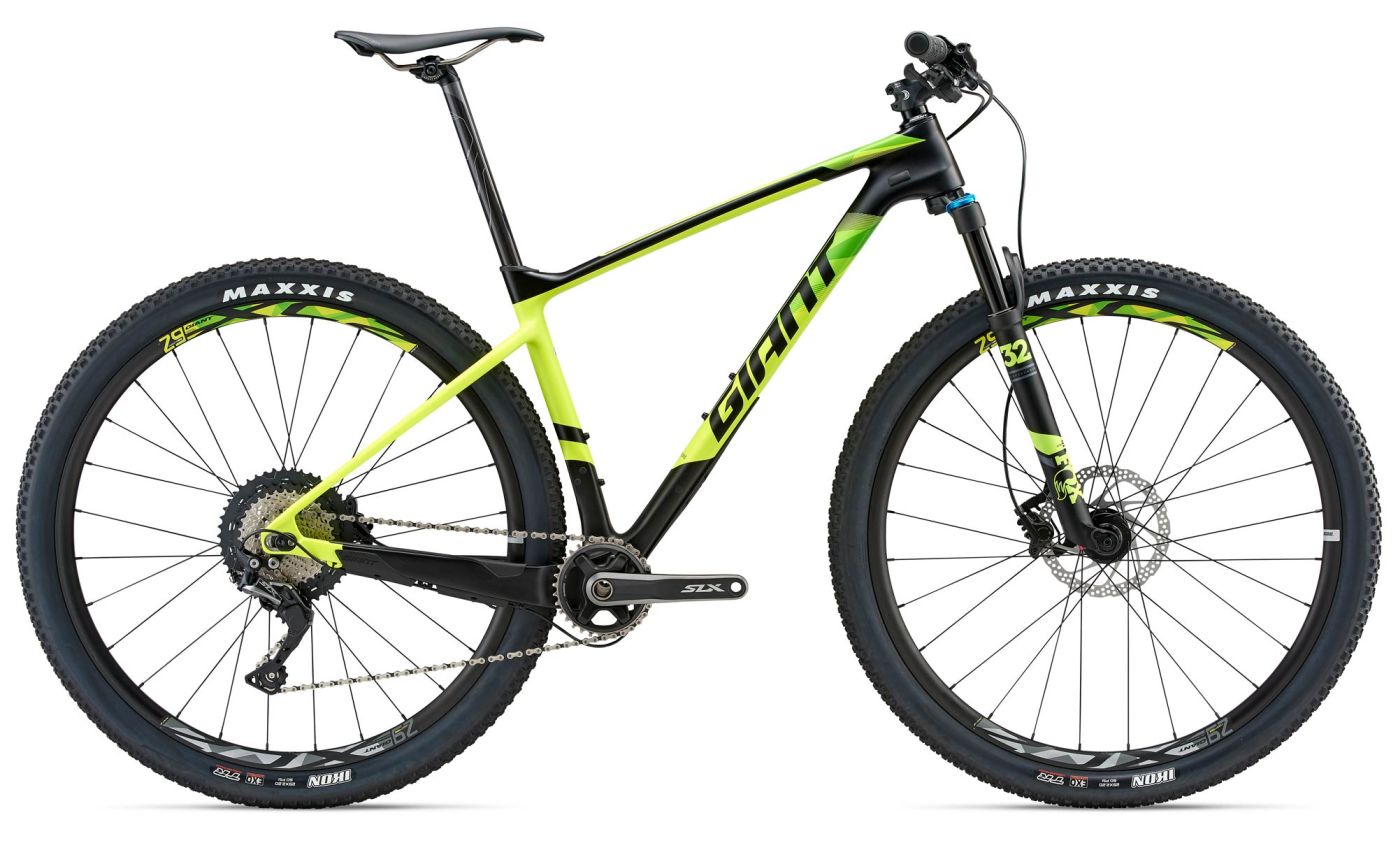

XTC Advanced 29er 2
2018
SEBESSÉG, FINOM IRÁNYÍTHATÓSÁG ÉS EGYEDÜLÁLLÓ SOKOLDALÚSÁG. EZT NYÚJTJA A 29-ES XTC.
Ez a vadonatúj, sokoldalú merevfarú kerékpár egy könnyű Advanced karbon vázra épül. 29-esként használva egy igazi versenygép A kerekeit kicserélheted 27.5+-ra*, de akár singlespeed-ként is használhatod, így egy igazi mindenre alkalmas XC gépet kapsz, Szélesebb Boost agyakkal rendelkezik (110 elöl/148 hátul), ami javítja a kerekek merevségét a jobb irányíthatóság érdekében, szélesebb gumik használatát teszi lehetővé és optimalizálja a lánc futását. A 27.2-es nyeregcső kényelmet biztosít, a MegaDrive alsócső és felsőcső maximális vázmerevséget ad, a PowerCore középcsapágyház pedig ultra-hatékony erőátvitelt tesz lehetővé. *A villa kompatibilitást először ellenőrizd egy Giant kereskedőnél.
- Advanced-grade composite frame with horizontal dropouts
- Fox 32 Float SC Performance 100mm-travel fork with Boost 15mm thru-axle
- Shimano SLX 1x11-speed drivetrain
- Shimano MT500 hydraulic disc brakes
- Giant XC-1 Disc wheelset with Maxxis Ikon tubeless tires
- Color: Matt/Carbon/Neon Yellow
Techs & Features
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 162 cm5’4”
173 cm5’8”
- M
- 173 cm5’8” 180 cm5’11”
- L
- 180 cm5’11” 188 cm6’2”
- XL
- 188 cm6’2” 194 cm6’4”
| S | M | L | XL | |
|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 39015.4 | 44017.3 | 49019.3 | 53521.1 |
| B Seat Tube Angle (degrees) | 73.0° | 72.5° | 72.0° | 72.0° |
| C Top Tube Length (mm) (inch) | 58523 | 60523.8 | 62524.6 | 64525.4 |
| D Head Tube Length (mm) (inch) | 953.7 | 953.7 | 1054.1 | 1154.5 |
| E Head Tube Angle (degrees) | 70.0° | 70.0° | 70.0° | 70.0° |
| F Fork Rake (mm) (inch) | 512 | 512 | 512 | 512 |
| G Trail (mm) (inch) | 823.2 | 823.2 | 823.2 | 823.2 |
| H Wheelbase (mm) (inch) | 107442.3 | 108842.8 | 110243.4 | 112244.2 |
| I Chain Stay Length (mm) (inch) | 42516.7 | 42516.7 | 42516.7 | 42516.7 |
| J Bottom Bracket Drop (mm) (inch) | 602.4 | 602.4 | 602.4 | 602.4 |
| K Stack (mm) (inch) | 61224.1 | 61224.1 | 62124.4 | 63124.8 |
| L Reach (mm) (inch) | 39815.7 | 41216.2 | 42316.7 | 44017.3 |
| M Stand Over Height (mm) (inch) | 73929.1 | 76530.1 | 79731.4 | 82732.6 |
| N Handlebar Width (mm) (inch) | 75029.5 | 75029.5 | 75029.5 | 75029.5 |
| O Stem Length (mm) (inch) | 602.4 | 702.8 | 803.1 | 903.5 |
| P Crank Length (mm) (inch) | 1706.7 | 1756.9 | 1756.9 | 1756.9 |
| Q Wheel Size | 29" | 29" | 29" | 29" |
The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.
