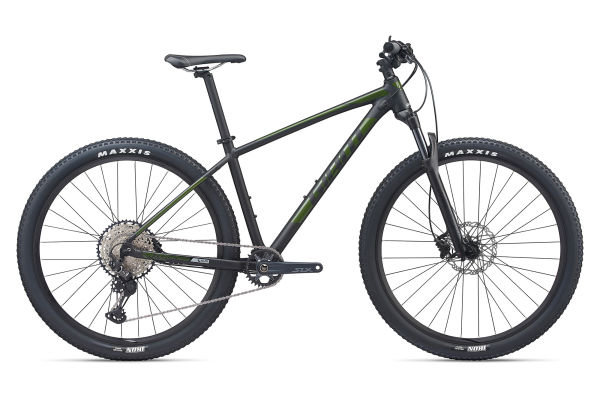

Terrago 29 2

2020

What is my size?

Share

Built on a lightweight ALUXX aluminum frame that features classic hardtail design and the added off-road stability of larger diameter 29-inch wheels, Terrago is a great choice for XC terrain. The frame geometry is specifically designed for its wheel size and 100mm suspension fork. The result is a confident ride that's perfect for XC riders looking to increase their speed and improve their skills on fun singletrack rides.

Download PDF

SizesS, M, L, XL
ColorsOrange
FrameALUXX-Grade Aluminum
ForkSuntour Raidon XC RL-R 29", 100mm, remote lockout
ShockN/A
HandlebarGiant Connect XC, flat, 720x31.8
StemGiant Contact
SeatpostGiant Connect, 30.9
SaddleGiant Connect (upright)
Pedalsplatform
ShiftersShimano SLX
Front DerailleurShimano SLX
Rear DerailleurShimano SLX
BrakesShimano MT200
Brake LeversShimano MT200
CassetteShimano SLX, 10x45
ChainShimano SLX
CranksetShimano SLX, 26/36
Bottom BracketShimano
RimsGiant 27.5" 6061 aluminum, double wall, 21mm inner width
Hubs[F]Shimano Boost 15x110, sealed bearing [R] Shimano Boost 12x142, sealed bearing
Spokesstainless, 14g
TiresMaxxis Ikon 29x2.2, , wire
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

S   163 cm5’4”  to 172 cm5’8”
M   171 cm5’7”  to 180 cm5’11”
L   179 cm5’10”  to 188 cm6’2”
XL   187 cm6’2”  to 198 cm6’6”
bike diagram
  SMLXL
Seat Tube Length (mm) (inch)39015.444017.349019.353521.1
Seat Tube Angle (degrees)73.5°73.5°73.5°73.5°
Top Tube Length (mm) (inch)57722.759923.662224.564625.4
Head Tube Length (mm) (inch)953.71054.11244.91405.5
Head Tube Angle (degrees)69.0°69.0°69.0°69.0°
Fork Rake (mm) (inch)461.8461.8461.8461.8
Trail (mm) (inch)94.33.794.33.794.33.794.33.7
Wheelbase (mm) (inch)111043.7113244.6115745.6118246.5
Chain Stay Length (mm) (inch)45517.945517.945517.945517.9
Bottom Bracket Drop (mm) (inch)552.2552.2552.2552.2
Stack (mm) (inch)60123.761124.162924.864325.3
Reach (mm) (inch)39915.741816.543517.145517.9
Stand Over Height (mm) (inch)72628.676029.979831.483332.8
Handlebar Width (mm) (inch)78030.778030.778030.778030.7
Stem Length (mm) (inch)502602.4702.8803.1
Crank Length (mm) (inch)1706.71756.91756.91756.9
Wheel Size 29"29"29"29"
