TCR Advanced Pro
Team Disc

2021

What is my size?

Share

Climb, corner and descend with unrivaled all-rounder performance. From the mountains to the flats, in all types of conditions, the new TCR Advanced Pro Disc takes it to the next level with a lighter, stiffer frame and new aero-engineered tubing.

The all-new TCR Advanced Pro Disc gives you the lightweight performance to score the KOM plus the confidence to push your limits on technical descents. This podium-seeking all-rounder is re-engineered with an Advanced-grade composite frame that boasts an outstanding stiff-to-weight ratio, along with new aerodynamic tube shaping in the headtube, downtube and fork. It also features added frame and fork clearance for larger diameter tires up to 32mm, making it a versatile race machine for all types of road conditions. With its proven Compact Road geometry, OverDrive 2 front end, flat-mount disc-brake integration and smooth-riding Variant seatpost, this is a race-tuned performer that excels in all aspects of road riding.

Key Performance Factors

Class-leading efficiency

With an outstanding stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles. The result is a TCR that’s faster than ever in sprints and solo situations.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up 32mm.

Highlights

Combining lightweight composite frame engineering with strategic aero tube shaping and integrated disc brakes, the new TCR Advanced Pro Disc series delivers versatile road racing performance. Here’s a look at its key technologies.

TCR Advanced Pro Disc with interactive tooltips

Techs & Features

Advanced Composite Technology
Compact Road Design
OverDrive 2
Power Pro
PowerCore
RideSense Ready
Tubeless System
Variant Seatpost
Hookless Rim Design

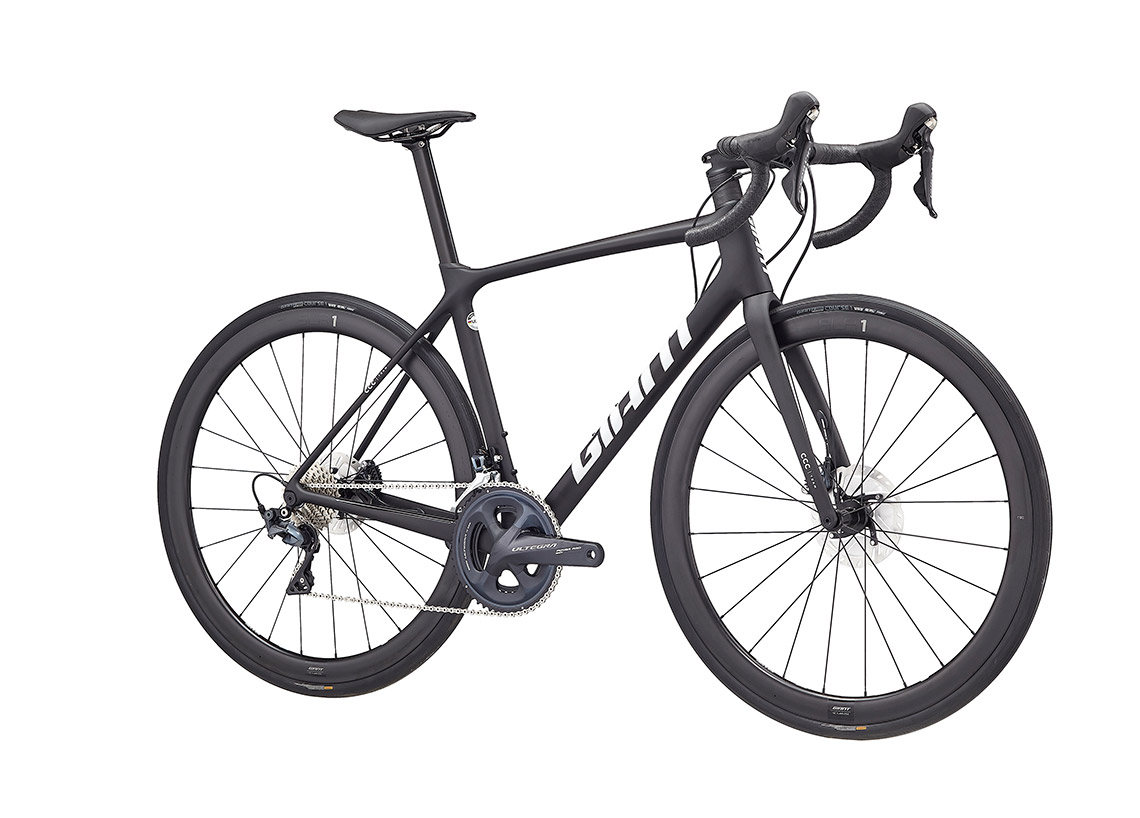

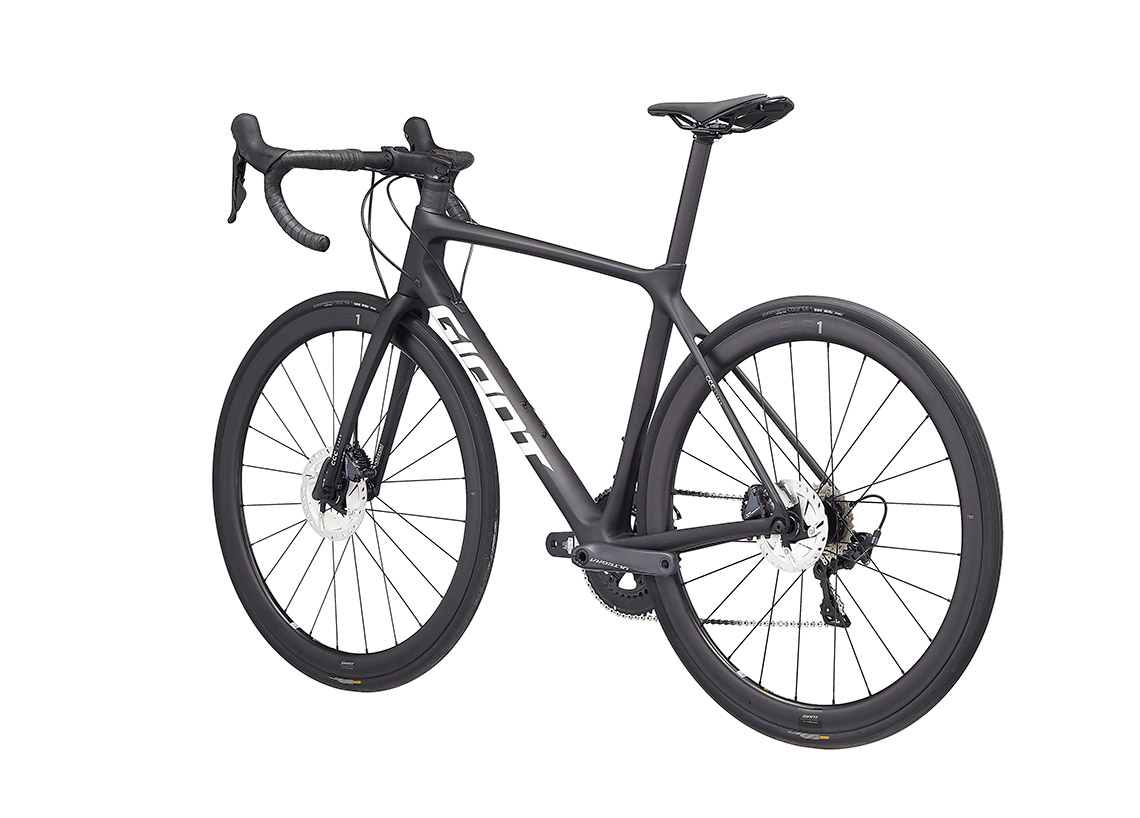

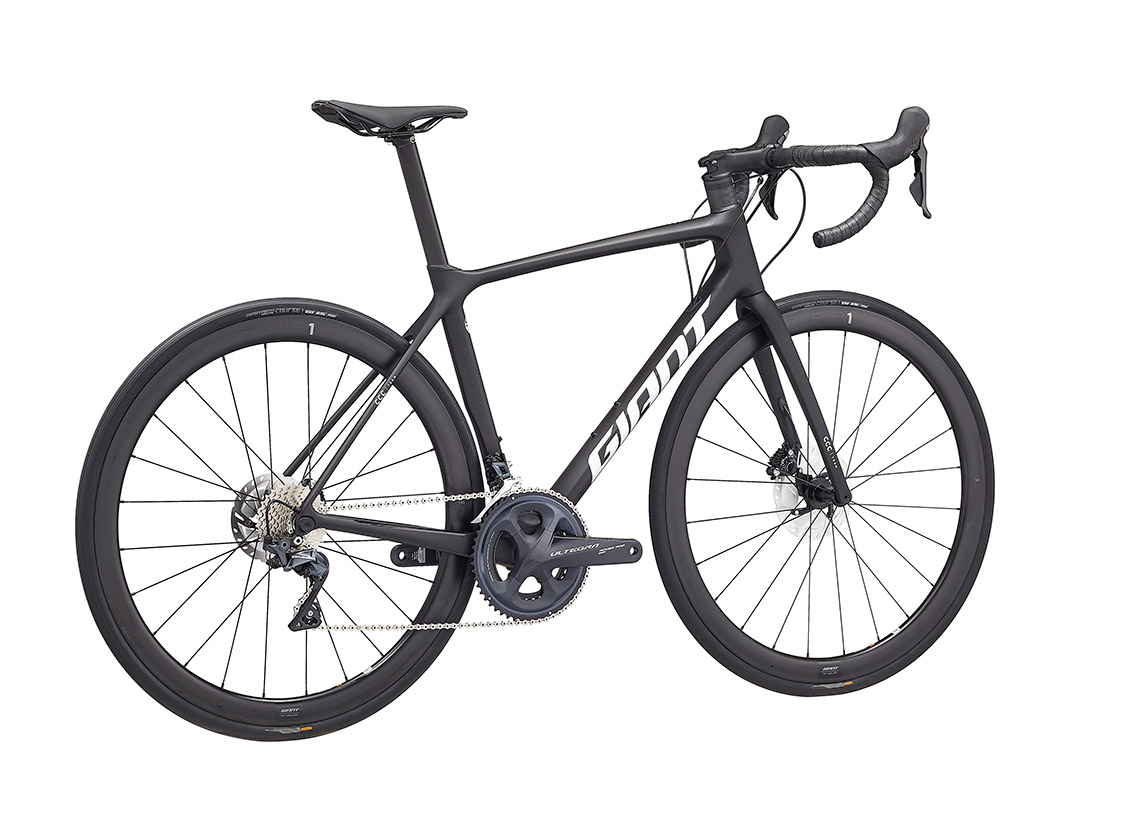

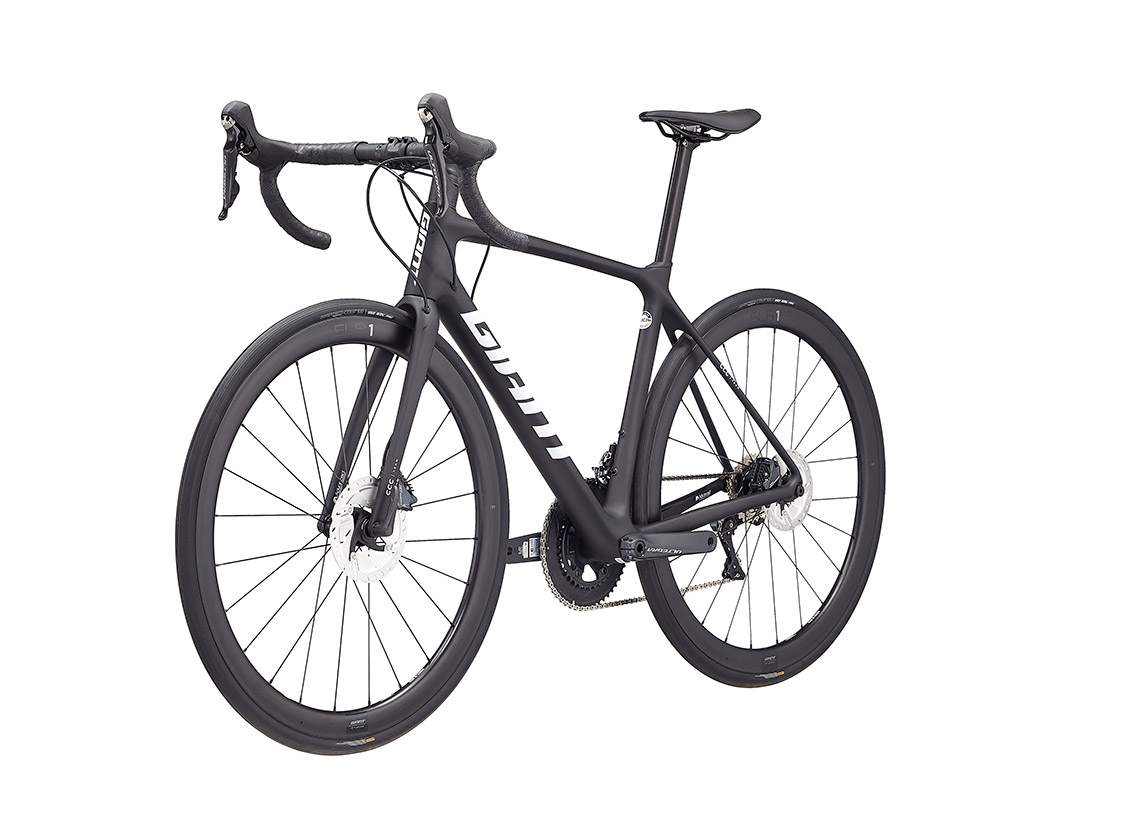

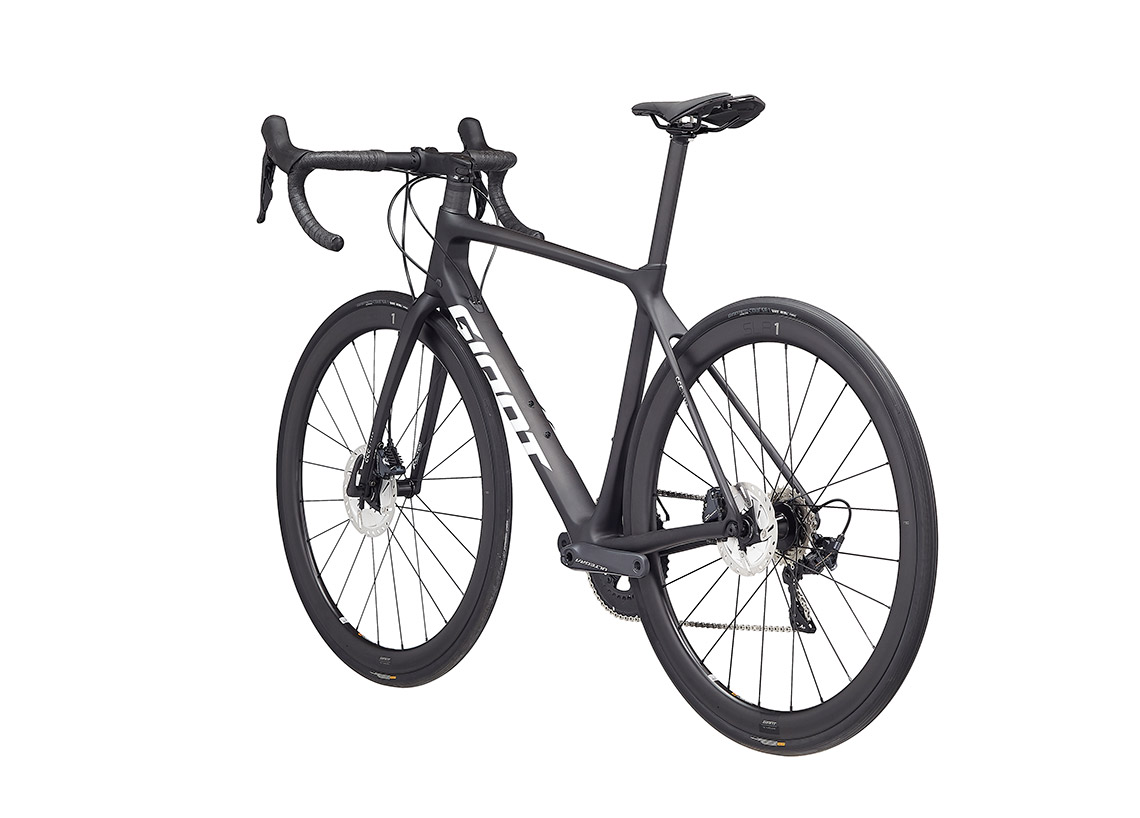

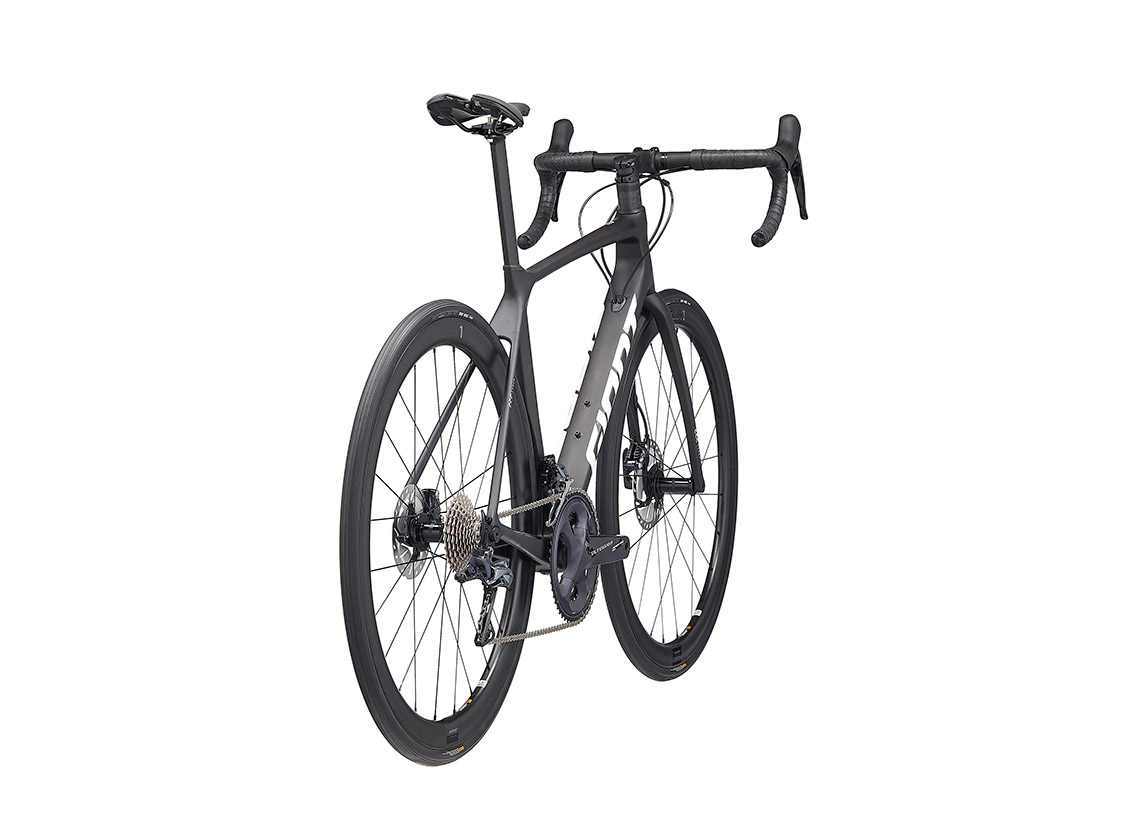

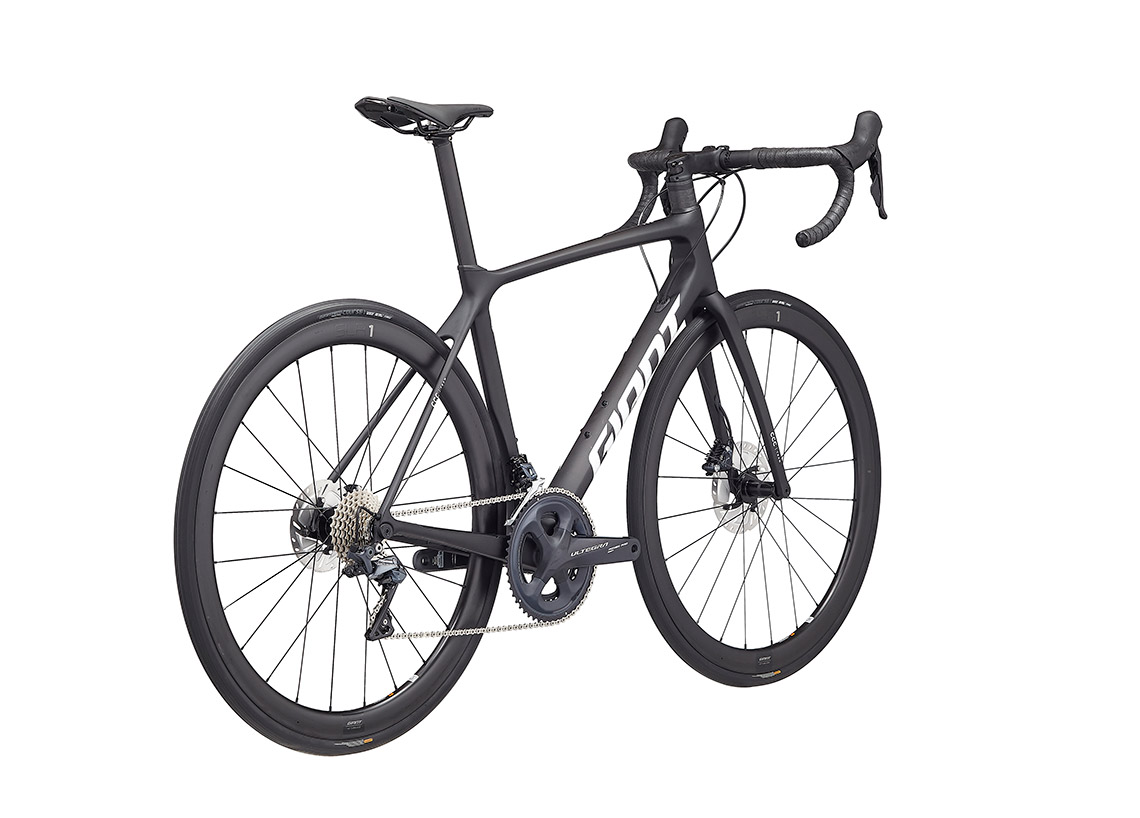

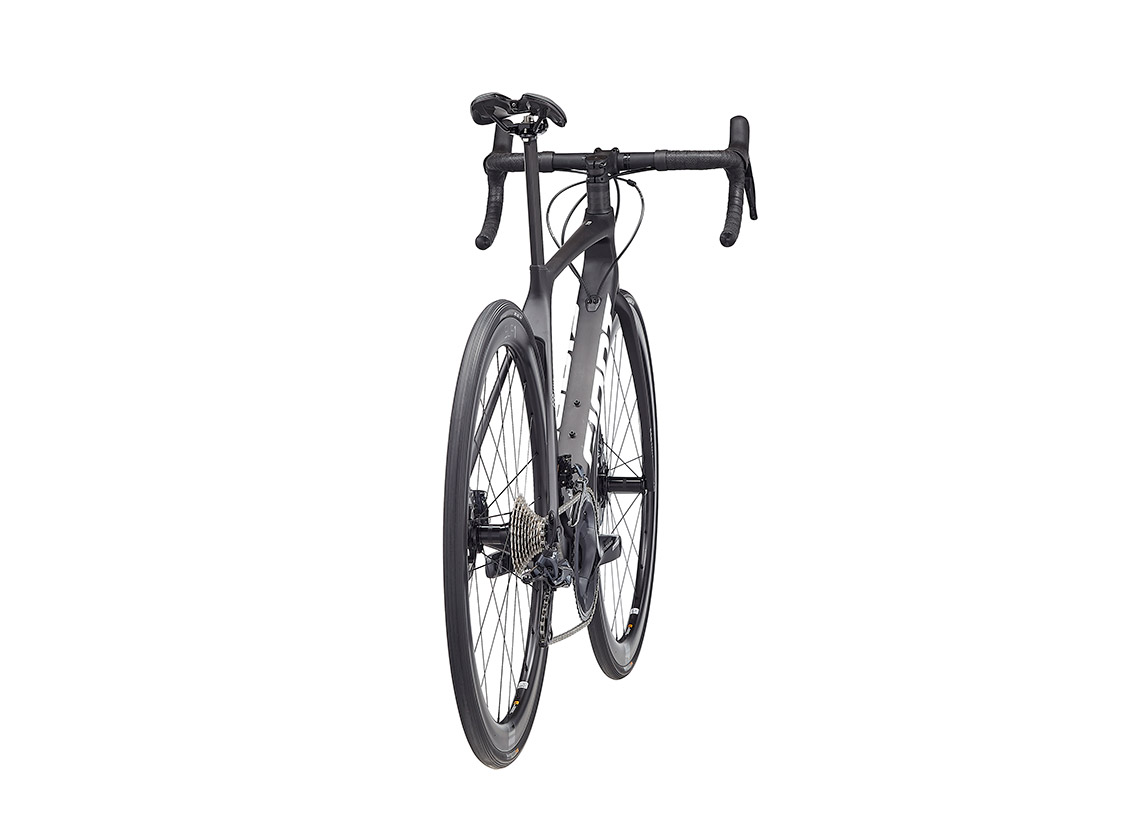

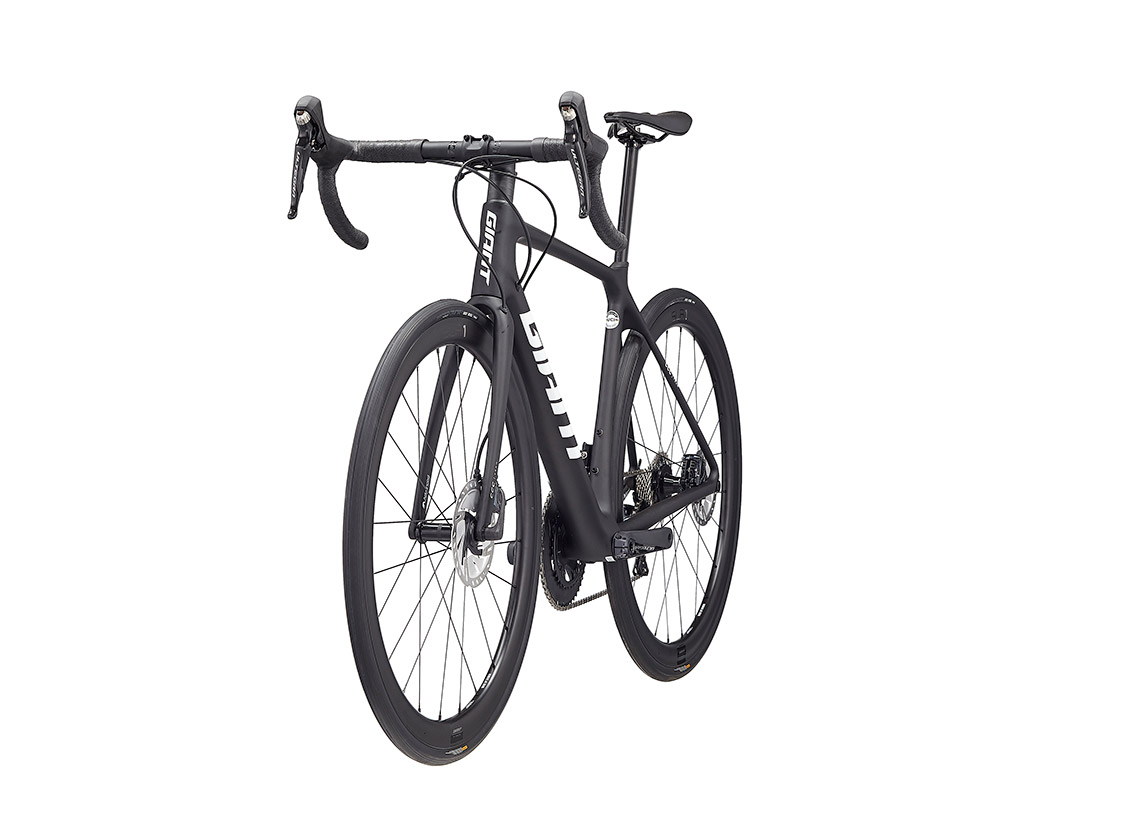

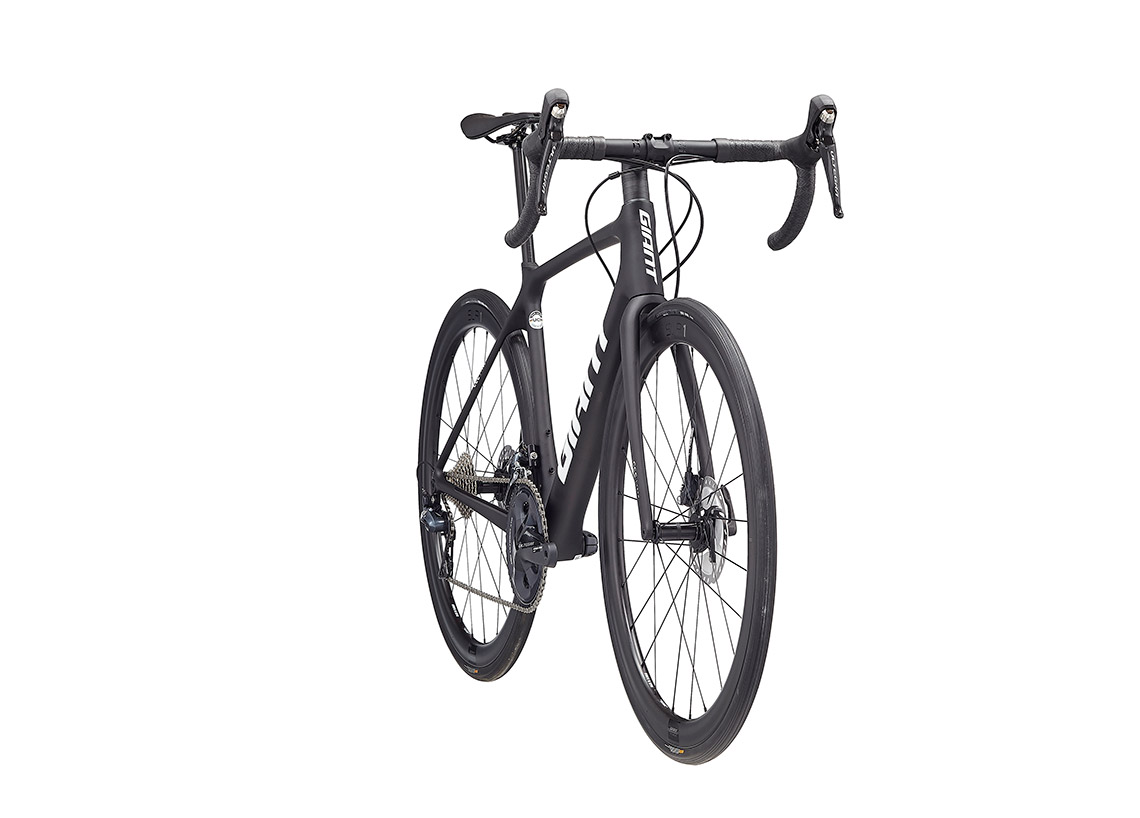

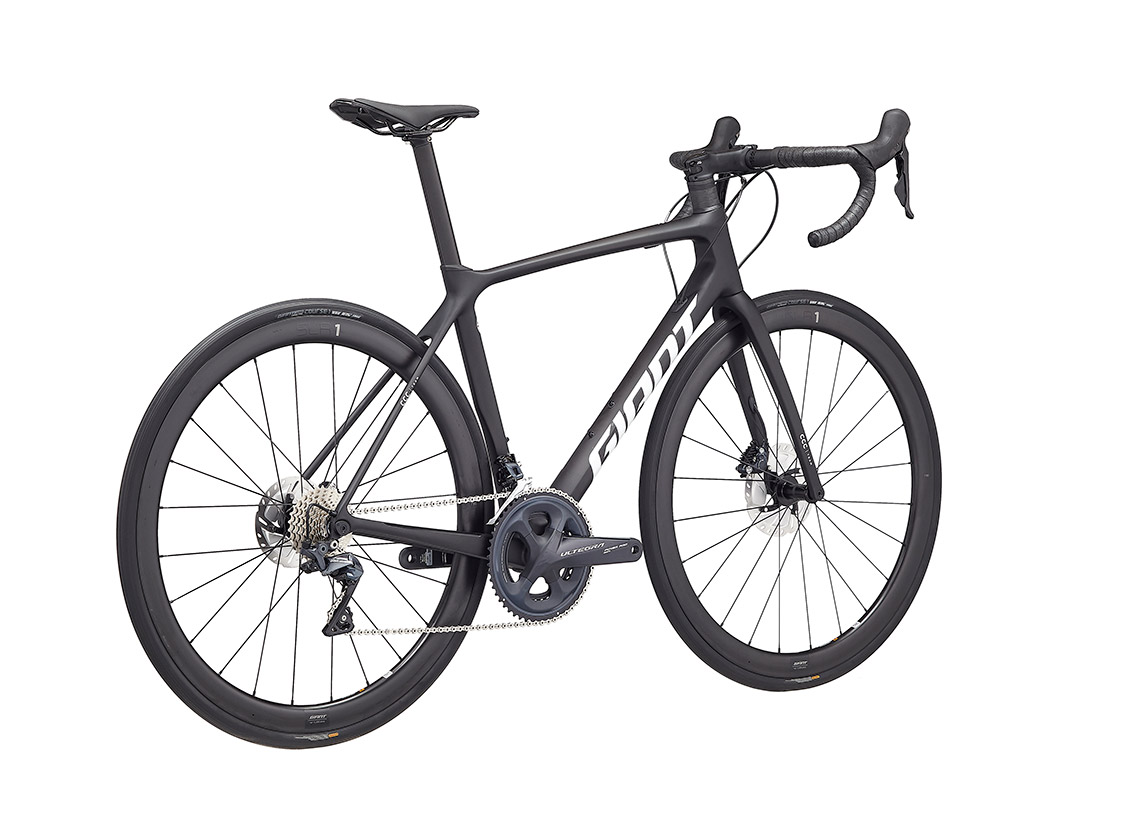

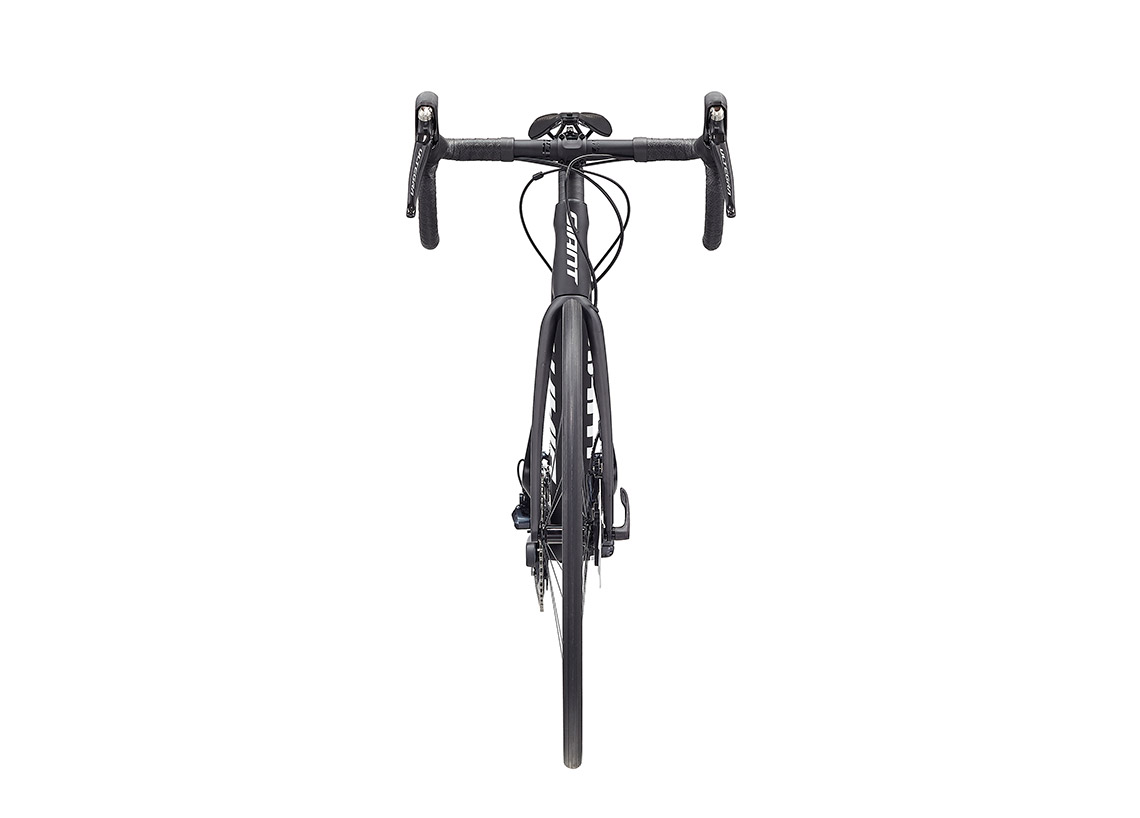

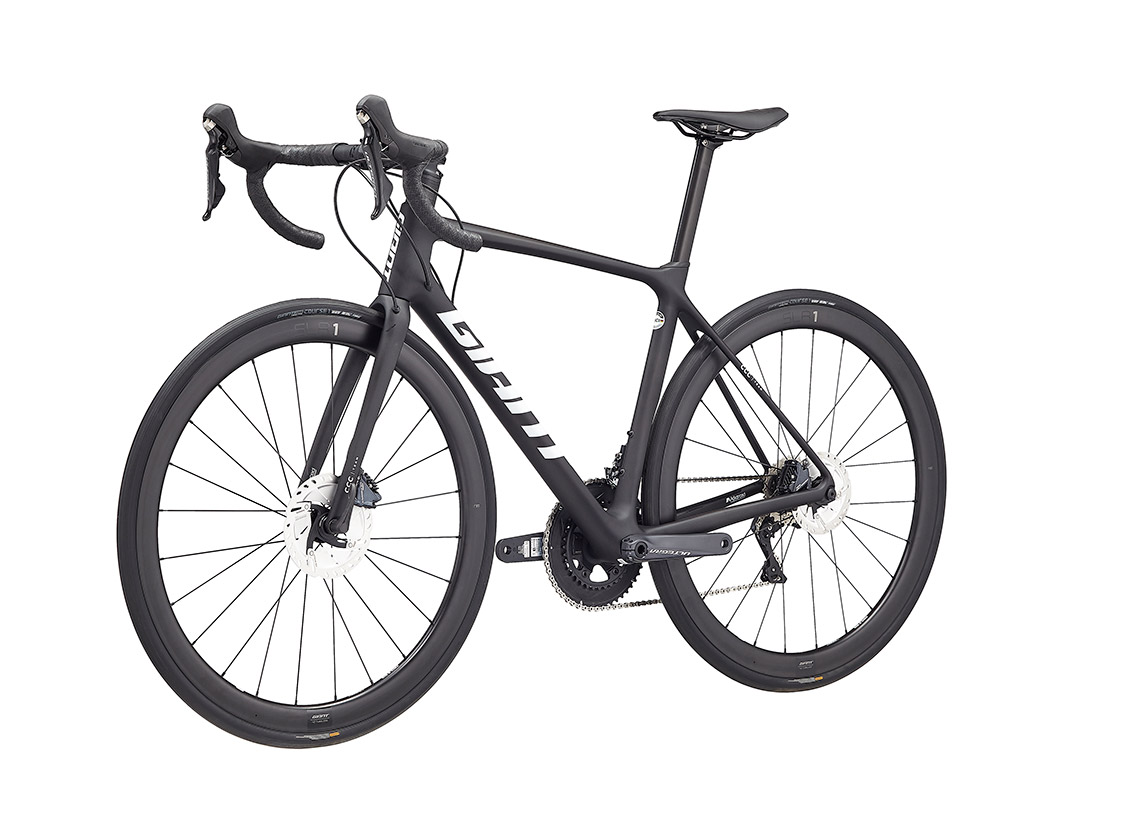

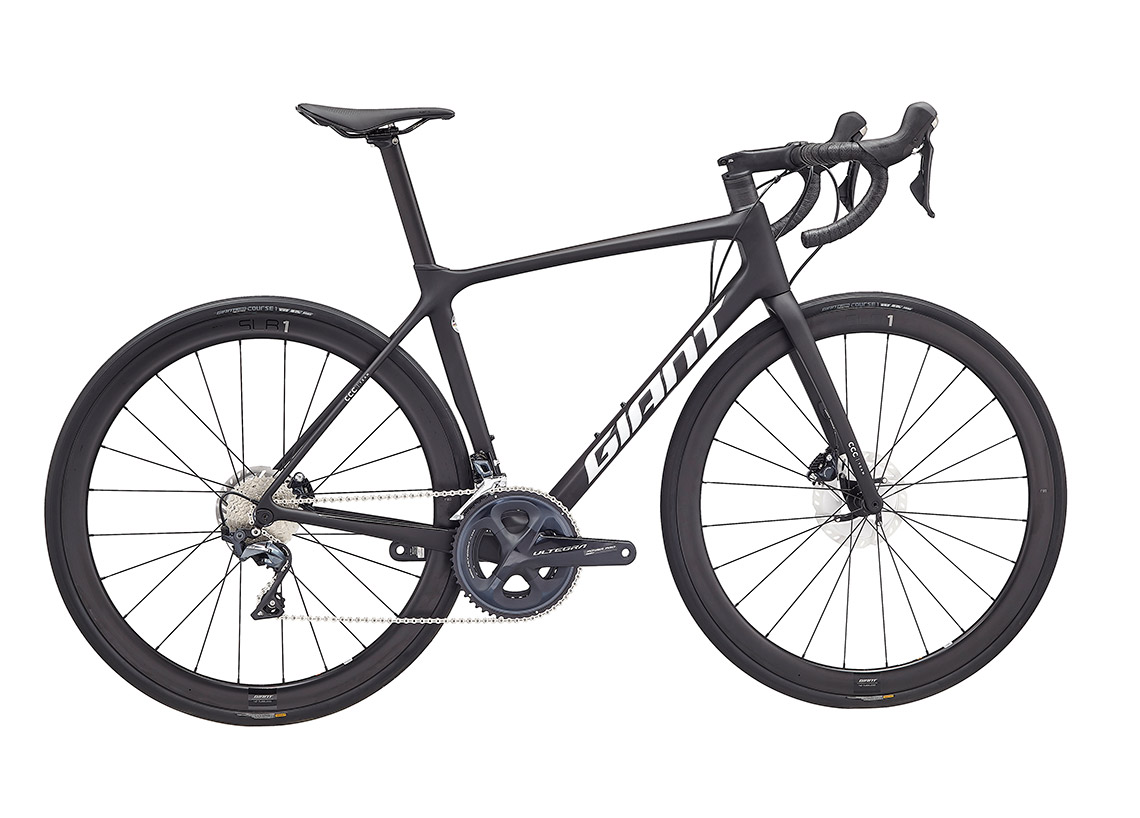

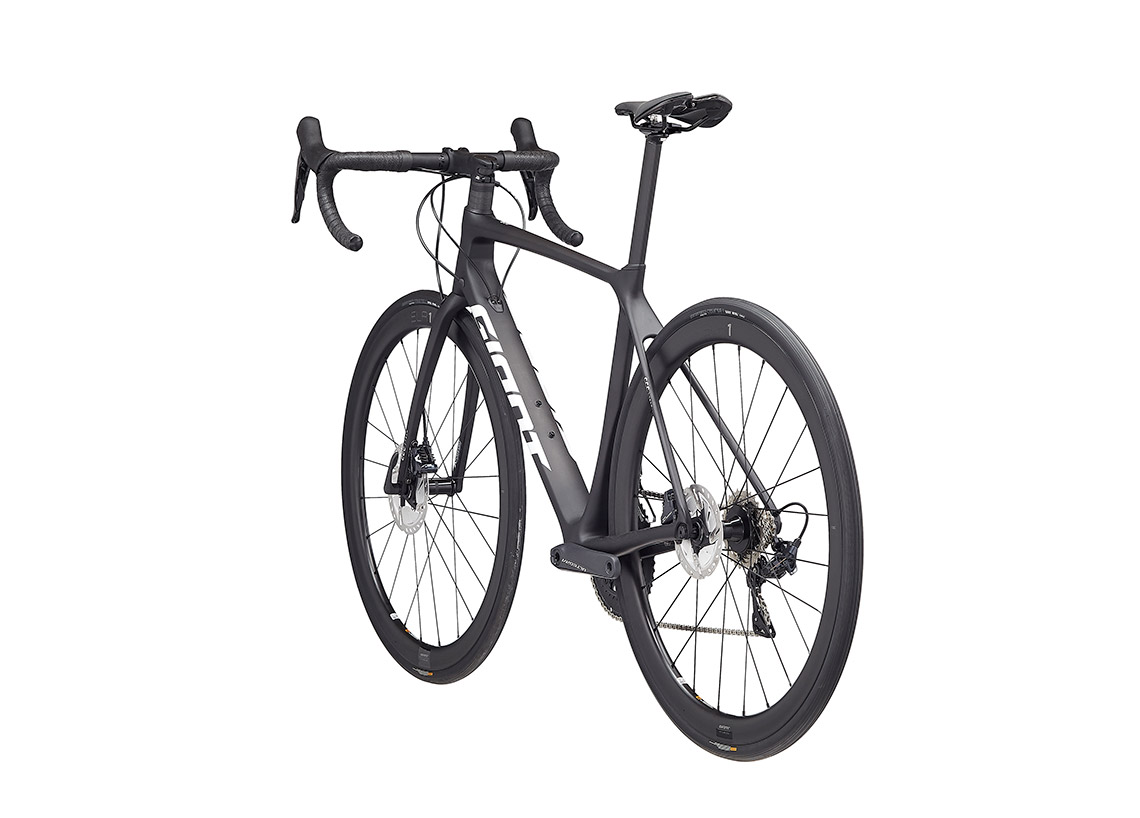

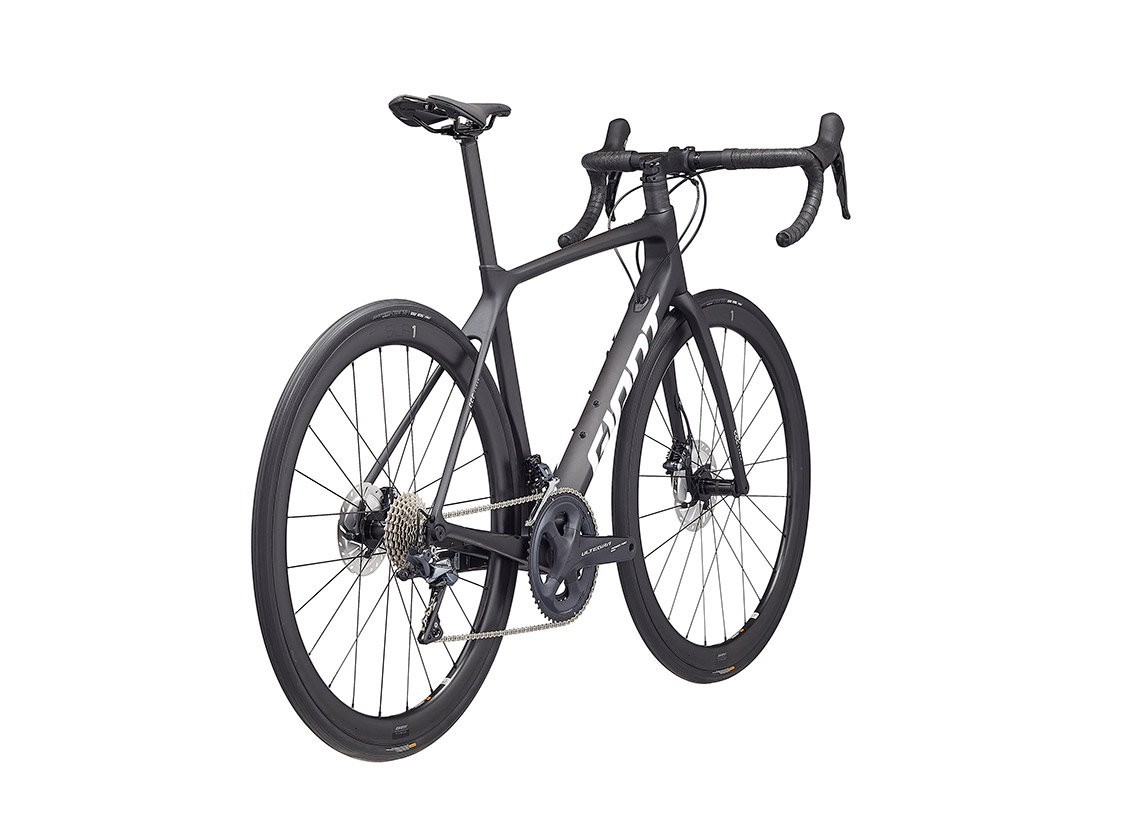

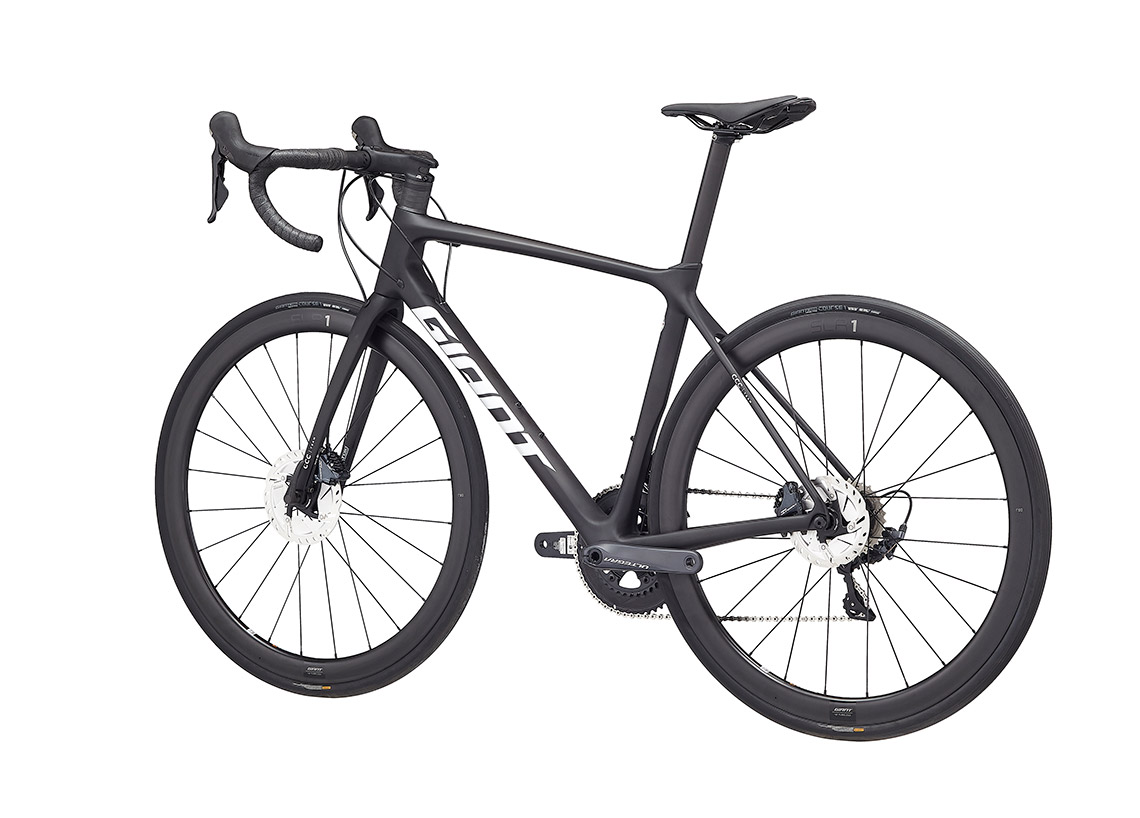

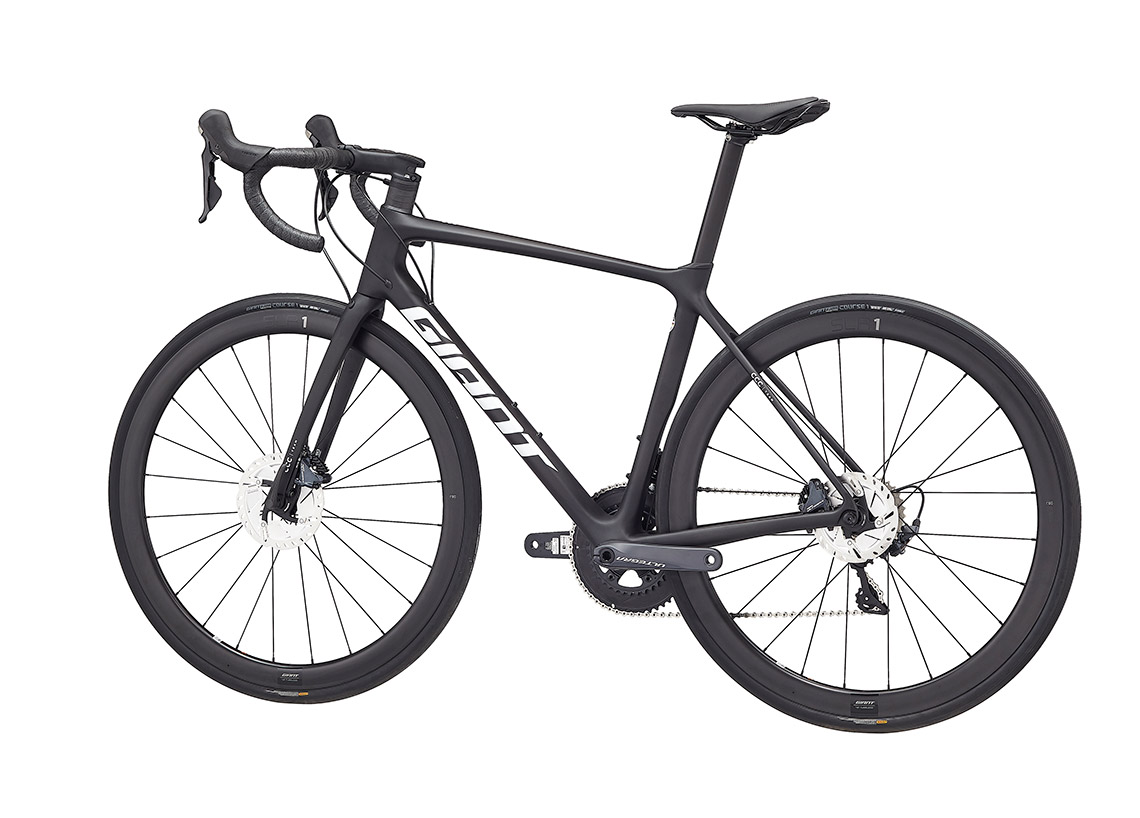

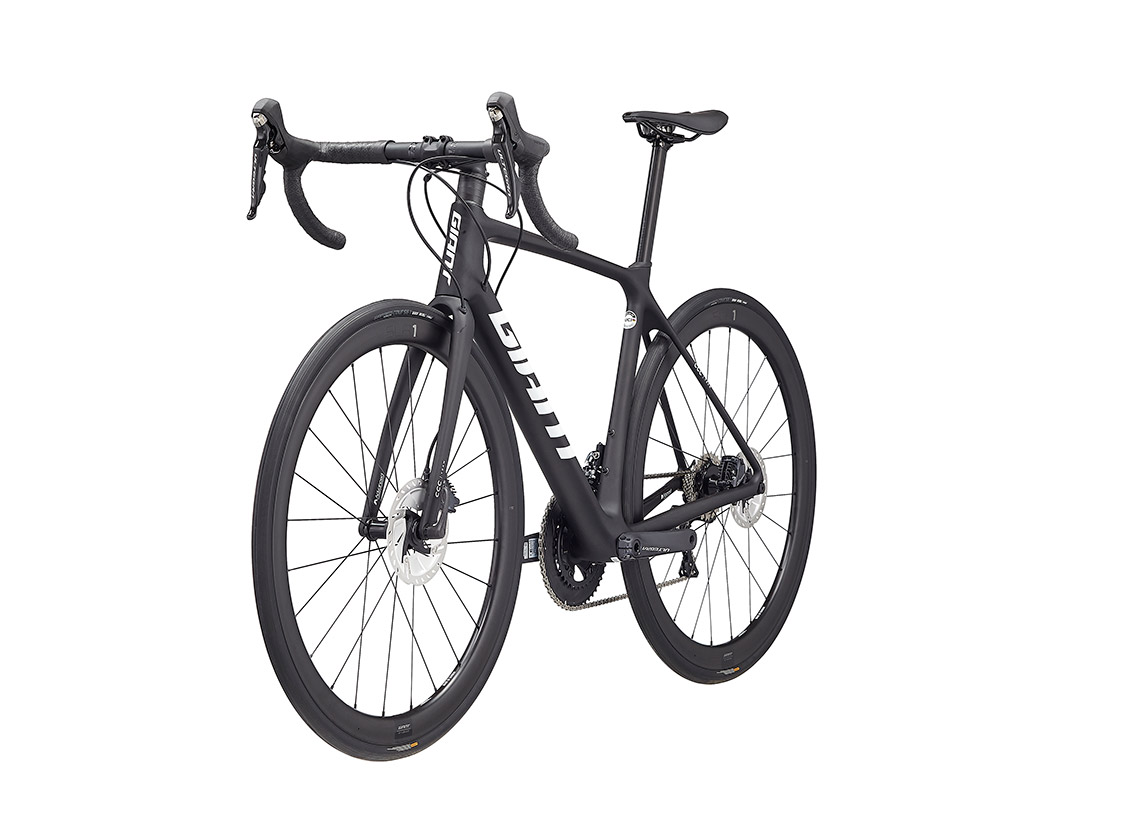

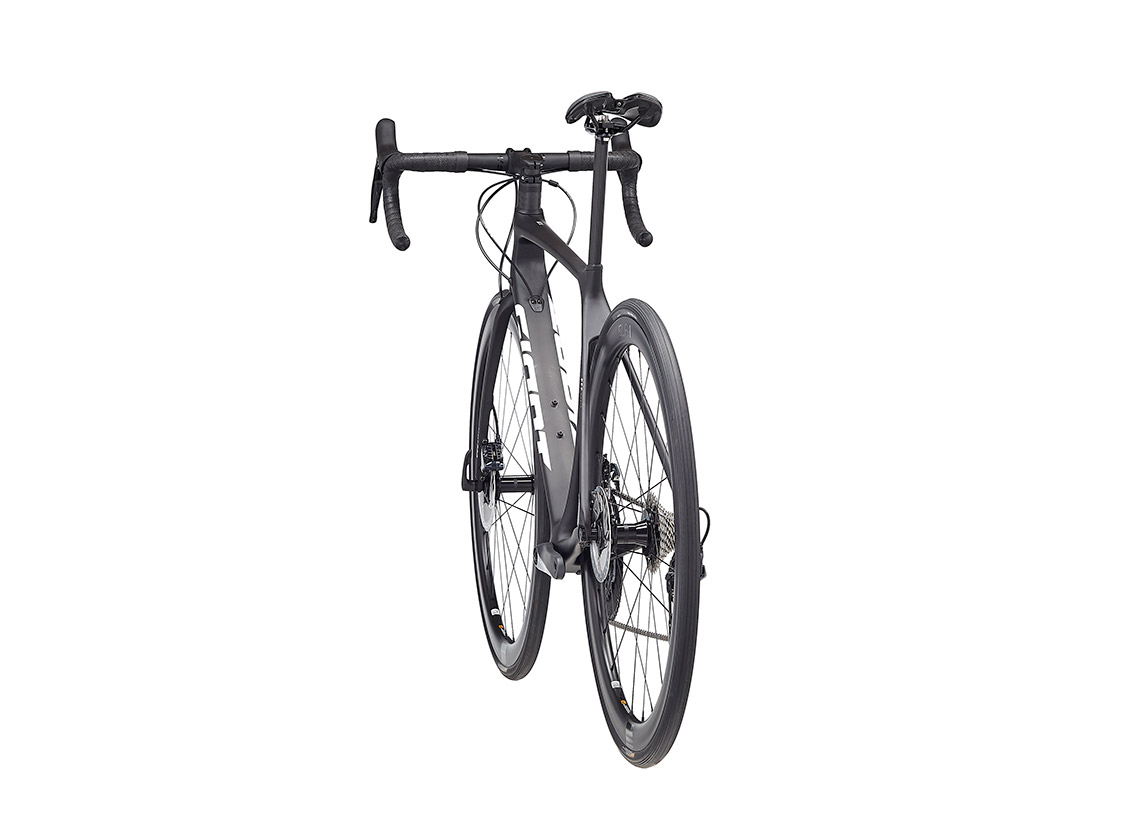

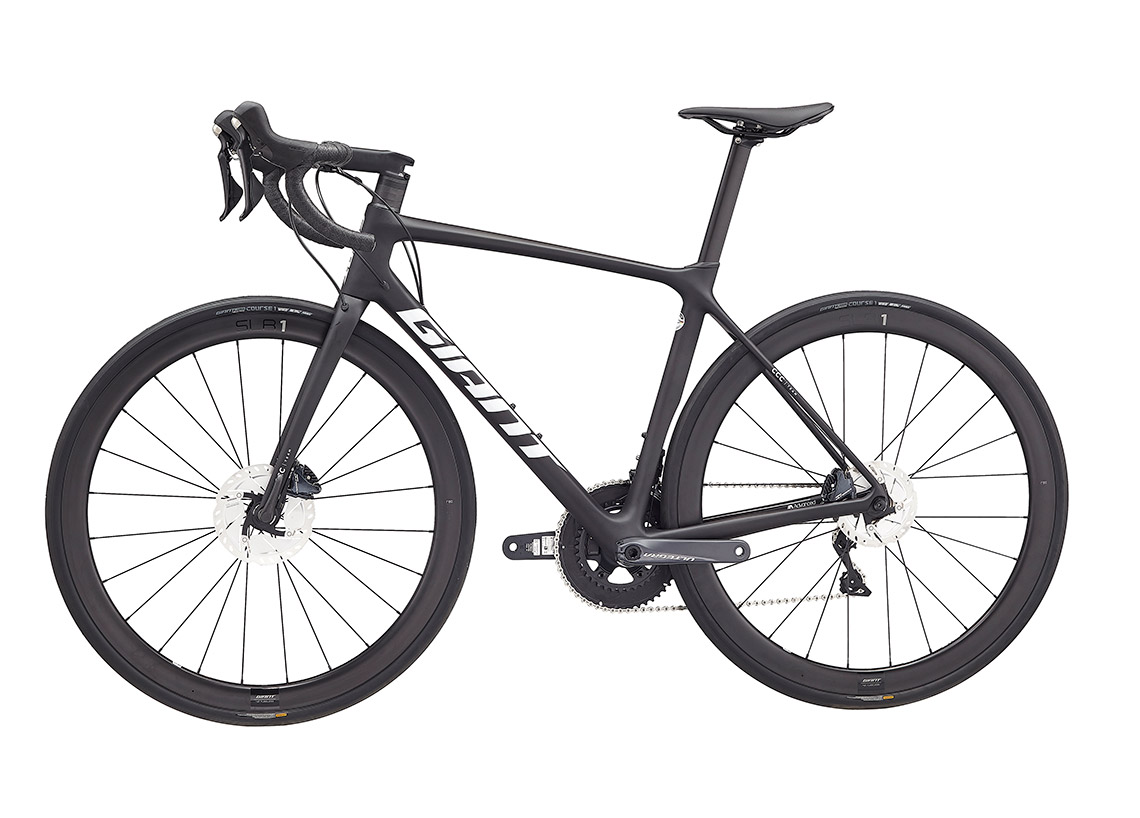

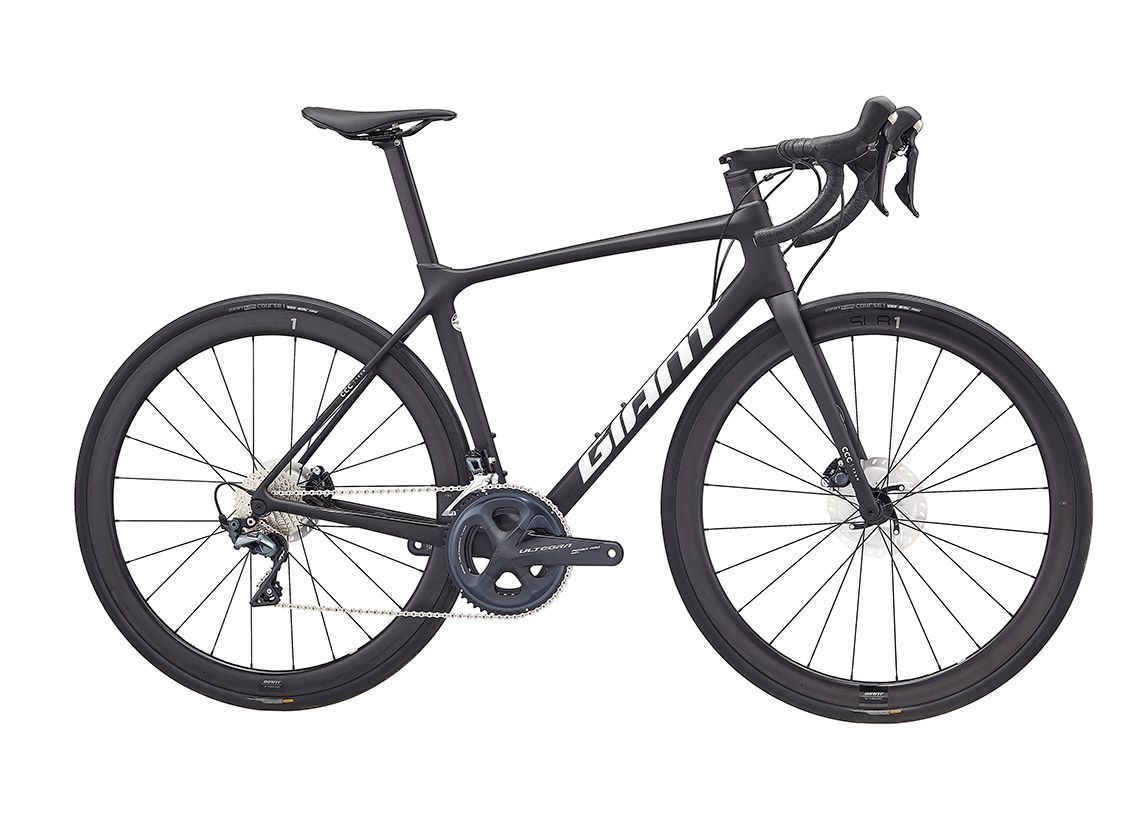

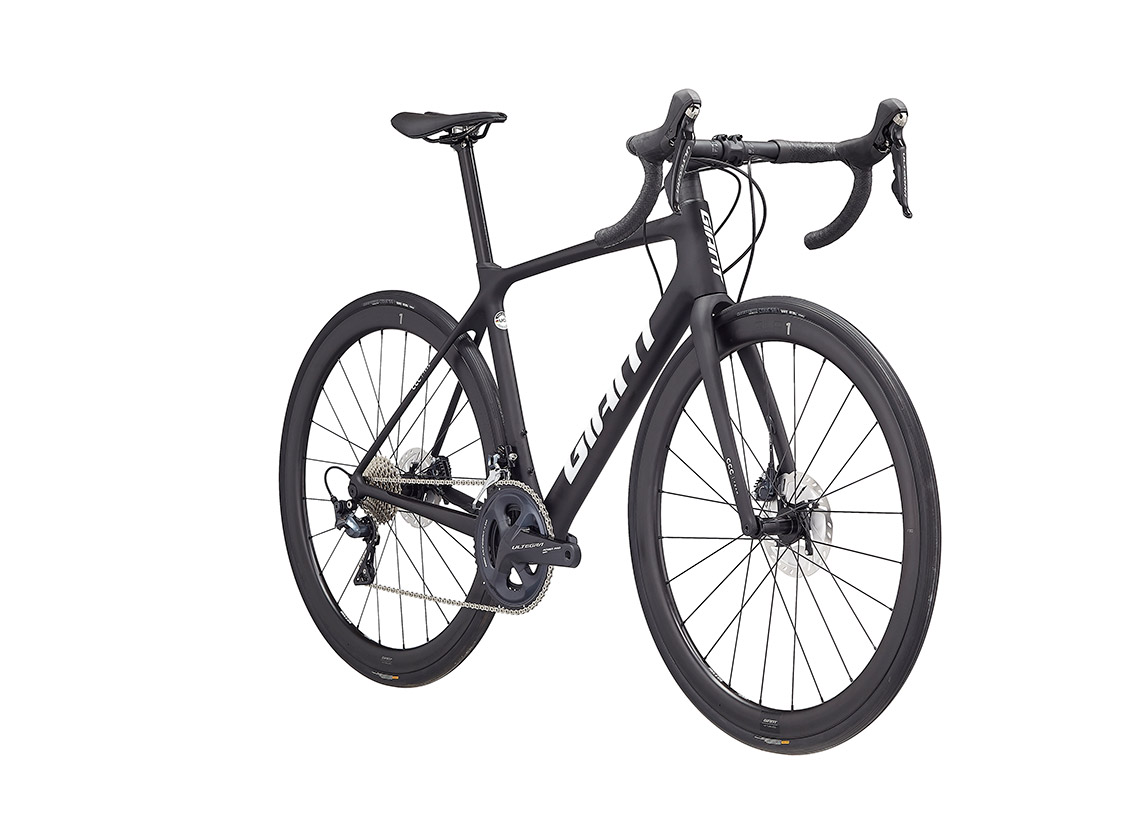

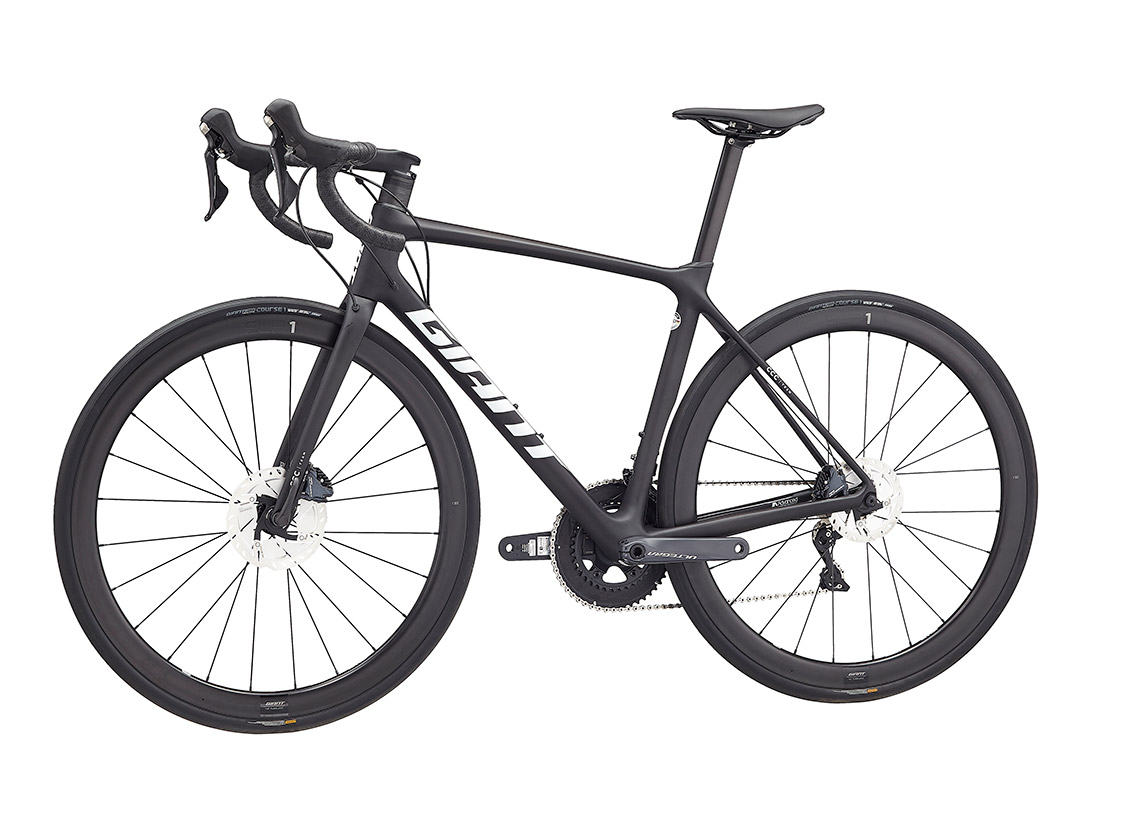

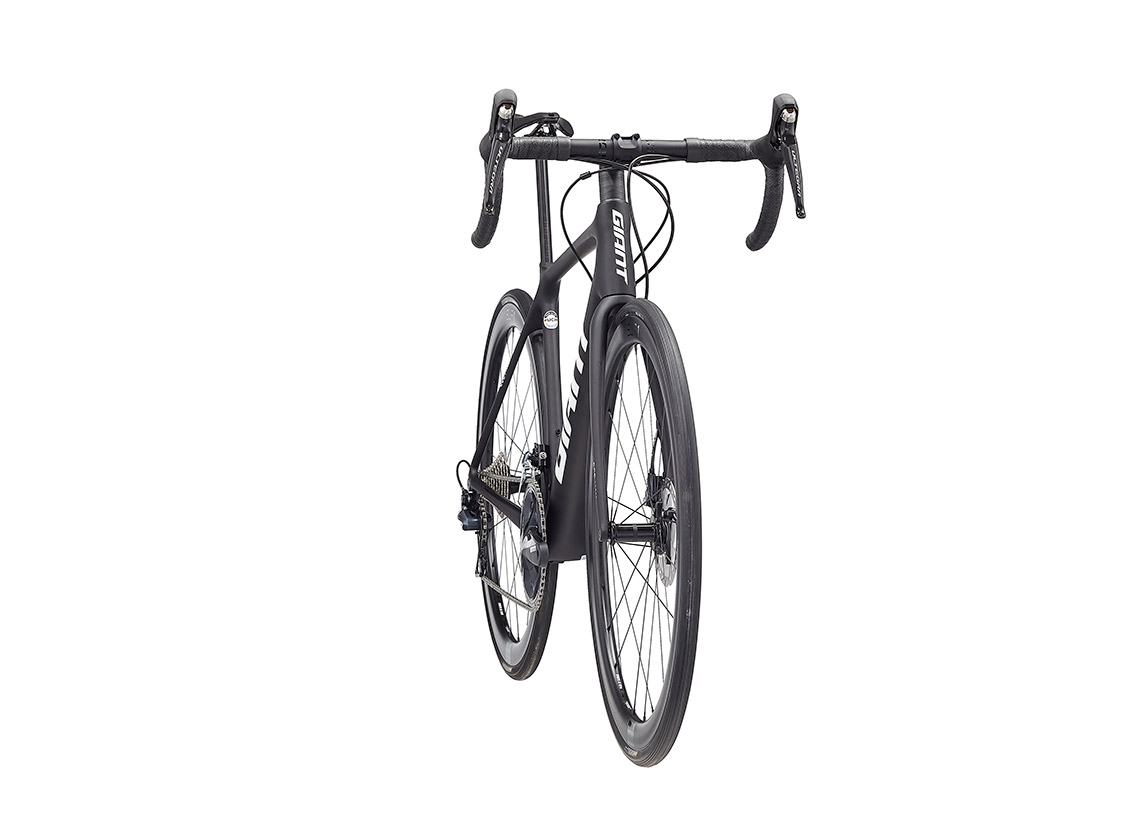

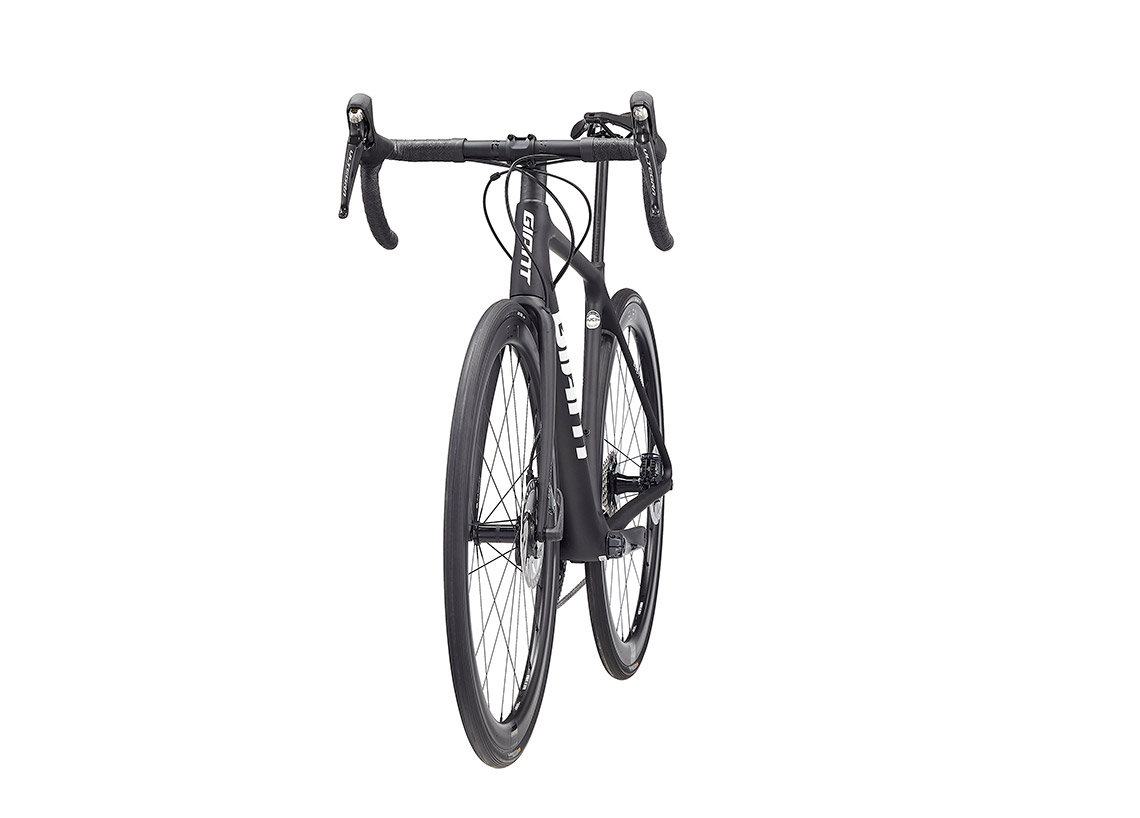

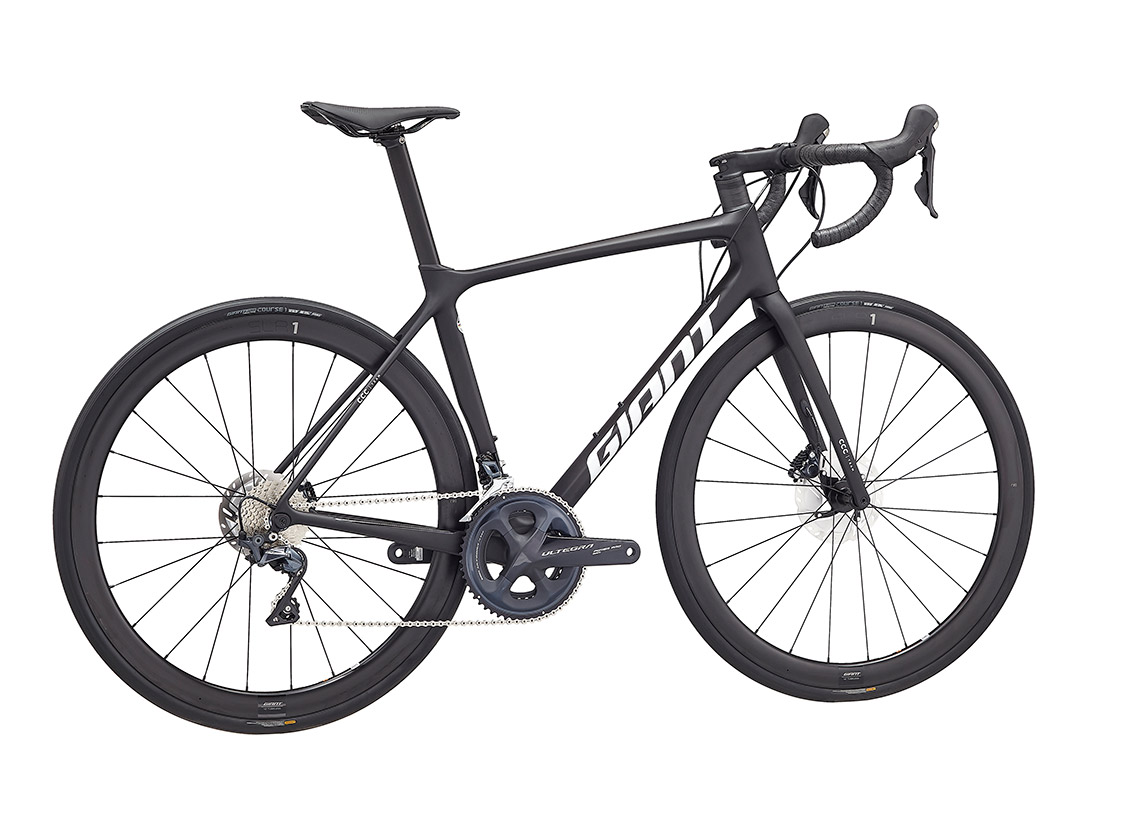

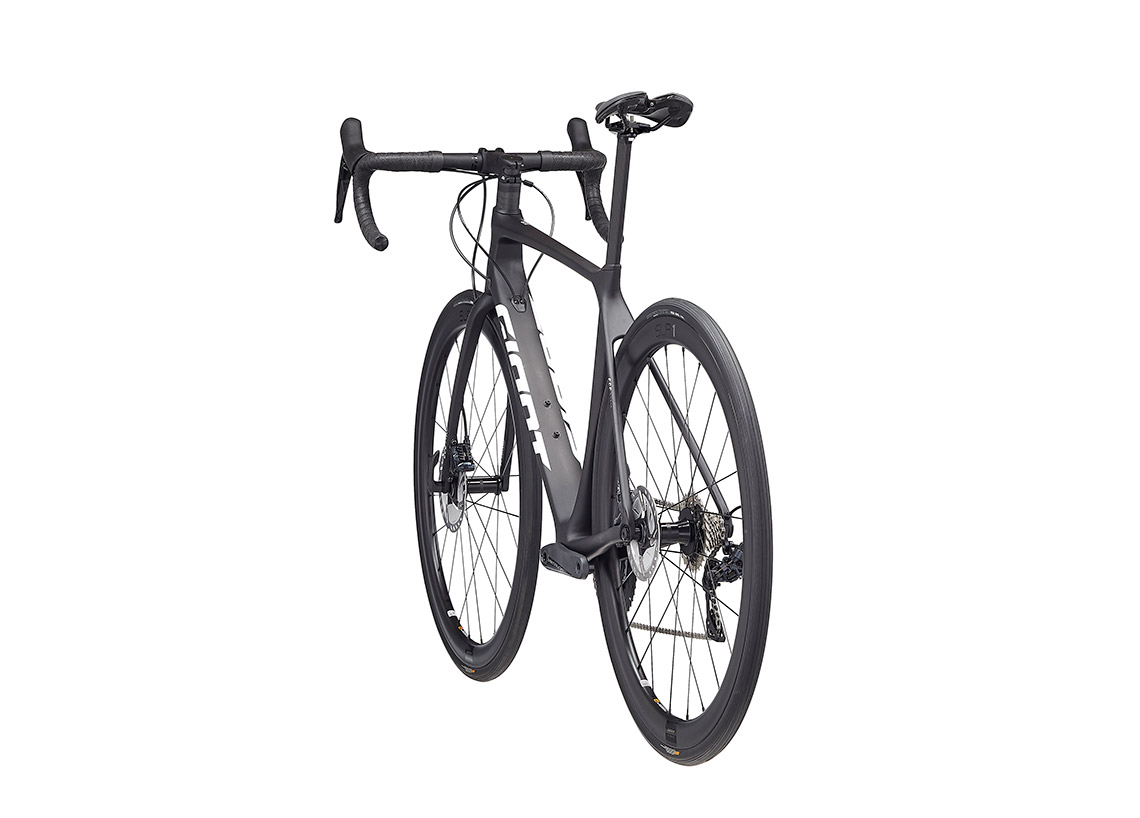

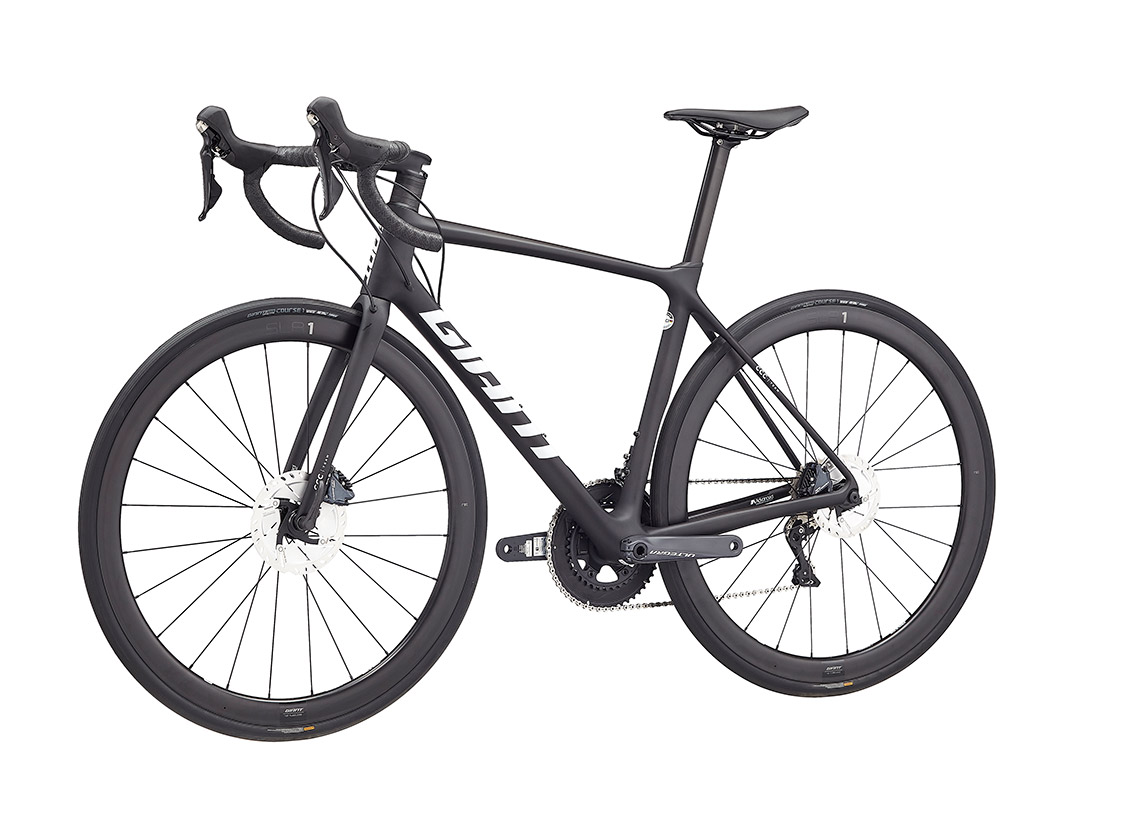

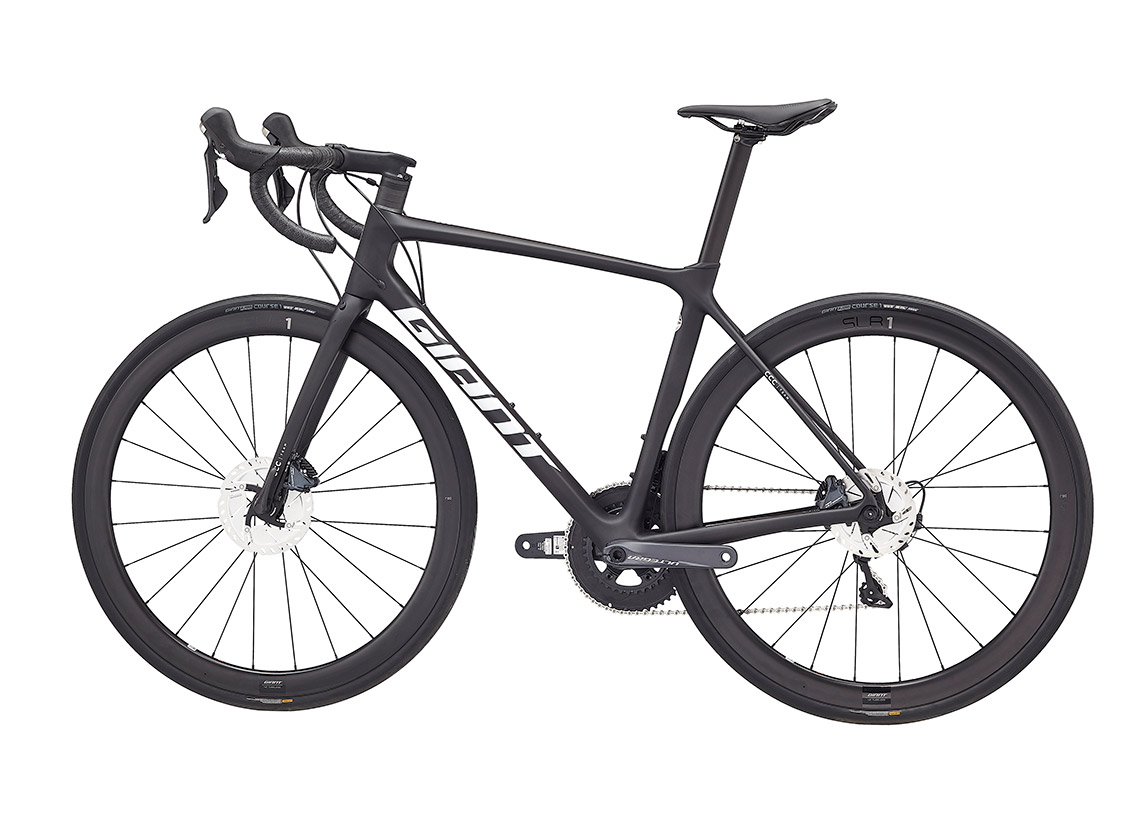

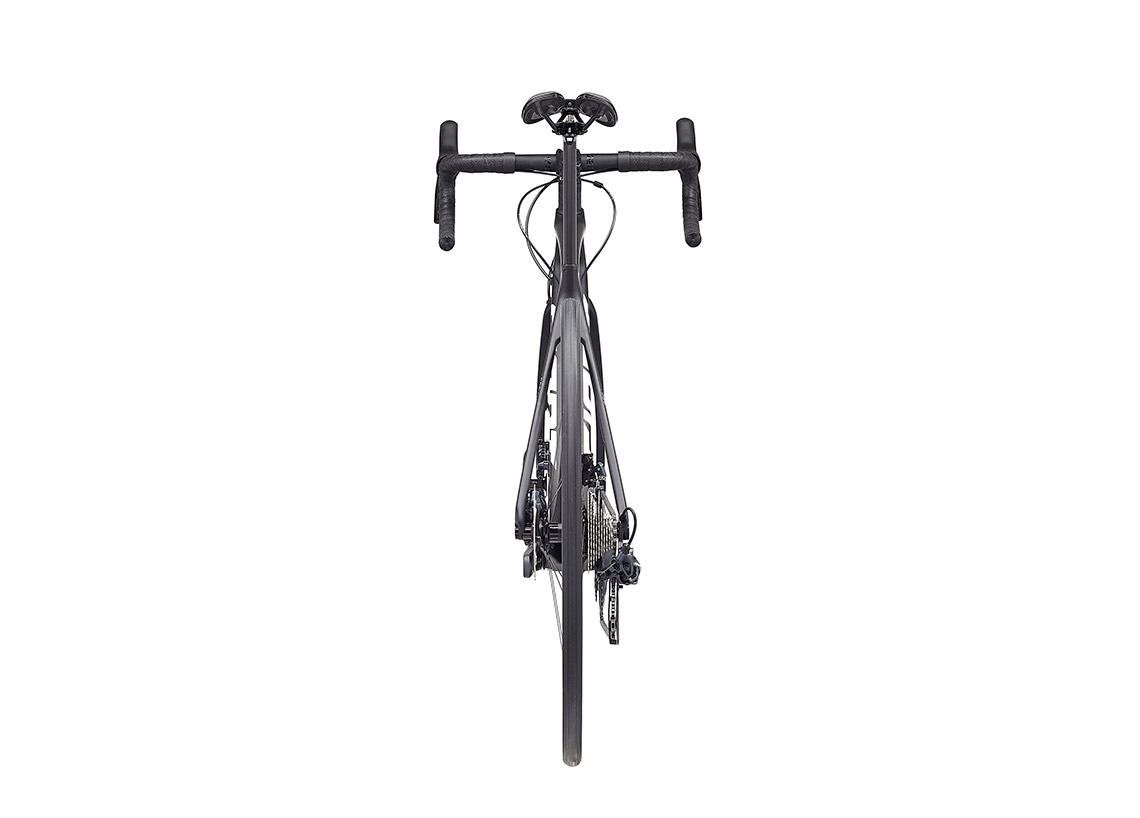

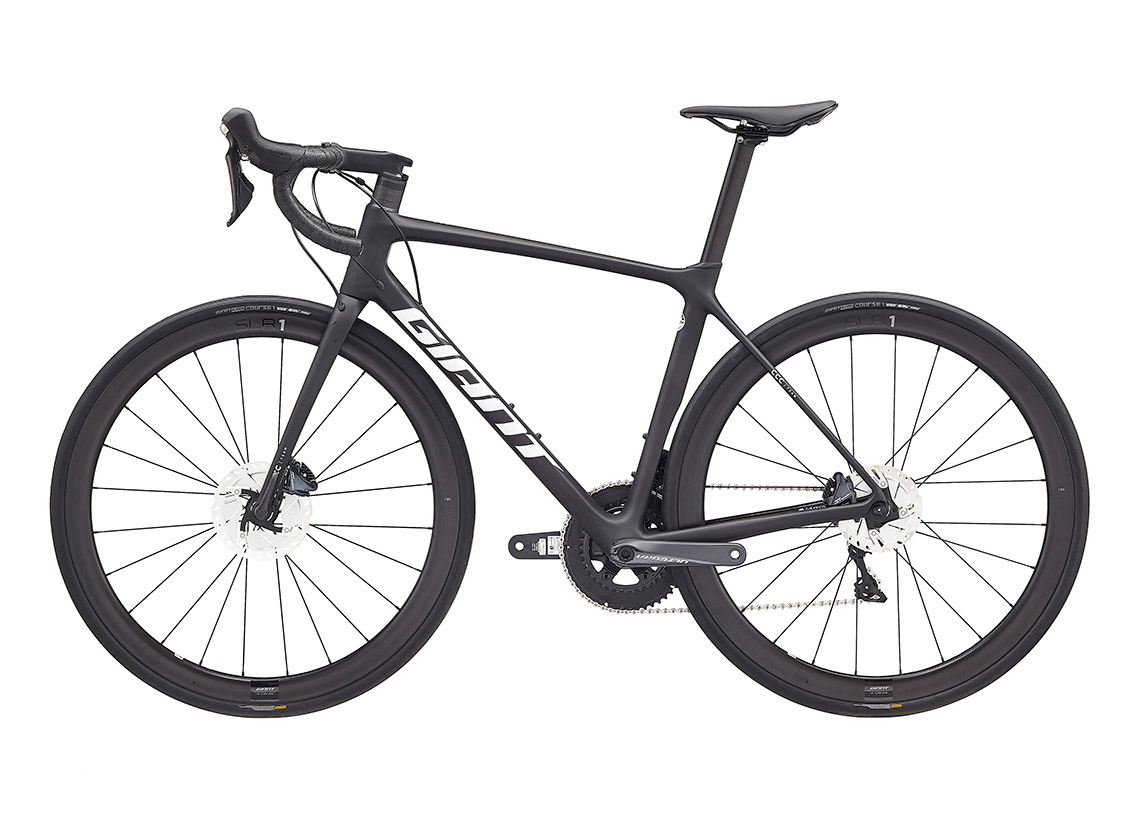

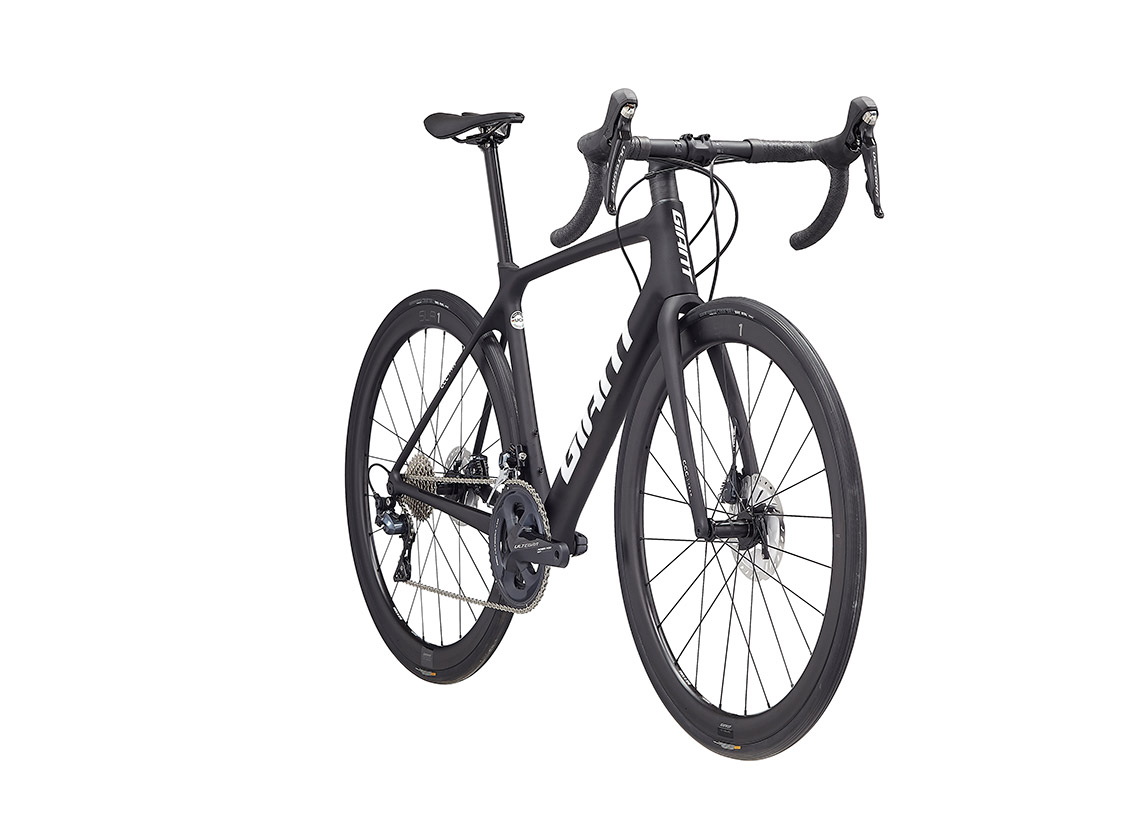

360-View

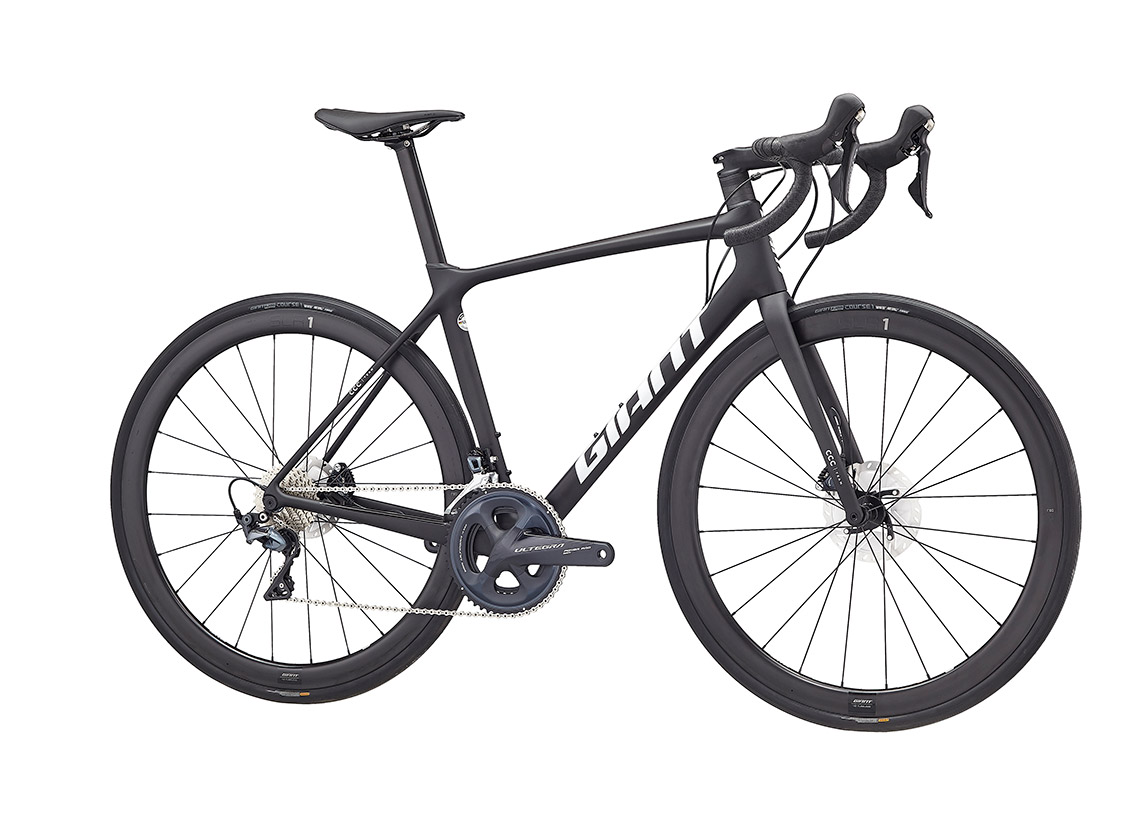

TCR Advanced Pro Team Disc

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
ASeat Tube Length (mm) (inch)42516.744517.547018.550019.753020.956022
BSeat Tube Angle (degrees)74.5°74.0°73.5°73.0°73.0°72.5°
CTop Tube Length (mm) (inch)52020.553521.155021.756522.258022.860023.6
DHead Tube Length (mm) (inch)1204.71305.11455.71656.51857.32007.9
EHead Tube Angle (degrees)71.0°72.3°73.0°73.0°73.0°73.0°
FFork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
GTrail (mm) (inch)72.12.8642.559.22.359.22.359.22.359.22.3
HWheelbase (mm) (inch)97638.497738.598038.699139100639.6102040.2
IChain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
JBottom Bracket Drop (mm) (inch)722.869.52.769.52.7672.6672.6672.6
KStack (mm) (inch)51720.452820.854521.556222.158122.959623.5
LReach (mm) (inch)37614.838315.138815.339315.540215.841216.2
MStand Over Height (mm) (inch)70627.872528.574729.477330.480031.581632.1
NHandlebar Width (mm) (inch)40015.740015.742016.542016.544017.344017.3
OStem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
PCrank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
QWheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, ML, L, XL
  • Colors
    Matte Carbon / Gloss Unicorn White
  • Frame
    Advanced-Grade Composite, disc
  • Fork
    Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact SL
  • Stem
    Giant Contact SL
  • Seatpost
    Giant Variant, composite
  • Saddle
    Giant Fleet SL
  • Pedals
    N/A
  • Shifters
    Shimano Ultegra
  • Front Derailleur
    Shimano Ultegra
  • Rear Derailleur
    Shimano Ultegra
  • Brakes
    Shimano Ultegra hydraulic
  • Brake Levers
    Shimano Ultegra hydraulic
  • Cassette
    Shimano Ultegra, 11x30
  • Chain
    KMC X11SL-1
  • Crankset
    Shimano Ultegra, 36/52with Giant PowerPro power meter
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant SLR-1 42 Carbon Disc WheelSystem (F:42mm, R:42mm)
  • Hubs
    Giant SLR-1 42 Carbon Disc WheelSystem, 12mm thru-axle
  • Spokes
    Giant SLR-1 42 Carbon Disc WheelSystem
  • Tires
    Giant Gavia Course 1, tubeless, 700x28mm (25c), folding
  • Extras
    computer mount
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
