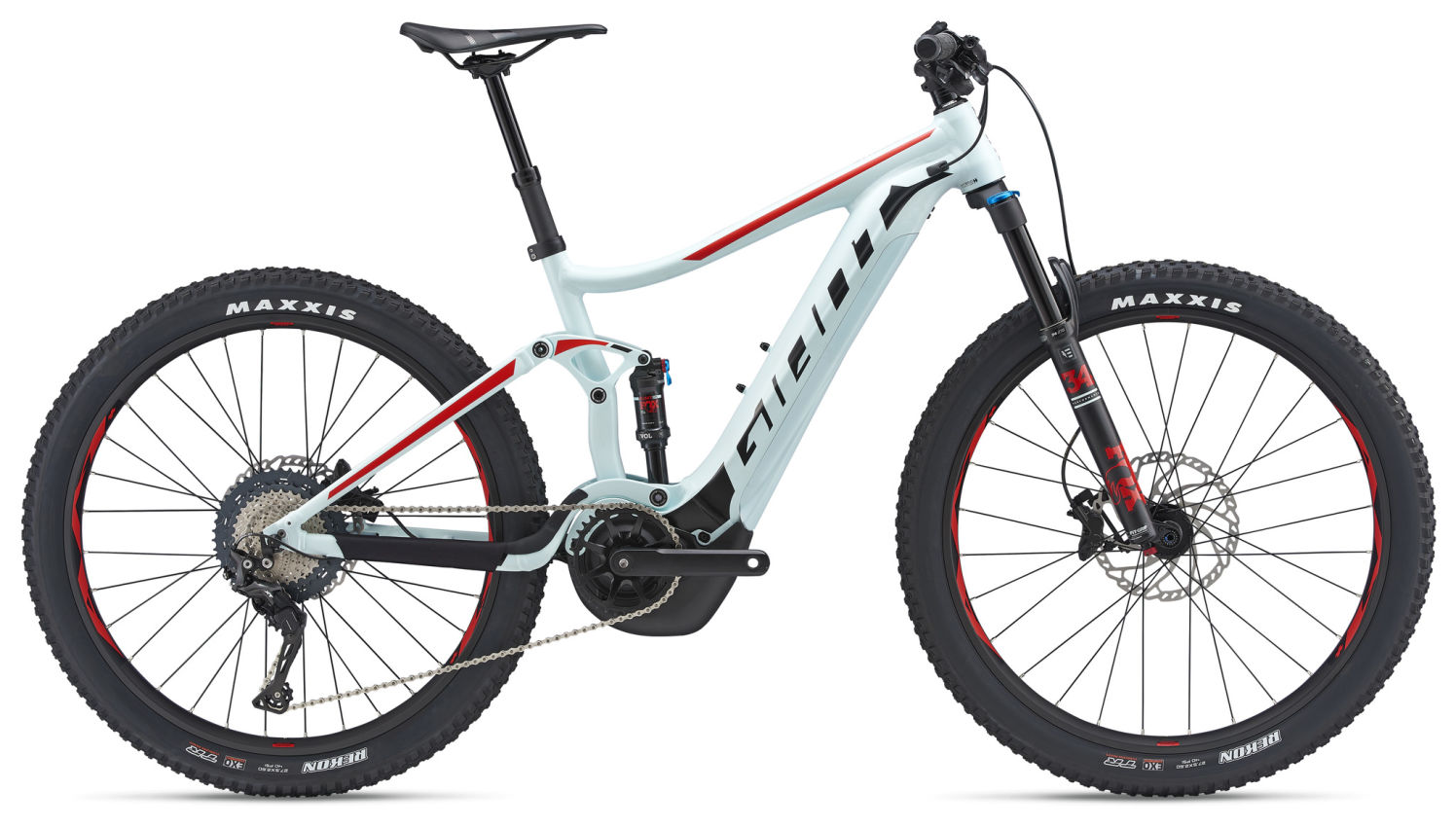

Stance E+ 0
2019
Ennek a teljesítményorientált összteleszkópos e-bike-nak a segítségével könnyen legyőzheted a technikás terepet.
Trail-ekre tervezett geometriájával a Stance E+ megmutatja a kezdő és középhaladó kerékpárosoknak, hogy milyen is az igazi terepkerékpározás. A könnyű és erős ALUXX SL váz FlexPoint felfüggesztéssel könnyen legyőzhetővé teszi a trükkös singletrack-eket is. A rugóút hátul 120mm, elöl pedig 130mm, mindez fürge 27.5+ kerekekkel párosítva. A SyncDrive Sport motor 350 % rásegítést nyújt. A RideControl ONE integrált kezelőegység ergonomikus gombokkal rendelkezik, míg az 500Wh-s akkumulátor segytségével hosszabb túrákat tehetsz. Az új okos töltővel pedig hamar fel tudod tölteni.
Key Performance Factors
Erős motor
A SyncDrive Sport motor 80Nm nyomatékot és 350 % rásegytsét nyújt, így könnyen legyőzheted az emelkedőket.
Trail és XC
A 120mm-es FlexPoint felfüggesztés trail és XC terepre lett tervezve.
Hatékony
Az 500 Wh-s akkumulátor a lehető leghosszabb hatótávolságot nyújtja, mindezt nagyon szépen az alsócsőbe integrálva.
Techs & Features
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
FlexPoint Suspension Technology
A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.
E+ System
E+ System combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control units, EnergyPak battery systems and SyncDrive motors.
For more information, check out the link below.
SyncDrive Sport
Innovation, manufacturing expertise and a motor system powered by Yamaha all combine to expand any rider’s abilities. SyncDrive Sport offers three support modes and is equipped on E-bikes that are used for both everyday riding and for more demanding off-road riding. This small mid-drive motor delivers a massive maximum 80Nm of torque and is widely acclaimed for its performance and reliability.
RideControl ONE
RideControl ONE takes your E-bike riding experience to new levels with integrated button controls and a clean handlebar free of any display. The E-bikes equipped with RideControl ONE can connect with the Giant E-bike App to function as your E-bike display
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 155 cm5’1”
166 cm5’5”
- S
- 163 cm5’4” 172 cm5’8”
- M
- 171 cm5’7” 180 cm5’11”
- L
- 179 cm5’10” 188 cm6’2”
- XL
- 187 cm6’2” 198 cm6’6”
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 38015 | 40616 | 43217 | 48219 | 50720 |
| B Seat Tube Angle (degrees) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| C Top Tube Length (mm) (inch) | 56522.2 | 58022.8 | 60023.6 | 62524.6 | 65025.6 |
| D Head Tube Length (mm) (inch) | 1003.9 | 1003.9 | 1104.3 | 1204.7 | 1355.3 |
| E Head Tube Angle (degrees) | 67.0° | 67.0° | 67.0° | 67.0° | 67.0° |
| F Fork Rake (mm) (inch) | 461.8 | 461.8 | 461.8 | 461.8 | 461.8 |
| G Trail (mm) (inch) | 1074.2 | 1074.2 | 1074.2 | 1074.2 | 1074.2 |
| H Wheelbase (mm) (inch) | 114745.2 | 116245.7 | 118346.6 | 120947.6 | 123648.7 |
| I Chain Stay Length (mm) (inch) | 46518.3 | 46518.3 | 46518.3 | 46518.3 | 46518.3 |
| J Bottom Bracket Drop (mm) (inch) | 200.8 | 200.8 | 200.8 | 200.8 | 200.8 |
| K Stack (mm) (inch) | 59023.2 | 59023.2 | 59923.6 | 60823.9 | 62224.5 |
| L Reach (mm) (inch) | 39015.4 | 40515.9 | 42216.6 | 44417.5 | 46518.3 |
| M Stand Over Height (mm) (inch) | 71528.1 | 73128.8 | 74629.4 | 77830.6 | 78130.7 |
| N Handlebar Width (mm) (inch) | 78030.7 | 78030.7 | 78030.7 | 78030.7 | 78030.7 |
| O Stem Length (mm) (inch) | 502 | 502 | 602.4 | 602.4 | 702.8 |
| P Crank Length (mm) (inch) | 1656.5 | 1656.5 | 1706.7 | 1706.7 | 1706.7 |
| Q Wheel Size | 27.5+ | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
