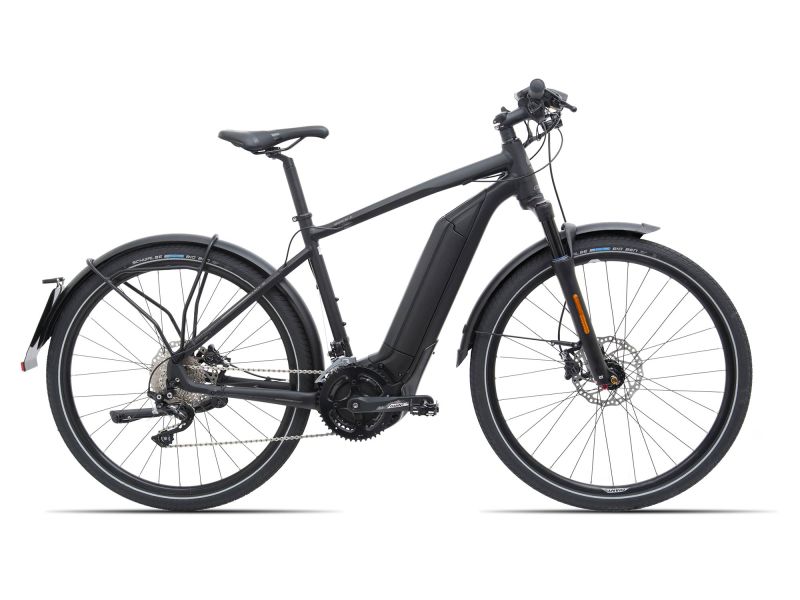

Quick-E+ FS 45
2018
TRAVEL QUICKLY AND EASILY IN URBAN ENVIRONMENTS WITH THIS STATE-OF-THE-ART MOBILITY E-BIKE.
This innovative E-bike lets you move fast in urban environments. With a top speed of 45 kph, Quick-E+ lets you shed minutes off the time it takes you to get to work. It also helps you tackle longer distances than you can with a traditional bicycle. With an ALUXX SL aluminum frame and a powerful SyncDrive Sport motor that produces 80Nm of torque, traffic jams and parking hassles can be a thing of the past.
- Giant SyncDrive Sport, powerfull 80Nm central motor
- Giant EnergyPak 500 lithium-ion battery for longest range
- Schwalbe Big Ben 27.5X2" for ultimate control
- Shimano Deore 2x10sp
- Tektro Dorado hydraulic disc brakes
- Color: Matte Black
Techs & Features
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
E+ System
E+ System combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control units, EnergyPak battery systems and SyncDrive motors.
For more information, check out the link below.
SyncDrive Sport
Innovation, manufacturing expertise and a motor system powered by Yamaha all combine to expand any rider’s abilities. SyncDrive Sport offers three support modes and is equipped on E-bikes that are used for both everyday riding and for more demanding off-road riding. This small mid-drive motor delivers a massive maximum 80Nm of torque and is widely acclaimed for its performance and reliability.
RideControl EVO
RideControl EVO represents state-of-the-art design and aesthetics. Clean, rounded corners give it an elegant look and feel. And with its aluminum housing, the RideControl EVO is more shockproof and durable, even on rough terrain. The RideControl EVO can be connected with Bluetooth by our dealers and offers USB charging possibilities. The Bluetooth connectivity makes sure the RideControl can be updated—meaning you’ll always be up to date with the latest software technology.
EnergyPak Plus
This range extender can boost total capacity by 250Wh. It has all the latest technologies combined with an up-to-date design that fits a select number of bikes. It has smart technology so it automatically turns on when your battery loses power, giving you peace of mind that you can reach your destination.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
| S | M | L | XL | |
|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 43517.1 | 48519.1 | 53521.1 | 58523 |
| B Seat Tube Angle (degrees) | 74.0° | 73.0° | 73.0° | 72.0° |
| C Top Tube Length (mm) (inch) | 55021.7 | 57022.4 | 59023.2 | 61024 |
| D Head Tube Length (mm) (inch) | 1355.3 | 1355.3 | 1455.7 | 1606.3 |
| E Head Tube Angle (degrees) | 70.5° | 71.0° | 71.0° | 71.0° |
| F Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 |
| G Trail (mm) (inch) | 793.1 | 763 | 763 | 763 |
| H Wheelbase (mm) (inch) | 104741.2 | 105041.3 | 107142.2 | 107942.5 |
| I Chain Stay Length (mm) (inch) | 45517.9 | 45517.9 | 45517.9 | 45517.9 |
| J Bottom Bracket Drop (mm) (inch) | 401.6 | 401.6 | 401.6 | 401.6 |
| K Stack (mm) (inch) | 60223.7 | 60523.8 | 61424.2 | 62824.7 |
| L Reach (mm) (inch) | 37714.8 | 38515.2 | 40215.8 | 40616 |
| M Stand Over Height (mm) (inch) | 79231.2 | 81131.9 | 83933 | 86734.1 |
| N Handlebar Width (mm) (inch) | 69027.2 | 69027.2 | 69027.2 | 69027.2 |
| O Stem Length (mm) (inch) | 803.1 | 803.1 | 903.5 | 1003.9 |
| P Crank Length (mm) (inch) | 1706.7 | 1706.7 | 1706.7 | 1706.7 |
| Q Wheel Size | 27.5" | 27.5" | 27.5" | 27.5" |
The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.
