Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

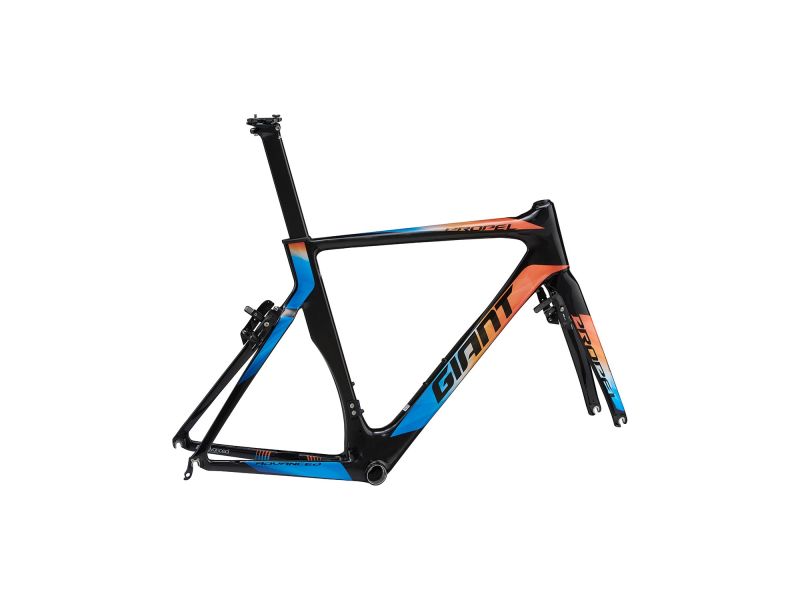

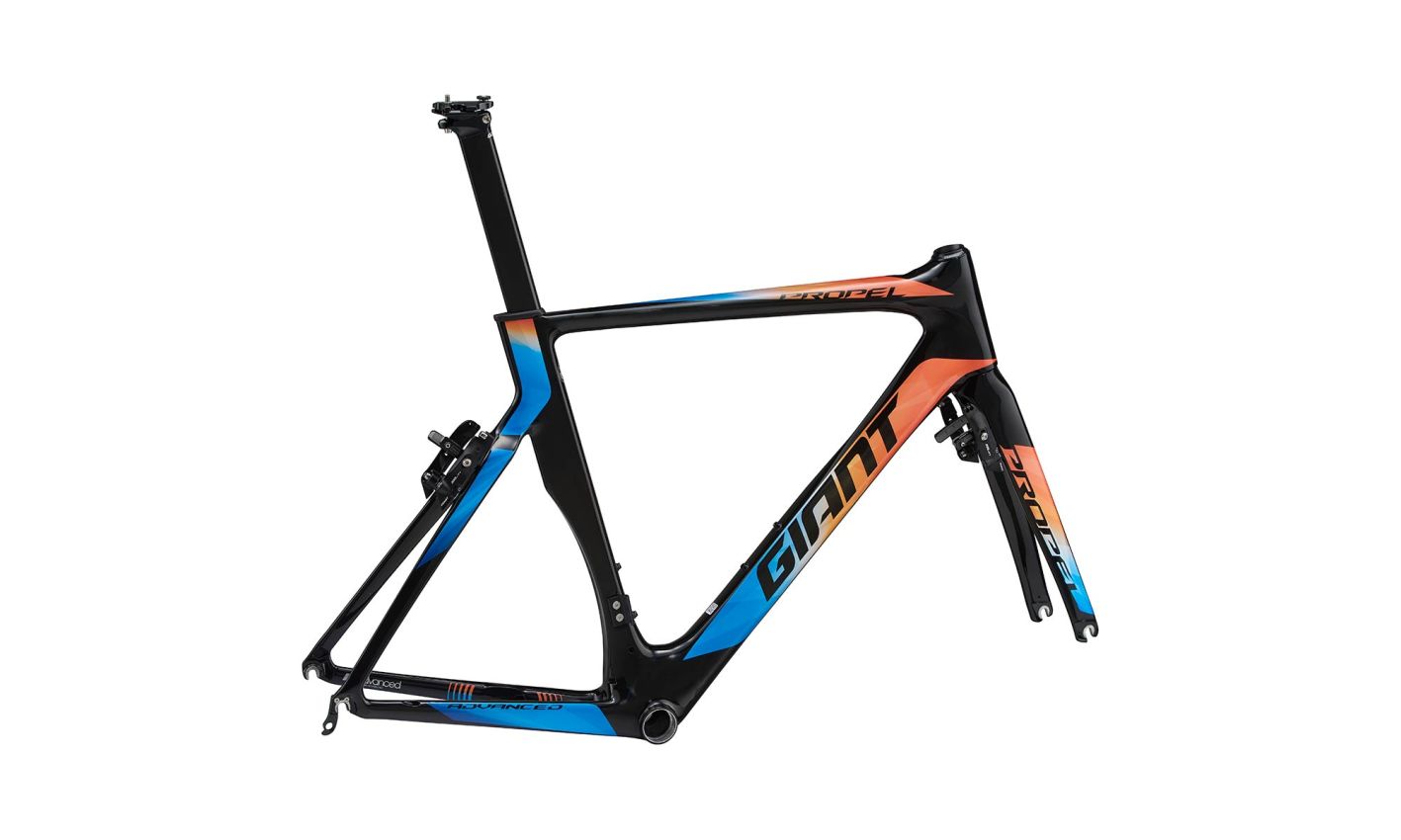

Propel Advanced Pro Frameset
2018
TAP INTO THE SENSATION OF EXHILIRATING SPEED. FOR CRITERIUMS, ROAD SPRINTS OR TRIATHLONS, THIS IS YOUR AERO ADVANTAGE.
Every aspect of this frame is engineered as a complete system to deliver unbeatable aero road performance. Extensive CFD analysis and dynamic wind-tunnel testing was used to optimize every frame tube and angle in a process called AeroSystem Shaping technology. The frame is then handcrafted using Advanced-grade composite material to produce a bike that’s both stiff and light, with a sharp, responsive ride quality. Purpose-built aero road technologies, including SpeedControl SL brakes and a Vector seatpost further enhance this well-rounded, wind-slicing performer.
- Advanced-grade composite frame with Giant Vector composite seatpost
- Advanced-grade composite fork with full-composite OverDrive 2 steerer
- Giant SpeedControl SL brakes
- Color: Carbon Smoke /Orange/Blue
Techs & Features
Advanced Composite Technology
OverDrive 2
The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
AeroSystem Shaping Technology
Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimize each tube shape to deliver superior aerodynamic performance.
RideSense
Giant’s chainstay integrated, wireless data transmitter. The removable transmitter sends wheel speed and cadence information directly to any ANT+ compatible computer.
Vector Seatpost
This full-composite, lightweight and highly aerodynamic seatpost is engineered specifically for performance road riding.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 157 cm5’2”
167 cm5’6”
- S
- 167 cm5’6” 173 cm5’8”
- M
- 173 cm5’8” 178 cm5’10”
- M/L
- 178 cm5’10” 183 cm6’0”
- L
- 183 cm6’0” 188 cm6’2”
- XL
- 188 cm6’2” 196 cm6’5”
| XS | S | M | M/L | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 46518.3 | 50019.7 | 52020.5 | 54521.5 | 57522.6 | 59523.4 |
| B | Seat Tube Angle (degrees) | 74.5° | 73.5° | 73.0° | 73.0° | 73.0° | 72.0° |
| C | Top Tube Length (mm) (inch) | 51520.3 | 53521.1 | 55021.7 | 57022.4 | 58022.8 | 60523.8 |
| D | Head Tube Length (mm) (inch) | 1204.7 | 1305.1 | 1455.7 | 1656.5 | 1857.3 | 2007.9 |
| E | Head Tube Angle (degrees) | 71.0° | 72.5° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 |
| G | Trail (mm) (inch) | 702.8 | 602.4 | 572.2 | 572.2 | 572.2 | 572.2 |
| H | Wheelbase (mm) (inch) | 97238.3 | 97038.2 | 97638.4 | 99739.3 | 100739.6 | 102140.2 |
| I | Chain Stay Length (mm) (inch) | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 |
| J | Bottom Bracket Drop (mm) (inch) | 702.8 | 67.52.6 | 67.52.6 | 652.6 | 652.6 | 652.6 |
| K | Stack (mm) (inch) | 51720.4 | 52920.8 | 54521.5 | 56222.1 | 58122.9 | 59523.4 |
| L | Reach (mm) (inch) | 37214.6 | 37814.9 | 38315.1 | 39815.7 | 40215.8 | 41216.2 |
| M | Stand Over Height (mm) (inch) | 74429.3 | 76930.3 | 78731 | 80731.8 | 82932.6 | 84333.2 |
| N | Handlebar Width (mm) (inch) | 40015.7 | 40015.7 | 42016.5 | 42016.5 | 44017.3 | 44017.3 |
| O | Stem Length (mm) (inch) | 803.1 | 903.5 | 1003.9 | 1104.3 | 1104.3 | 1204.7 |
| P | Crank Length (mm) (inch) | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.
