Dirt-E+ 2 Pro

2018

Share

GET READY TO EXPERIENCE TRAIL RIDING LIKE NEVER BEFORE. MORE POWER, MORE CONTROL ON ROUGH ROADS, PATHS OR SINGLETRACK.

The all-new Dirt-E+ Pro lets you tap into an added boost of power to help you tackle the toughest terrain. The compact SyncDrive Sport motor delivers a smooth and instantaneous boost that blends seamlessly with your own pedaling power—so you can ride stronger and longer, even on steep and challenging trails. With its stable, XC-oriented frame and integrated EnergyPak battery, the Dirt-E+ Pro gives you the power to conquer mountains.

  • Giant SyncDrive Pro central motor, performance tuned
  • Giant EnergyPak500 lithium-ion battery for longest range
  • SR Suntour Raidon 34 RL-R Air 120mm suspension fork
  • Shimano Deore/XT 10-speed drivetrain
  • Shimano hydraulic disc brakes
  • Color: Green / Blue, or Grey / Neon Orange
Specs

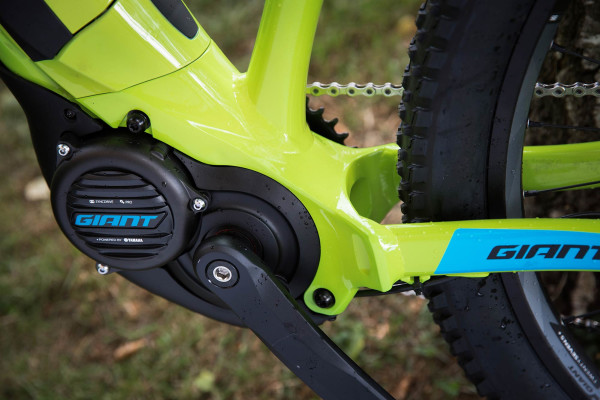

  • Motor
    Giant SyncDrive Pro
  • Sensors
    Giant PedalPlus 4-sensor technology

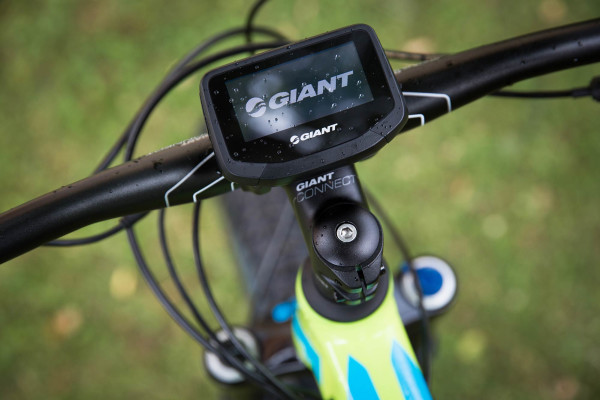

  • Display
    Giant RideControl EVO, grip launch control with walk assist, mini USB charger

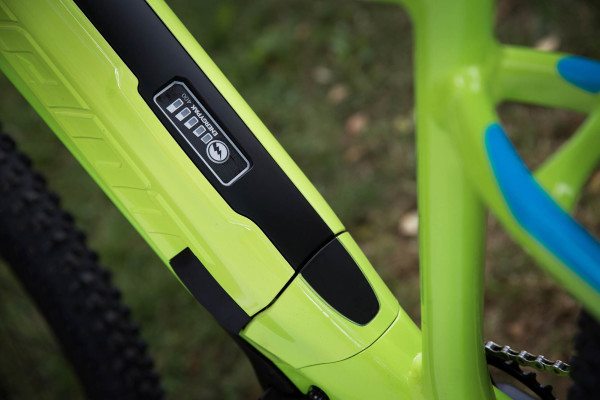

  • Battery
    Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
  • Sizes
    XS,S, M, L, XL
  • Colors
    Green/Blue, Grey/Neon Orange
  • Frame
    ALUXX SL-Grade Aluminum

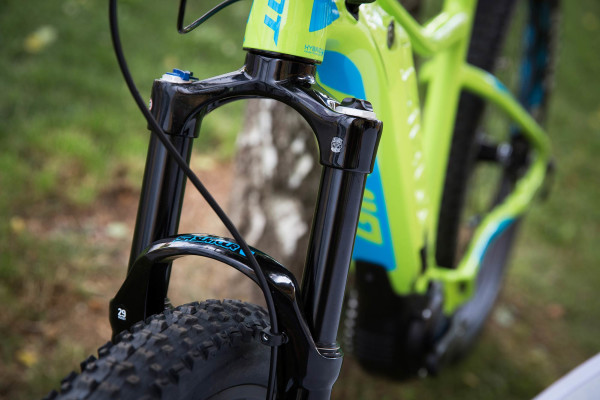

  • Fork
    SR Suntour Raidon 34 LO-R Air 27,5+ 120mm travel, Tapered 1½ - 1⅛" steerer,110x15QR, lockout
  • Handlebar
    Giant Connect Trail 780x31,8mm
  • Stem
    Giant Connect [50 S, 60 M/L, 70XL]
  • Seatpost
    Giant Contact Switch, remote height adjust [100 XS/S/M, 125 L, 150 XL]
  • Saddle
    Giant Contact neutral
  • Pedals
    Aluminum Platform
  • Shifters
    Shimano Deore M6000 10sp i-spec II

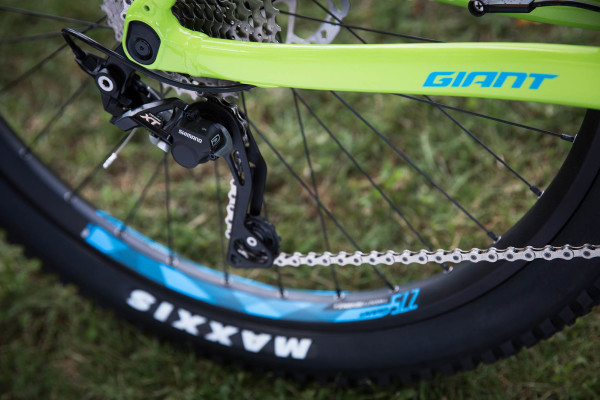

  • Rear Derailleur
    Shimano Deore XT shadow+, 10sp
  • Brakes
    Shimano BR-MT500 180/200mm Disc
  • Brake Levers
    Shimano BL-MT500 i-spec II
  • Cassette
    Shimano HG50-10 11-36T, 10-sp
  • Chain
    KMC X.10e, e-bike optimized

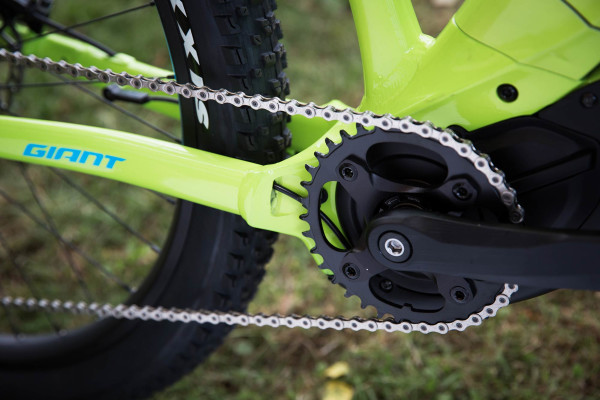

  • Crankset
    Custom forged crankset, Samox AONE 38T, Boost 1x spider
  • Rims
    Giant GE35, Tubeless ready, 27.5" 35mm aluminum, e-bike optimized
  • Hubs
    Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized
  • Spokes
    Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized
  • Tires
    Maxxis Forekaster 27.5x2.6, foldable, Exo protect, Tubeless
  • Extras
    Giant EnergyPak 3A fast charger
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Highlights

The all-new Dirt-E+ Pro lets you tap into an added boost of power to help you tackle the toughest terrain. The compact SyncDrive Sport motor delivers a smooth and instantaneous boost that blends seamlessly with your own pedaling power—so you can ride stronger and longer, even on steep and challenging trails. With its stable, XC-oriented frame and integrated EnergyPak battery, the Dirt-E+ Pro gives you the power to conquer mountains.

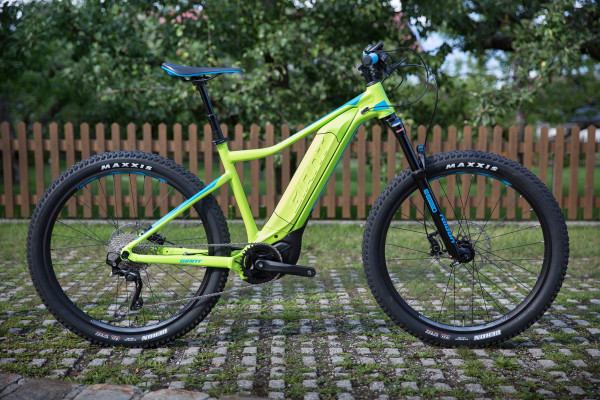

2018 Dirt-E+ Pro with interactive tooltips

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMLXL
ASeat Tube Length (mm) (inch)36514.440515.945517.950519.953521.1
BSeat Tube Angle (degrees)73.0°73.0°73.0°73.0°73.0°
CTop Tube Length (mm) (inch)55521.957522.659523.461524.263525
DHead Tube Length (mm) (inch)1104.31104.31154.51355.31505.9
EHead Tube Angle (degrees)68.0°68.0°68.0°68.0°68.0°
FFork Rake (mm) (inch)461.8461.8461.8461.8461.8
GTrail (mm) (inch)993.9993.9993.9993.9993.9
HWheelbase (mm) (inch)111343.8113344.6115445.4117646.3119747.1
IChain Stay Length (mm) (inch)47018.547018.547018.547018.547018.5
JBottom Bracket Drop (mm) (inch)451.8451.8451.8451.8451.8
KStack (mm) (inch)59923.659923.660423.862324.563725.1
LReach (mm) (inch)37114.639115.441016.142416.744017.3
MStand Over Height (mm) (inch)7372975329.676029.97873179131.1
NHandlebar Width (mm) (inch)78030.778030.778030.778030.778030.7
OStem Length (mm) (inch)502502602.4602.4702.8
PCrank Length (mm) (inch)1706.71706.71706.71706.71706.7
QWheel Size 27.5+27.5+27.5+27.5+27.5+

Techs & Features

ALUXX SL Aluminum Technology
Hybrid Cycling Technology
SyncDrive Pro
RideControl EVO
