This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

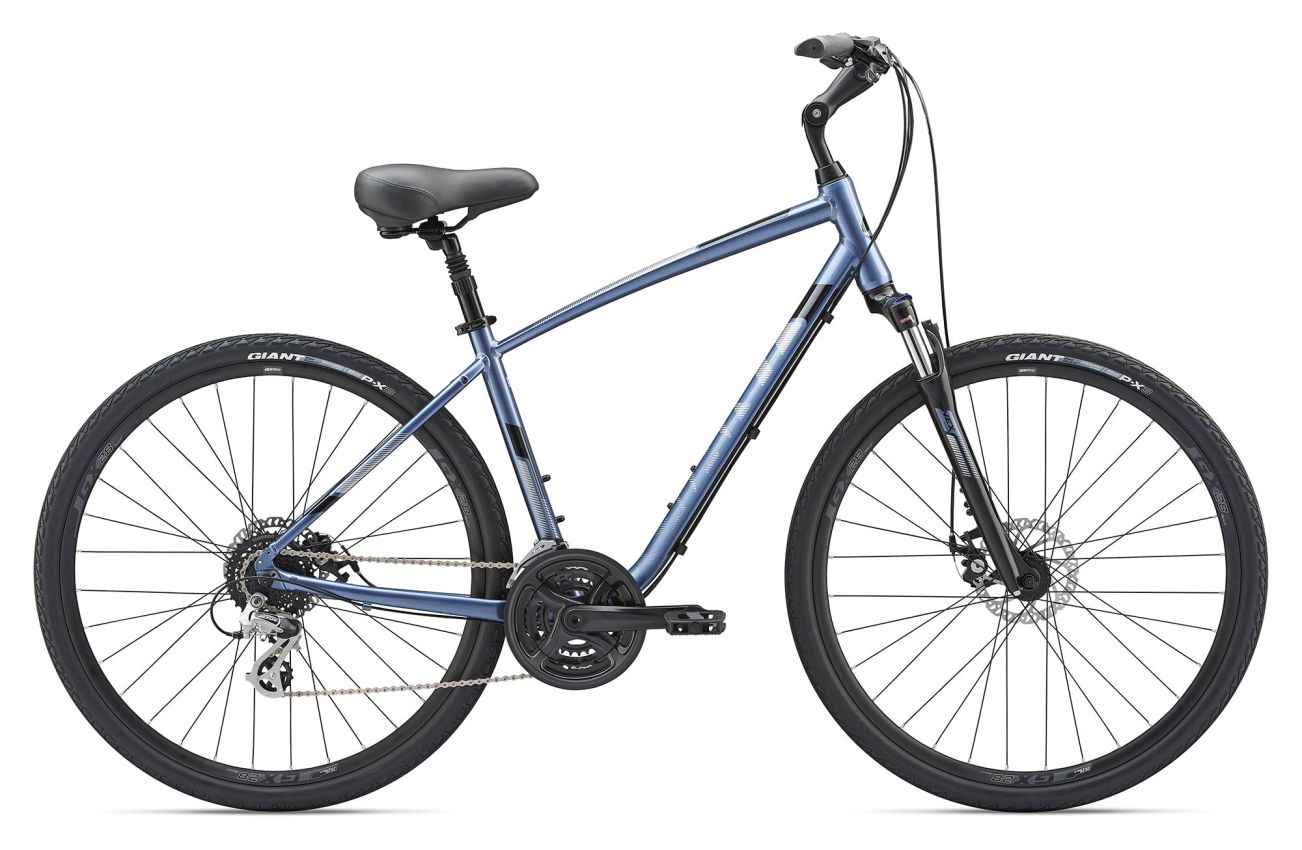

Cypress DX
2019
Here’s your invitation to ride. With its relaxing upright positioning, along with a suspension fork and seatpost to smooth out rough roads or paths, Cypress makes it easy.
Smooth-rolling 700c wheels give Cypress a comfortable ride, even when things get a little bumpy. The suspension seatpost soaks up shocks, and the ALUXX aluminum frame provides a comfortable, upright ride. So you can take it on roads or bike paths, even some dirt. Just keep pedaling and enjoy the ride.
Key Performance Factors
Stable ride quality
Smooth-rolling 700c wheels and an upright position give Cypress a relaxed feel on roads or paths.
Comfort
Suspension fork and seatpost soak up bumps and road vibrations.
High-quality frameset
ALUXX aluminum tubing is lightweight, strong and durable.
Techs & Features
ALUXX Aluminum Technology
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 155 cm5’1”
165 cm5’5”
- S
- 160 cm5’3” 170 cm5’7”
- M
- 170 cm5’7” 180 cm5’11”
- L
- 180 cm5’11” 190 cm6’3”
- XL
- 190 cm6’3” 200 cm6’7”
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| B | Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.5° | 73.5° | 73.5° |
| C | Top Tube Length (mm) (inch) | 55021.7 | 57022.4 | 58523 | 60023.6 | 61524.2 |
| D | Head Tube Length (mm) (inch) | 1505.9 | 1505.9 | 1656.5 | 1857.3 | 2007.9 |
| E | Head Tube Angle (degrees) | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| H | Wheelbase (mm) (inch) | 107442.3 | 108942.9 | 110543.5 | 112144.1 | 113744.8 |
| I | Chain Stay Length (mm) (inch) | 45517.9 | 45517.9 | 45517.9 | 45517.9 | 45517.9 |
| K | Stack (mm) (inch) | 60623.9 | 60623.9 | 62024.4 | 63925.2 | 65325.7 |
| L | Reach (mm) (inch) | 37614.8 | 39015.4 | 40115.8 | 41116.2 | 42116.6 |
| M | Stand Over Height (mm) (inch) | 72628.6 | 74429.3 | 78230.8 | 80831.8 | 83332.8 |
| P | Crank Length (mm) (inch) | 1706.7 | 1706.7 | 1756.9 | 1756.9 | 1756.9 |
The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.
