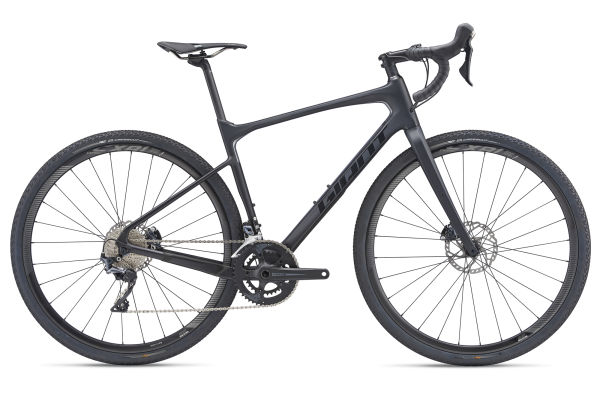

Ready to crush some gravel? With its lightweight, endurance-oriented composite frame, generous tire clearance and smooth ride quality, the all-new Revolt Advanced lets you ride farther and faster on rough roads, gravel or dirt.
Compare Models |
||
Revolt Advanced 0
|
Revolt Advanced 2
|
|
|
Wheels
|
Giant CXR-1 Carbon WheelSystem | Giant P-X2 wheelset |
|---|---|---|
|
Shifters
|
Shimano Ultegra, hydraulic | Shimano 105, 2x11 |
|
Crankset
|
Praxis Zayante, 32/48 | Praxis Alba 2D, 32/48 |
|
Fork
|
Advanced-Grade Composite, full-composite OverDrive steerer, flat mount disc 12mm thru-axle | Advanced-Grade Composite, full-composite OverDrive steerer, flat mount disc 12mm thru-axle |
|
Colors
|
Matte Carbon / Gloss Carbon | Metallic Orange / Gun Metal Black, Deep Gray / Metallic Red / Silver |
This is a performance gravel bike that’s equally adept at tackling paved roads or dirt. That versatility comes in handy when your ride includes a little bit of everything. It’s designed around a lightweight Advanced Composite frameset with endurance geometry, so you can tackle long, hard rides with less fatigue. A composite fork eats up bumps, and the D-Fuse seatpost and Contact XR D-Fuse handlebar absorb shocks and vibrations. The frame is integrated for disc brakes and has clearance for larger tires up to 45c so you can float through the rough stuff. You can also choose smaller diameter 650B rims and even higher volume tires for added control in the most rugged off-road terrain. Add in some clever frame details including three water bottle mounts, the X-Defender downtube protector and smart mount system for racks and accessories, and you have everything you need for your gravel adventures.
High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of the frameset is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Composite fork with an OverDrive tapered steer tube absorbs road shock and vibrations and allows for added tire clearance up to 45c.
A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
Proprietary D-shaped composite seatpost and handlebar work together to dampen vibrations and absorb road shock, resulting in a smooth, compliant ride quality.
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
Frame is engineered with flat-mount disc brake integration for superior braking performance in all weather and road conditions.
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
A massive rectangular downtube forms the link between the oversized OverDrive system and the PowerCore bottom bracket. This precisely engineered, rectangular shape yields unprecedented steering and pedaling stiffness while minimizing weight.
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Compatible with third party accessories, this integrated mounting system makes it easy to customize with racks, fenders and more.
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Specific composite layup and tube shaping, including ultra-thin and flattened seatstays, a low seatstay/seattube junction, and thin, slightly curved fork legs combine for a balanced, compliant ride quality and reduced rider fatigue.
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
