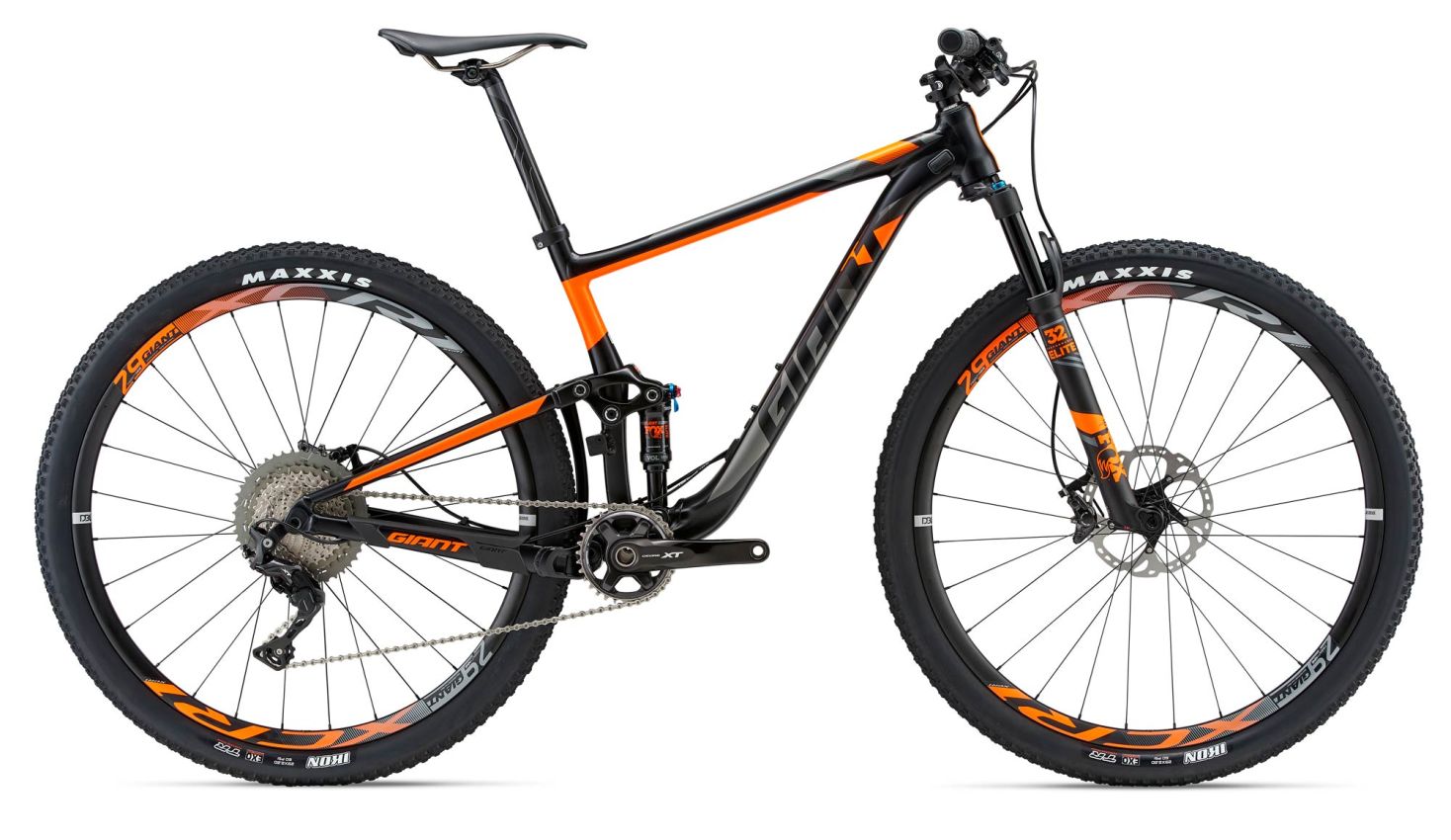

Anthem 29er 1 GI
2018
URALD A TECHNIKÁS TEREPET NAGY SEBESSÉGGEL ÉS MAGABIZTOSSÁGGAL. EZ AZ ÚJ 29-ES TÖKÉLETES VÁLASZTÁS XC VERSENYZÉSRE, MARATONOKRA.
Ez a teljesen újratervezett ALUXX SL, 90 mm-t mozgó alu vázra épített, 100 mm-es villával rendelkező 29-es sebességet, egyensúlyt és irányíthatóságot ad a technikás XC terepen. Az új Maestro felfüggesztés és a modern geometria gyorsabbá és agilisabbá teszi mind az emelkedőkön, mind a lejtőkön. A finoman mozgó trunnion rugóstag javítja a pedálozási hatékonyságot. Az új karbon himbakar könnyebb és erősebb, mint a korábbi alumínium verzió. A Boost agyak még merevebb kerekeket eredményeznek, amelyek még jobb irányíthatóságot nyújtanak a technikás terepen.
- ALUXX SL-grade aluminium frame with 90mm Maestro suspension
- Fox 32 Float SC Performance Elite 100mm-travel fork with remote lockout
- Fox Float Performance Elite trunnion mount rear shock
- Shimano XT 1x11-speed drivetrain
- Shimano XT hydraulic disc brakes
- Giant XCR 1 29 Composite DBL WheelSystem with Maxxis Ikon tubeless tires
- Color: Satin Black/Charcoal/Orange
Techs & Features
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
| S | M | L | XL | |
|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 39015.4 | 44017.3 | 49019.3 | 53521.1 |
| B Seat Tube Angle (degrees) | 73.5° | 73.5° | 73.5° | 73.5° |
| C Top Tube Length (mm) (inch) | 59023.2 | 61024 | 63024.8 | 65025.6 |
| D Head Tube Length (mm) (inch) | 953.7 | 953.7 | 1054.1 | 1154.5 |
| E Head Tube Angle (degrees) | 69.0° | 69.0° | 69.0° | 69.0° |
| F Fork Rake (mm) (inch) | 512 | 512 | 512 | 512 |
| G Trail (mm) (inch) | 893.5 | 893.5 | 893.5 | 893.5 |
| H Wheelbase (mm) (inch) | 111343.8 | 113344.6 | 115445.4 | 117546.3 |
| I Chain Stay Length (mm) (inch) | 43817.2 | 43817.2 | 43817.2 | 43817.2 |
| J Bottom Bracket Drop (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 |
| K Stack (mm) (inch) | 58523 | 58523 | 59423.4 | 60423.8 |
| L Reach (mm) (inch) | 41716.4 | 43717.2 | 45417.9 | 47118.5 |
| M Stand Over Height (mm) (inch) | 74029.1 | 76130 | 79631.3 | 82832.6 |
| N Handlebar Width (mm) (inch) | 78030.7 | 78030.7 | 78030.7 | 78030.7 |
| O Stem Length (mm) (inch) | 602.4 | 702.8 | 803.1 | 903.5 |
| P Crank Length (mm) (inch) | 1706.7 | 1756.9 | 1756.9 | 1756.9 |
| Q Wheel Size | 29 | 29 | 29 | 29 |
The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.
