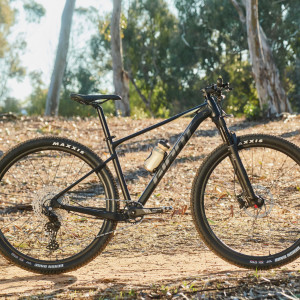

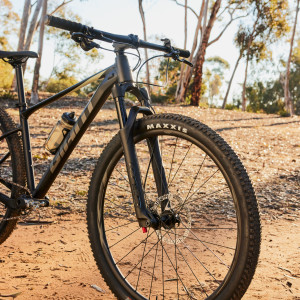

XTC SLR 29 1

€1,899

Skip to compare section

Techs & Features

ALUXX SLR Aluminum Technology
OverDrive
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4” to 172 cm5’8”
  • M
      171 cm5’7” to 180 cm5’11”
  • L
      179 cm5’10” to 188 cm6’2”
  • XL
      187 cm6’2” to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXL
A Seat Tube Length (mm) (inch)380154311747518.752520.7
A1 Seat Post Insertion Depth (mm) (inch)33513.22058.12509.830011.8
B Seat Tube Angle (degrees)74.0°74.0°74.0°74.0°
C Top Tube Length (mm) (inch)59523.461424.26352566526.2
D Head Tube Length (mm) (inch)953.7953.71054.11154.5
E Head Tube Angle (degrees)69.5°69.5°70.0°70.0°
F Fork Rake (mm) (inch)512512512512
G Trail (mm) (inch)953.7953.7953.7953.7
H Wheelbase (mm) (inch)111744113644.7115245.4118346.6
I Chain Stay Length (mm) (inch)44017.344017.344017.344017.3
J Bottom Bracket Drop (mm) (inch)582.3582.3582.3582.3
K Stack (mm) (inch)60723.960723.961824.362824.7
L Reach (mm) (inch)42116.644017.34581848519.1
M Stand Over Height (mm) (inch)72728.675729.878530.981832.2
N Handlebar Width (mm) (inch)74029.174029.174029.174029.1
O Stem Length (mm) (inch)602.4702.8803.1903.5
P Crank Length (mm) (inch)1706.71756.91756.91756.9
Specs
  • Sizes
    S, M, L, XL
  • Colours
    Abyss Black
  • Frame

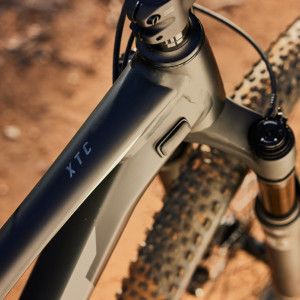

    ALUXX SLR-grade Aluminum, 12x148mm thru-axle
  • Fork

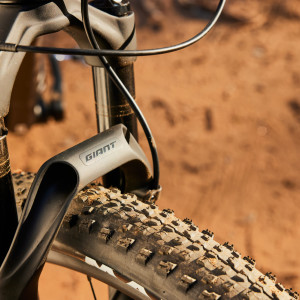

    Giant Crest 34 RRL, 100mm, 15x110, remote lockout
  • Shock
    N/A
  • Handlebar
    Giant Connect XC, 740x31.8mm
  • Grips
    Giant Sole-O
  • Stem
    Giant Contact S:60mm, M:70mm, L:80mm, XL:90mm
  • Seatpost
    Giant Contact Switch Core dropper, remote S: 100mm travel / 30.9 x 350mm M: 100mm travel / 30.9 x 350mm L: 120mm travel / 30.9 x 400mm
  • Saddle
    Giant ErgoContact Trail
  • Shifters
    Shimano SLX M-7100, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano SLX M7100
  • Brakes
    Shimano BR-MT500, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm
  • Brake Levers
    Shimano BR-MT501
  • Cassette
    Shimano SLX, 10x51
  • Chain
    KMC X-12
  • Crankset
    Shimano SLX, 32t S:170mm, M:175mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant XCT 29, 25mm inner width
  • Hubs
    Shimano C500, sealed
  • Spokes
    stainless
  • Tyres
    Maxxis Recon Race 29x2.4, foldable, TLR, EXO, tubeless
  • Extras
    tubeless prepared, 2.4" max tire size, 36t max chainring size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

All specifications listed are subject to change without notice.
