This performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

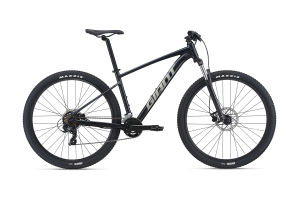

Talon 3
€575
Similar Products
Best For: Trail
Talon 0
€1,099
Best For: Trail
Talon 1
€839
Best For: Trail
Talon 2
€699
Best For: Trail
Talon 4
€519
Get a feel for the trail with this all-new aluminium hardtail made for aspiring singletrack riders. It features stable, fast-rolling 29-inch or more-playful 27.5-inch wheels so you can push the pace on climbs and let loose on the descents.
Built on a new lightweight ALUXX aluminium frame that features classic hardtail design plus the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC or light trail terrain. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.
Key Performance Factors
Proven alloy performance
ALUXX aluminium frameset is hand-built in-house by the world leader in aluminium engineering.
Balance and stability
Frame geometry is designed to optimise the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
XC control
Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.
Highlights
Built on a lightweight ALUXX frameset and modern geometry, the Talon range delivers confident XC performance for aspiring trail riders. Tailored for specific ride characteristics, it’s available in different wheel sizes (29 or 27.5) and either an 80mm or 100mm suspension fork. Here are some of the Talon’s key technologies:
1
Aluxx Aluminum
2
Suspension Fork
Choose either 100mm or 80mm of travel (depending on model and size) for a smoother, more controlled ride on XC terrain
3
Internal Cable Routing
Derailleur and rear brake cables are routed internally from integrated ports near the headtube to an exit point below the bottom bracket. This helps create a cleaner look and protection from the elements.
4
Dropper Post Compatible
30.9mm seattube diameter and clean internal cable routing allows for easy dropper seatpost upgrade
5
Lower Seatstay Junction
Rear triangle is designed with seatstay tubes that meet seattube at a lower point below the top tube junction. This adds compliance for a smoother ride quality and helps reduce overall frame weight.
6
1X and 2X Compatible
Frameset is designed to work with either a single or double chainring crankset. For 2X setups, either a side-swing or down-swing front derailleur can be used
7
Integrated Mounts
Mounts on the seatstays and chainstays make it easy to accessorize with racks, fenders or a rear kickstand
Techs & Features
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
Geometry
| XS (27.5") | S (27.5") | S (29") | M (27.5") | M (29") | L (27.5") | L (29") | XL (29") | XXL (29") | ||
|---|---|---|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 35013.8 | 38515.2 | 39015.4 | 43016.9 | 44017.3 | 49019.3 | 49019.3 | 53521.1 | 56522.2 |
| B | Seat Tube Angle (degrees) | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (mm) (inch) | 54421.4 | 56922.4 | 57722.7 | 59723.5 | 59923.6 | 61824.3 | 62024.4 | 63925.2 | 65825.9 |
| D | Head Tube Length (mm) (inch) | 953.7 | 1154.5 | 953.7 | 1305.1 | 1054.1 | 1556.1 | 1254.9 | 1405.5 | 1556.1 |
| E | Head Tube Angle (degrees) | 67.5° | 67.5° | 68.5° | 67.5° | 68.5° | 67.5° | 68.5° | 68.5° | 68.5° |
| F | Fork Rake (mm) (inch) | 421.7 | 421.7 | 512 | 421.7 | 512 | 421.7 | 512 | 512 | 512 |
| G | Trail (mm) (inch) | 1034.1 | 1034.1 | 943.7 | 1034.1 | 943.7 | 1034.1 | 943.7 | 943.7 | 943.7 |
| H | Wheelbase (mm) (inch) | 107942.5 | 110643.5 | 112644.3 | 113744.8 | 115045.3 | 116245.7 | 117246.1 | 119246.9 | 121347.8 |
| I | Chain Stay Length (mm) (inch) | 44017.3 | 44017.3 | 45517.9 | 44017.3 | 45517.9 | 44017.3 | 45517.9 | 45517.9 | 45517.9 |
| J | Bottom Bracket Drop (mm) (inch) | 451.8 | 451.8 | 552.2 | 451.8 | 552.2 | 451.8 | 552.2 | 552.2 | 552.2 |
| K | Stack (mm) (inch) | 53321 | 57122.5 | 60223.7 | 59823.5 | 61124.1 | 62124.4 | 63024.8 | 64425.4 | 65825.9 |
| L | Reach (mm) (inch) | 38515.2 | 40515.9 | 40415.9 | 42516.7 | 42416.7 | 44017.3 | 43917.3 | 45417.9 | 46918.5 |
| M | Stand Over Height (mm) (inch) | 68627 | 71128 | 73228.8 | 74829.4 | 76630.2 | 79431.3 | 80531.7 | 83933 | 85633.7 |
| N | Handlebar Width (mm) (inch) | 78030.7 | 78030.7 | 78030.7 | 78030.7 | 78030.7 | 78030.7 | 78030.7 | 78030.7 | 78030.7 |
| O | Stem Length (mm) (inch) | 401.6 | 502 | 502 | 602.4 | 602.4 | 702.8 | 702.8 | 803.1 | 903.5 |
| P | Crank Length (mm) (inch) | 1656.5 | 1706.7 | 1706.7 | 1756.9 | 1756.9 | 1756.9 | 1756.9 | 1756.9 | 1756.9 |
| Q | Wheel Size | 27.5" | 27.5" | 29" | 27.5" | 29" | 27.5" | 29" | 29" | 29" |
All specifications listed are subject to change without notice.
