This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

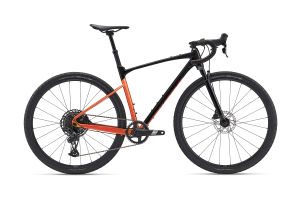

Revolt X 1
€3,199
Unlock new terrain with this progressive gravel bike featuring front suspension. The lightweight aluminum frame has suspension-optimized geometry and a flip chip that lets you adjust wheelbase and tire clearance for any adventure.
Key Performance Factors
Smooth control
Lightweight aluminum frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.
Tuned compliance
Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can use the included suspension/dropper seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.
Techs & Features
ALUXX Aluminum Technology
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Flip Chip - Dropout
Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 159 cm5’3”
171 cm5’7”
- M
- 169 cm5’7” 181 cm5’11”
- ML
- 174 cm5’9” 186 cm6’1”
- L
- 179 cm5’10” 191 cm6’3”
- XL
- 189 cm6’2” 200 cm6’7”
| S | M | ML | L | XL | |
|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (mm) (inch) | 45017.7 | 47018.5 | 49019.3 | 51020.1 | 53020.9 |
| B Seat Tube Angle (degrees) | 73.5° | 73.4° | 73.5° | 73.4° | 73.0° | 72.9° | 73.0° | 72.9° | 73.0° | 72.9° |
| C Top Tube Length (mm) (inch) | 55321.8 | 56022 | 57522.6 | 58523 | 60023.6 |
| D Head Tube Length (mm) (inch) | 1003.9 | 1154.5 | 1305.1 | 1455.7 | 1606.3 |
| E Head Tube Angle (degrees) | 71.0° | 70.9° | 71.5° | 71.4° | 72.0° | 71.9° | 72.0° | 71.9° | 72.0° | 71.9° |
| F Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 | 502 |
| G Trail (mm) (inch) | 76.93 | 80.33.1 | 73.52.9 | 76.83 | 70.12.8 | 73.42.9 | 70.12.8 | 73.42.9 | 70.12.8 | 73.42.9 |
| H Wheelbase (mm) (inch) | 102440.3 | 103440.7 | 102640.4 | 103640.8 | 103140.6 | 104141 | 104141 | 105141.4 | 105741.6 | 106742 |
| I Chain Stay Length (mm) (inch) | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 |
| J Bottom Bracket Drop (mm) (inch) | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 |
| K Stack (mm) (inch) | 56022 | 57622.7 | 59223.3 | 60723.9 | 62124.4 |
| L Reach (mm) (inch) | 38715.2 | 38915.3 | 39315.5 | 39915.7 | 41016.1 |
| M Stand Over Height (mm) (inch) | 73428.9 | 73729 | 75029.5 | 75629.8 | 76730.2 | 77330.4 | 78530.9 | 79231.2 | 80331.6 | 81031.9 |
| N Handlebar Width (mm) (inch) | 44017.3 | 46018.1 | 46018.1 | 48018.9 | 48018.9 |
| O Stem Length (mm) (inch) | 602.4 | 702.8 | 803.1 | 803.1 | 903.5 |
| P Crank Length (mm) (inch) | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q Wheel Size | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
All specifications listed are subject to change without notice.
