You have added
Revolt X 1
to your cart.
Frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

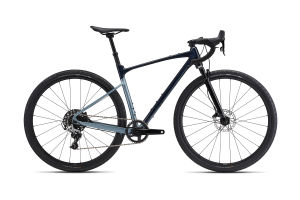

Revolt X 1
€3,299
Unlock new terrain with this progressive new gravel bike featuring front suspension technology. The lightweight aluminum frame has suspension-optimized geometry and a flip chip that lets you adjust wheelbase and tire clearance for any adventure.
Key Performance Factors
Smooth control
Lightweight aluminum frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster over rugged gravel and dirt.
Tuned compliance
Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can use the included dropper/suspension seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.
Highlights
An ALUXX aluminum frameset with suspension-optimized geometry is paired with a purpose-built short-travel (40mm) fork. A flip chip on the rear dropouts allows you to adjust the wheelbase and increase tire clearance up to 53mm.You can use the included dropper seatpost, switch to a proprietary D-Fuse seatpost, or use a traditional 30.9mm round seatpost. A Contact SL D-Fuse handlebar minimizes fatigue by further absorbing shocks and vibrations.
1
Aluxx Aluminum
2
Suspension Fork
40mm of front travel expands this bike’s capabilities, improving control and reducing fatigue while riding rough roads, gravel and dirt.
3
Flip Chip Dropout
Geometry, wheelbase and rear tire clearance can be adjusted using two-position hardware in the rear dropouts. A longer wheelbase adds stability and increases tire clearance (up to 53mm), while a shorter wheelbase delivers a quicker, more agile ride.
4
Compact Road
A downward sloping top tube (from the head tube to the seat tube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
5
D-Fuse Technology
Proprietary D-shaped handlebar works to dampen vibrations and absorb road shock, resulting in a smooth, compliant ride quality.
6
Seatpost Adaptor
New frame design allows you to use the stock dropper seatpost, a proprietary D-Fuse seatpost, or a traditional round 30.9mm seatpost. This lets riders choose the right seatpost for their riding style and terrain.
7
Giant Tubeless System
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
8
Disc-brake Integration
The frame and fork are engineered specifically for disc brakes, producing reliable braking performance in all weather and road conditions.
9
OverDrive
Designed for precise steering performance, this system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper) and tapered steerer tube work together to provide optimal steering stiffness and control.
10
MegaDrive
A massive rectangular down tube and oversized top tube provide superior lateral and torsional steering precision. The precisely engineered, rectangular shaped down tube yields unprecedented steering and pedaling stiffness.
11
PowerCore
A massively oversized bottom-bracket/chainstay area features a threaded, BSA 68 bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Techs & Features
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
Flip Chip - Dropout
Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 159 cm5’3”
171 cm5’7”
- M
- 169 cm5’7” 181 cm5’11”
- ML
- 174 cm5’9” 186 cm6’1”
- L
- 179 cm5’10” 191 cm6’3”
- XL
- 189 cm6’2” 200 cm6’7”
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | Seat Tube Length (mm) (inch) | 45017.7 | 47018.5 | 49019.3 | 51020.1 | 53020.9 |
| B | Seat Tube Angle (degrees) | 73.5° | 73.4° | 73.5° | 73.4° | 73.0° | 72.9° | 73.0° | 72.9° | 73.0° | 72.9° |
| C | Top Tube Length (mm) (inch) | 55321.8 | 56022 | 57522.6 | 58523 | 60023.6 |
| D | Head Tube Length (mm) (inch) | 1003.9 | 1154.5 | 1305.1 | 1455.7 | 1606.3 |
| E | Head Tube Angle (degrees) | 71.0° | 70.9° | 71.5° | 71.4° | 72.0° | 71.9° | 72.0° | 71.9° | 72.0° | 71.9° |
| F | Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 | 502 |
| G | Trail (mm) (inch) | 76.93 | 80.33.1 | 73.52.9 | 76.83 | 70.12.8 | 73.42.9 | 70.12.8 | 73.42.9 | 70.12.8 | 73.42.9 |
| H | Wheelbase (mm) (inch) | 102440.3 | 103440.7 | 102640.4 | 103640.8 | 103140.6 | 104141 | 104141 | 105141.4 | 105741.6 | 106742 |
| I | Chain Stay Length (mm) (inch) | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 |
| J | Bottom Bracket Drop (mm) (inch) | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 |
| K | Stack (mm) (inch) | 56022 | 57622.7 | 59223.3 | 60723.9 | 62124.4 |
| L | Reach (mm) (inch) | 38715.2 | 38915.3 | 39315.5 | 39915.7 | 41016.1 |
| M | Stand Over Height (mm) (inch) | 73428.9 | 73729 | 75029.5 | 75629.8 | 76730.2 | 77330.4 | 78530.9 | 79231.2 | 80331.6 | 81031.9 |
| N | Handlebar Width (mm) (inch) | 44017.3 | 46018.1 | 46018.1 | 48018.9 | 48018.9 |
| O | Stem Length (mm) (inch) | 602.4 | 702.8 | 803.1 | 803.1 | 803.1 |
| P | Crank Length (mm) (inch) | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q | Wheel Size | 700c | 700c | 700c | 700c | 700c |
All specifications listed are subject to change without notice.
