Revolt 2

€1,379

What is my size?

Item # {{ partnumber.code }}

{{partnumber.supplementaryGroup.introText}} {{partnumber.supplementaryGroup.urlLabel}}

{{partnumbersByColor()[0].description}}{{partnumbersByColor()[0].globalFrameSize}}

{{partnumbersByColor()[0].priceToFormat}}

{{partnumbersByColor()[0].stock.Label}}

Ships from warehouse and will be available for pick-up at any Giant retailer in about 7-10 business days.

Expected in our warehouse around {{partnumber.stock.DateExpectedToFormat}}  and shipped to any Giant retailer in about 1 week{{partnumber.stock.DateExpectedToWeeks}}-{{partnumber.stock.DateExpectedToWeeks + 1}} weeks

The product you have selected is currently out of stock in our warehouse but there may be a retailer in your area that has the product in stock. Please contact your Giant retailer for availability.

In store now and available for pick up in 3- 5 business days at these Giant retailers (distance from {{ dealercity }}): Or pick it up in 3- 5 business days at a Giant retailer that we know to have it in store now near {{ dealercity }}:

  • {{ item.Name | limitTo : 22 }}{{item.Name.length > 22 ? '..' : ''}}

    {{item.Name}}

    {{ item.DistanceToFormat }} KM | {{ item.City }} {{ item.State }}
    Show details Hide details

    {{item.Street}}
    {{item.Zipcode}} {{item.City}}
    Phone: {{item.Phone}}
    {{ item.Email }}
  • No stores found
Show more Find more stores

Notify me when available at any Giant retailer

If you are willing to take a road trip, the bike is available in 1-2 days at these Giant retailers more than 100 km. from {{ dealercity }}.

Show retailers that have this size in store now

Share

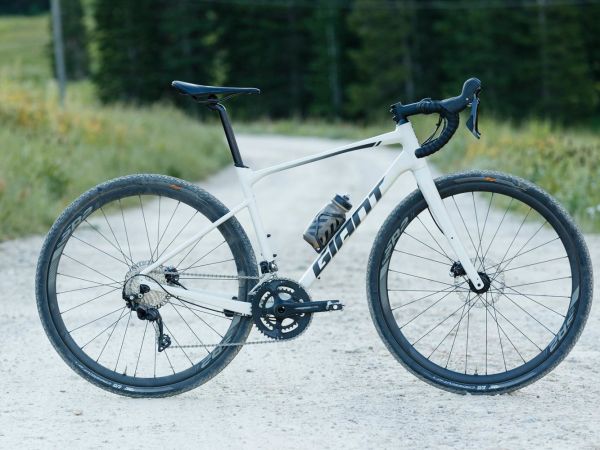

Gravel, dirt and scenic backroads offer some of the best opportunities for freedom and adventure. This lightweight aluminium all-rounder is the perfect way to get away from it all and explore the places you’ve always thought about but never ridden.

Whether you ride dirt roads, trails, gravel or a mix of everything, you want a bike that floats right through it, keeps you in control, and is comfortable for long days in the saddle. The Revolt delivers on all accounts. It features a lightweight ALUXX aluminium frame and composite fork, each engineered to balance stiffness and compliance. It comes with integrated components including the D-Fuse seatpost and Contact XR D-Fuse handlebar to further absorb road shocks and vibrations. The frame is integrated for disc brakes and it has clearance for larger tyres up to 45mm.

Key Performance Factors

Versatile gravel geometry

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. The result is confident speed in all situations, from out-of-the-saddle climbs to rugged dirt descents.

Tuned compliance

Innovative Contact XR D-Fuse handlebar and D-Fuse seatpost work as a system to help absorb shock without sacrificing the stiffness needed for aggressive road performance. Added frame clearance for high-volume tyres up to 45mm helps smooth out rough roads, gravel and dirt.

All-rounder efficiency

The ALUXX aluminium frame delivers efficient pedaling power and all-round versatility, giving you a smooth, fast ride quality on variable riding surfaces.

Highlights

Whether you ride dirt roads, trails, gravel or a mix of everything, you want a bike that floats right through it, keeps you in control, and is comfortable for long days in the saddle. The Revolt delivers on all accounts. It features a lightweight ALUXX aluminum frame and composite fork, each engineered to balance stiffness and compliance. It comes with integrated components including the D-Fuse composite seatpost and Contact XR D-Fuse handlebar to further absorb road shocks and vibrations. The frame is integrated for disc brakes and it has clearance for larger tires up to 45mm.

Revolt with interactive tooltips

Techs & Features

OverDrive
D-Fuse Technology
Tubeless System
ALUXX Aluminum Technology
360-View
Revolt 2

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMMLLXL
ASeat Tube Length (mm) (inch)45017.747018.549019.351020.153020.9
BSeat Tube Angle (degrees)73.5°73.5°73.0°72.5°72.5°
CTop Tube Length (mm) (inch)54021.355021.756522.257522.659023.2
DHead Tube Length (mm) (inch)1355.31505.91656.51807.11957.7
EHead Tube Angle (degrees)70.5°70.5°71.0°71.0°71.0°
FFork Rake (mm) (inch)502502502502502
GTrail (mm) (inch)75375371.62.871.62.871.62.8
HWheelbase (mm) (inch)102540.4103640.8104141105141.4106742
IChain Stay Length (mm) (inch)43016.943016.943016.943016.943016.9
JBottom Bracket Drop (mm) (inch)702.8702.8702.8702.8702.8
KStack (mm) (inch)5582257222.558823.160123.761524.2
LReach (mm) (inch)37514.83811538515.239115.440215.8
MStand Over Height (mm) (inch)73128.874929.576530.178330.880031.5
NHandlebar Width (mm) (inch)42016.544017.344017.346018.146018.1
OStem Length (mm) (inch)803.1903.51003.91003.91104.3
PCrank Length (mm) (inch)1706.7172.56.8172.56.81756.91756.9
QWheel Size 700C700C700C700C700C
Specs
  • Sizes
    S, M, ML, L, XL
  • Colours
    Matte Concrete
  • Frame
    ALUXX Grade Aluminium, disc. Compatible with fenders
  • Fork
    full composite, OverDrive steerer, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact XR Ergo-Control, 31.8
  • Stem
    Giant Sport
  • Seatpost
    Giant D-Fuse, alloy
  • Saddle
    Giant Approach
  • Pedals
    N/A
  • Shifters
    Shimano Sora
  • Front Derailleur
    Shimano Sora
  • Rear Derailleur
    Shimano Sora
  • Brakes
    Tektro MD-C550
  • Brake Levers
    Shimano Sora
  • Cassette
    Shimano CH-HG400, 11x34
  • Chain
    KMC X9 with Missing Link
  • Crankset
    FSA Vero Pro, 32/48
  • Bottom Bracket
    FSA MegaExo, press fit
  • Rims
    Giant S-X2 Disc wheelset
  • Hubs
    Giant S-X2 Disc wheelset
  • Spokes
    Giant S-X2 Disc wheelset
  • Tyres
    Giant CrossCut AT 2 Tubeless, 700x38C (max tyre width possible: 45mm)
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All specifications listed are subject to change without notice.
