Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimize each tube shape to deliver superior aerodynamic performance.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

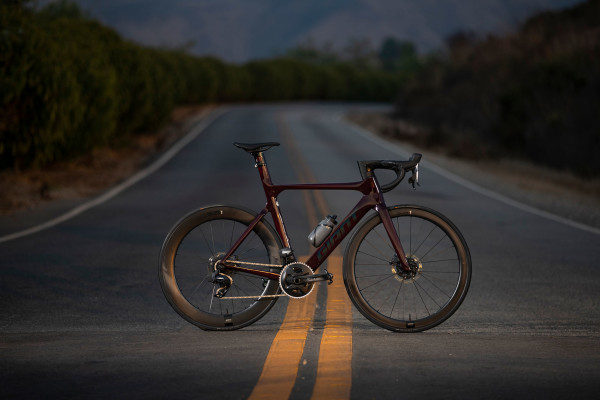

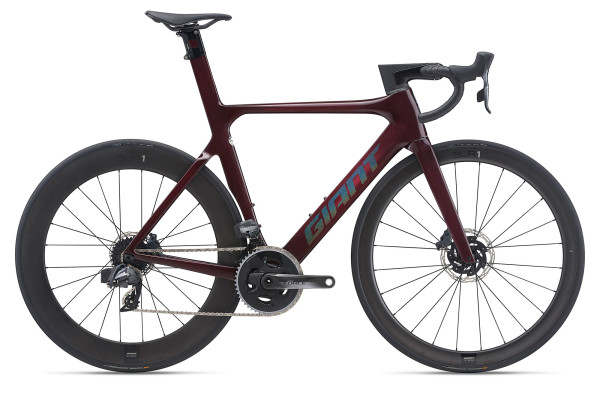

Propel Advanced SL Disc 1
€7,999
When speed is your obsession, this is your bike. You train, you put in the work, and this aero machine does the rest. Built to give you an edge when it really counts—on the attack, in the sprint, going all out—it delivers energy-saving efficiency and race-winning aero performance.
Developed and proven by the fastest sprinters on the CCC Team WorldTour squad, the Propel Advanced SL Disc delivers ultimate speed through integrated aerodynamics. It’s engineered with Giant’s AeroSystem Shaping technology, which means every tube shape and angle is optimised for minimal drag. These tubes feature a truncated ellipse shape, which also result in a frame that is ultra-stiff and superlight. Disc-brake technology is integrated into the frameset with flat-mount calipers and thru-axles for optimal wheel stiffness and braking performance. For pro-level road performance and the ultimate aero advantage, the Propel Advanced SL Disc puts you ahead of the pack.
Key Performance Factors
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce the best overall aero performance.
Total control
Integrated disc brakes deliver powerful stopping power and modulation for added control in all conditions and weather. Thru-axles boost stiffness and improve overall handling. And an integrated WheelSystem with a 65mm rear rim and 42mm front rim optimises aerodynamics and control.
Unrivaled efficiency
Advanced SL-grade composite frameset features Giant’s highest performance materials and manufacturing processes for optimised stiffness and the lowest weight in its category.

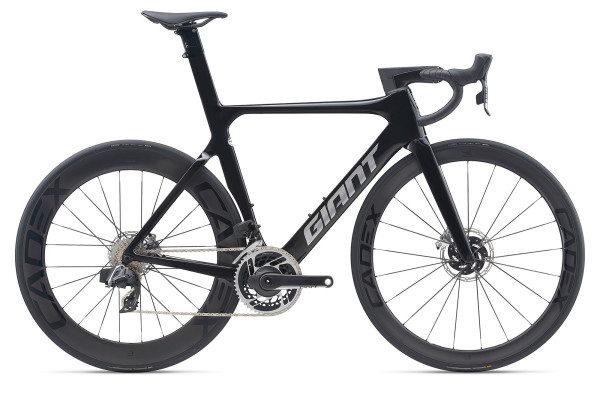

Highlights
Developed and proven by the fastest sprinters on the CCC Team WorldTour squad, the Propel Advanced SL Disc delivers ultimate speed through integrated aerodynamics. It’s engineered with Giant’s AeroSystem Shaping technology, which means every tube shape and angle is optimized for minimal drag. These tubes feature a truncated ellipse shape, which also result in a frame that is ultra-stiff and superlight. Disc-brake technology is integrated into the frameset with flat-mount calipers and thru-axles for optimal wheel stiffness and braking performance. For pro-level road performance and the ultimate aero advantage, the Propel Advanced SL Disc puts you ahead of the pack.
1
Aerosystem Shaping Technology
2
Vector Integrated Seatpost
Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 45 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.
3
Advanced SL Composite Frame
Giant's Professional Grade carbon material is woven in our own composite factory using a proprietary resin formula and our most advanced engineering and construction methods including: Continuous Fiber Technology, CNT Technology and Fusion Process.
4
OverDrive 2
Giant’s most advanced steerer tube technology offers unprecedented steering precision. Oversized headset bearings (1 1/2” lower, 1 1/4” upper) and a tapered steerer tube produce superior front-end stiffness.
5
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
6
Internal Cable Routing
Frame/handlebar/stem feature unique cable porting for sleek, non-cluttered appearance and performance.
7
Disc-Brake Integration
The frame and fork are engineered specifically for flat-mount disc-brakes, including front and rear 12mm thru-axles for reliable braking performance in all weather and road conditions.
8

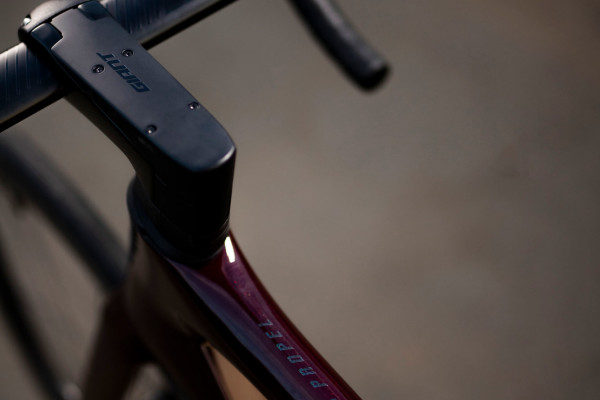

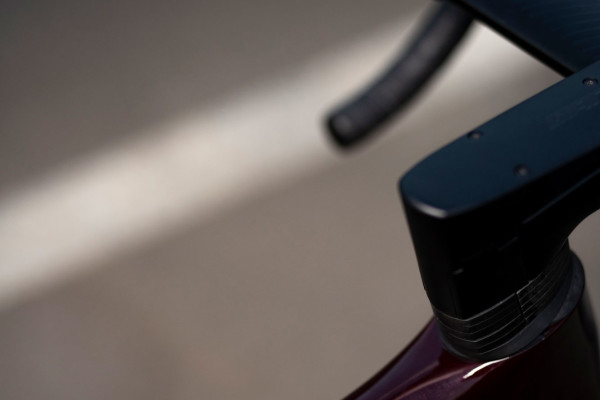

Contact SLR Bar/Stem
Composite integrated handlebar-and-stem unit improves aero performance with wind-tunnel shaped airfoil design and internal cable routing.
Techs & Features
Advanced SL Composite Technology
Professional Grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.
AeroSystem Shaping Technology
Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimize each tube shape to deliver superior aerodynamic performance.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
OverDrive 2
The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
RideSense Ready
This frame comes prepared to accept the Giant RideSense sensor and accompanying hardware.
Geometry
| S | M | ML | L | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 71028 | 74029.1 | 77030.3 | 79031.1 |
| B | Seat Tube Angle (degrees) | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (mm) (inch) | 53521.1 | 55021.7 | 57022.4 | 58022.8 |
| D | Head Tube Length (mm) (inch) | 1305.1 | 1455.7 | 1656.5 | 1857.3 |
| E | Head Tube Angle (degrees) | 72.5° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 |
| G | Trail (mm) (inch) | 602.4 | 572.2 | 572.2 | 572.2 |
| H | Wheelbase (mm) (inch) | 97038.2 | 97638.4 | 99739.3 | 100739.6 |
| I | Chain Stay Length (mm) (inch) | 40515.9 | 40515.9 | 40515.9 | 40515.9 |
| J | Bottom Bracket Drop (mm) (inch) | 682.7 | 682.7 | 652.6 | 652.6 |
| K | Stack (mm) (inch) | 52920.8 | 54521.5 | 56222.1 | 58122.9 |
| L | Reach (mm) (inch) | 37814.9 | 38315.1 | 39815.7 | 40215.8 |
| M | Stand Over Height (mm) (inch) | 76930.3 | 78731 | 80731.8 | 82932.6 |
| N | Handlebar Width (mm) (inch) | 40015.7 | 42016.5 | 42016.5 | 44017.3 |
| O | Stem Length (mm) (inch) | 903.5 | 1003.9 | 1104.3 | 1104.3 |
| P | Crank Length (mm) (inch) | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
All specifications listed are subject to change without notice.
