This state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset also features unique welding technologies for a high-performance ride quality.

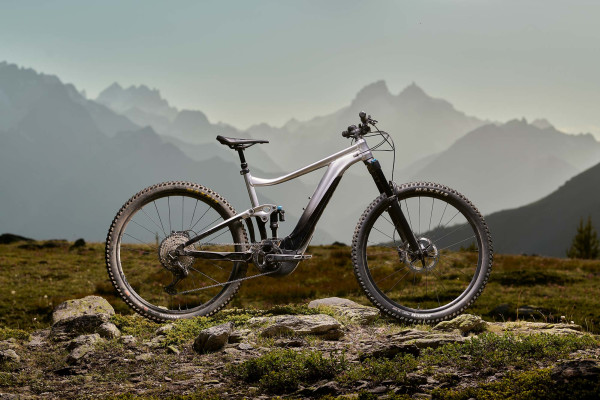

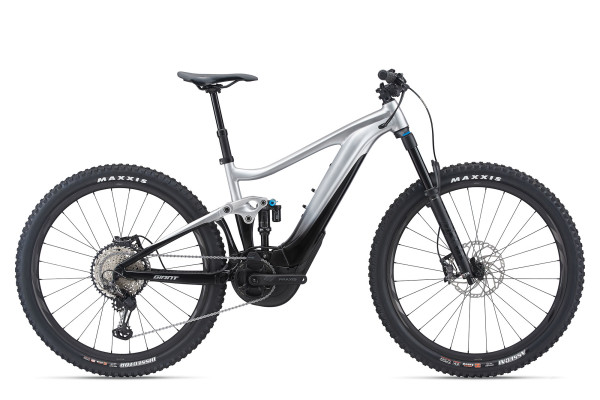

Trance X E+ Pro 29 Electric Bike
Faster up the climbs, longer loops, more singletrack fun on any given day. Give yourself the freedom to extend your trail-riding adventures with this powerful, smooth-riding 29er.
Compare Models |
|||
Trance X E+ Pro 29 1 Electric Bike
View bike
|
Trance X E+ Pro 29 2 Electric Bike
View bike
|
Trance X E+ Pro 29 3 Electric Bike
View bike
|
|
|
Motor
|
Giant SyncDrive Pro, 80Nm | Giant SyncDrive Pro, 80Nm | Giant SyncDrive Pro, 80Nm |
|---|---|---|---|
|
Display
|
N/A | N/A | N/A |
|
Battery
|
Giant EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible | Giant EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible | Giant EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible |
|
Wheels
|
Giant e-TR1 29, Tubeless ready, 30mm inner width | Giant AM 29", Tubeless ready, 30mm inner width | Giant AM 29", Tubeless ready, 30mm inner width |
|
Fork
|
Fox 36 Float Performance Elite, 150mm travel, 44mm offset, FIT4, 3Pos-Adj. Damper, Boost 110x15QR, e-optimized | Fox 36 Float Rhythm, 150mm travel, 44mm offset, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-optimised | RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimised |
|
Colours
|

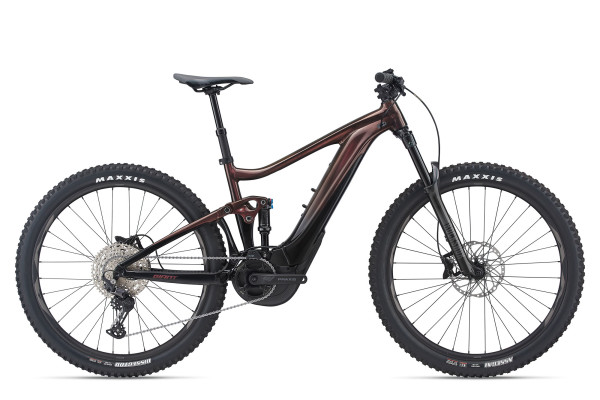

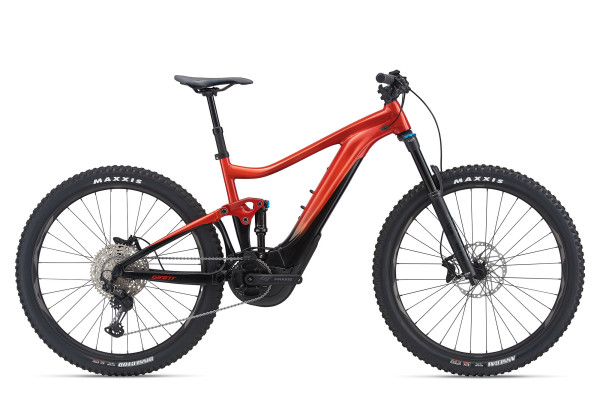

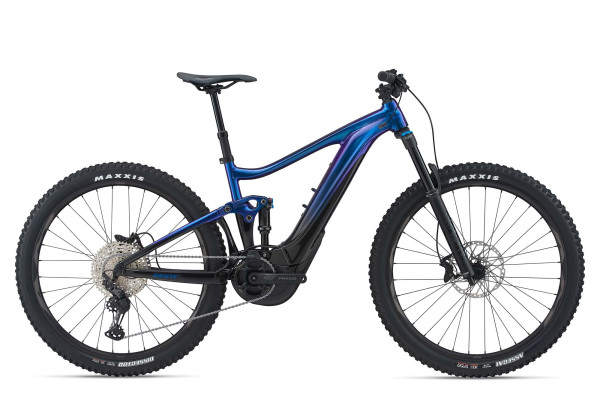

Gloss Polish Silver/Black | Gloss Chameleon Neptune/Black | Gloss Chameleon Mars/Black |
Highlights
The new Trance X E+ Pro 29 gives you the freedom to ride trails the way you want to. You can choose full power to ease your pedaling effort or tune it less aggressively to get more of a workout. Featuring 140mm of smooth Maestro suspension travel in the rear, 150mm up front, and progressive frame geometry that’s designed for 29-inch wheels, this is a whole new way to tackle technical singletrack trails.
1
Aluxx SL Aluminum Frame
2
Hybrid Cycling Technology
This innovative system combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control unit, EnergyPak battery systems and SyncDrive Pro motor.
3
SyncDrive Pro Motor
Tuned to deliver a powerful, performance-oriented riding style for challenging trails and higher cadences, this motor delivers 80Nm of power output with superior torque and support ratios up to 360 percent. The motor engages instantly when power is applied to the pedals.
4

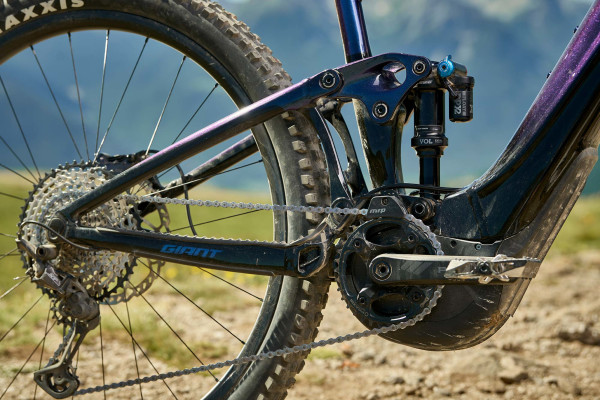

Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
5
Adjustable Frame Geometry
Flip-chip adjustability lets you switch between two settings depending on the terrain you are riding. You can select either 66.5 or 65.8-degree head angle and 76.7 or 76.0-degree seattube angle, resulting in either a 20mm or 30mm bottom bracket drop.
6

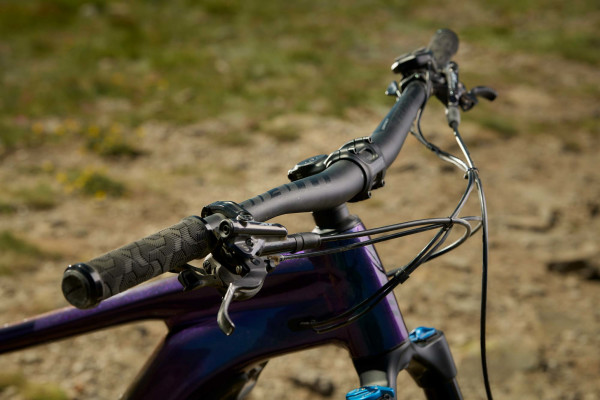

RideControl Ergo
Handlebar-mounted control unit allows you to adjust the support mode and view the battery level. Ergonomic buttons are built for easy use in off-road riding conditions, and a minimalist design offers a clean, uncluttered handlebar layout.
7
Smart Assist
Six smart sensors precisely measure the power being applied to the pedals so the motor can provide just the right amount of assistance to create a natural, powerful riding experience. This helps optimize energy efficiency for both the rider and the battery system.
8
Giant E-Bike App
RideControl Ergo can wirelessly connect with the Giant E-bike App so your smart phone can function as a display for ride data and system updates.
9
Giant Tubeless System
Integrated Tubeless WheelSystem and tire deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
10
EnergyPak 625
Our most advanced E-bike battery system is cleanly integrated within the downtube of the frame. Continuous communication between the battery and charger provides fast charging. Batteries can charge up to 80 percent in 2.2 hours.
Techs & Features
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
Energypak
Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of riding.

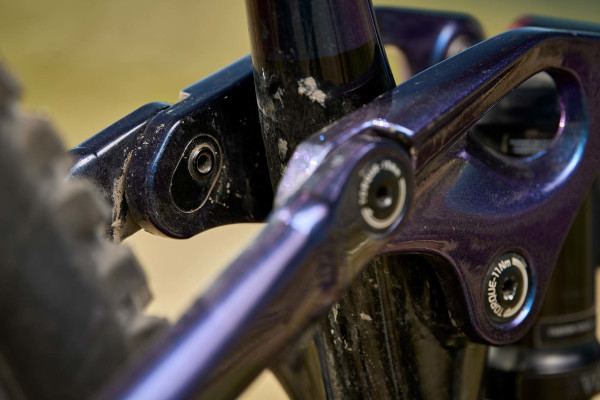

Flip Chip - Maestro
The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.
Hybrid Cycling Technology
Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control unit, EnergyPak battery systems and SyncDrive motor.
For more information, check out the link below.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
Smart Assist
All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.
SyncDrive Pro
SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact SyncDrive Pro motor is used primarily on Giant’s high-performance models.
