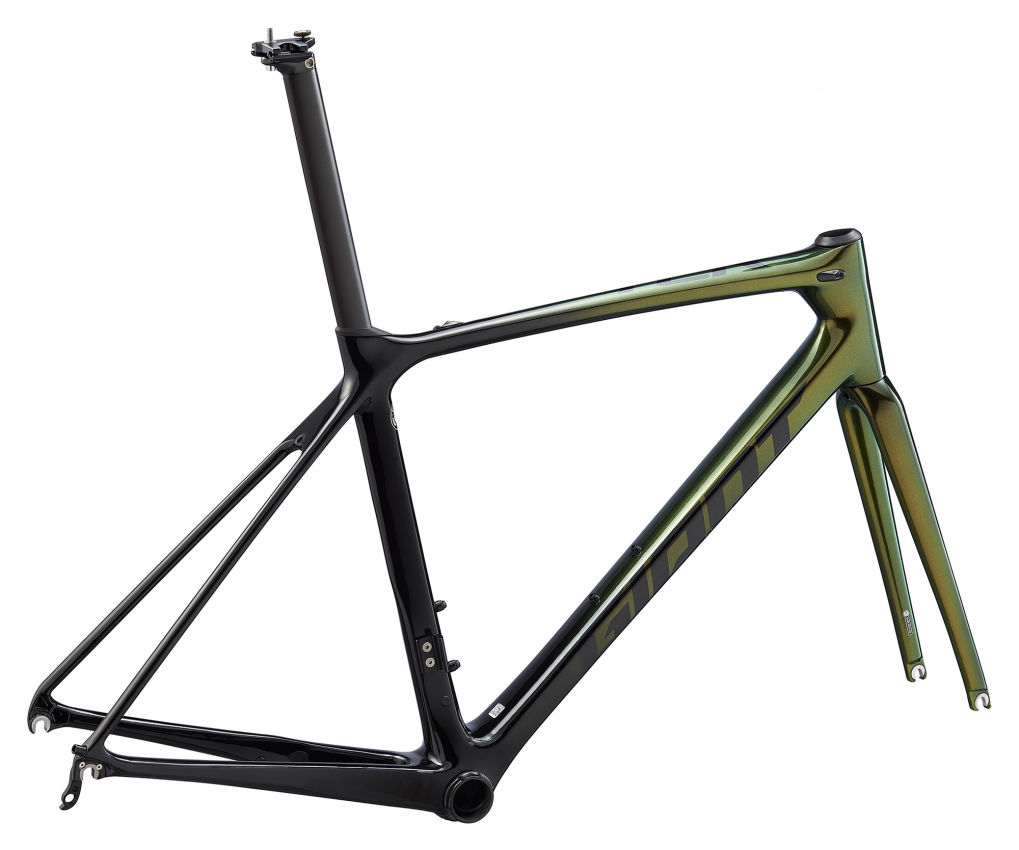

TCR Advanced Pro Frameset
From daily training rides to your biggest race of the year. Lightweight, stiff and ultra-efficient, this composite machine delivers pure road performance for chasing podiums.
With its Advanced-grade composite frame, which minimizes weight without sacrificing best-in-class stiffness, the TCR Advanced Pro puts you in position to win. Legendary Compact Road race geometry blends quick, precise handling with aggressive positioning, and the OverDrive 2 front end delivers razor-sharp steering performance. Our tubeless WheelSystem delivers speed and efficiency with a smoother ride and a reduced risk of flats, and the Variant seatpost reduces overall weight and gives it a race-tuned feel. It’s a well-rounded machine that flies from start to finish.
Meghatározó jellemzők
Lightweight efficiency
Composite frameset is engineered to offer minimal weight without sacrificing pedaling stiffness and efficiency.
Pro pedigree
Proven geometry and precise steering stiffness makes this frame design the choice of climbers and all-rounders who compete at the Giro d’Italia, Tour de France and other major races around the world.
Speed and compliance
The Variant composite seatpost and Giant WheelSystem with tubeless tires combine for a smooth ride and low rolling resistance.
Méretválasztás és geometria
A méretezés csak referenciaként használható. A megfelelő méret meghatározásához forduljon a helyi hivatalos forgalmazóhoz.
Az elérhető méretek országonként eltérőek lehetnek.
- XS
- 157 cm5’2”
169 cm5’7”
- S
- 165 cm5’5” 175 cm5’9”
- M
- 171 cm5’7” 181 cm5’11”
- ML
- 177 cm5’10” 187 cm6’2”
- L
- 183 cm6’0” 193 cm6’4”
- XL
- 189 cm6’2” 199 cm6’6”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Nyeregcső hossz (mm) (inch) | 42516,7 | 44517,5 | 47018,5 | 50019,7 | 52520,7 | 55021,7 |
| B | Nyeregcső szög (degrees) | 74,5° | 73,5° | 73,0° | 73,0° | 73,0° | 72,0° |
| C | Felsőcső hossz (mm) (inch) | 51520,3 | 53521,1 | 55021,7 | 57022,4 | 58022,8 | 60523,8 |
| D | Fejcső hossz (mm) (inch) | 1234,8 | 1335,2 | 1485,8 | 1686,6 | 1887,4 | 2038 |
| E | Fejcsőszög (degrees) | 71,0° | 72,5° | 73,0° | 73,0° | 73,0° | 73,0° |
| F | Fork Rake (mm) (inch) | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 |
| G | Trail (mm) (inch) | 702,8 | 602,4 | 572,2 | 572,2 | 572,2 | 572,2 |
| H | Keréktávolság (mm) (inch) | 97238,3 | 97038,2 | 97638,4 | 99739,3 | 100739,6 | 102140,2 |
| I | Láncvilla hossz (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J | Középcsapágy esés (mm) (inch) | 702,8 | 682,7 | 682,7 | 652,6 | 652,6 | 652,6 |
| K | Stack (mm) (inch) | 51720,4 | 52920,8 | 54521,5 | 56222,1 | 58122,9 | 59523,4 |
| L | Reach (mm) (inch) | 37214,6 | 37814,9 | 38315,1 | 39815,7 | 40215,8 | 41216,2 |
| M | Átlépési magasság (mm) (inch) | 72428,5 | 74229,2 | 76530,1 | 78731 | 80531,7 | 82332,4 |
| N | Kormányszélesség (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 | 44017,3 | 44017,3 |
| O | Kormányszár hossz (mm) (inch) | 803,1 | 903,5 | 1003,9 | 1104,3 | 1104,3 | 1204,7 |
| P | Hajtókar hossz (mm) (inch) | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 | 1756,9 | 1756,9 |
| Q | Kerékméret | 700C | 700C | 700C | 700C | 700C | 700C |
A felsorolt leírások előzetes értesítés nélkül is változhatnak.
