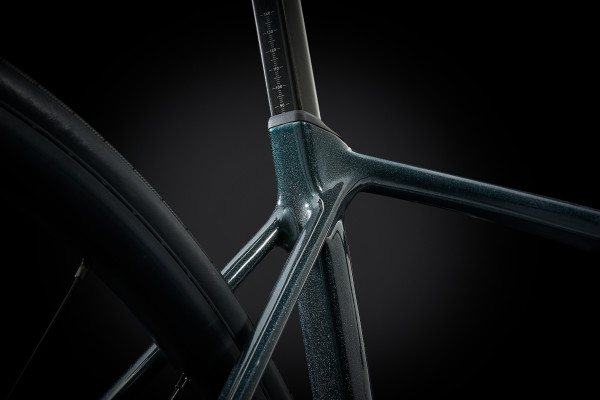

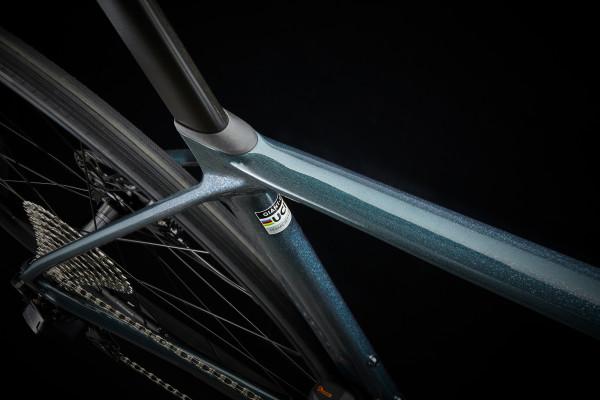

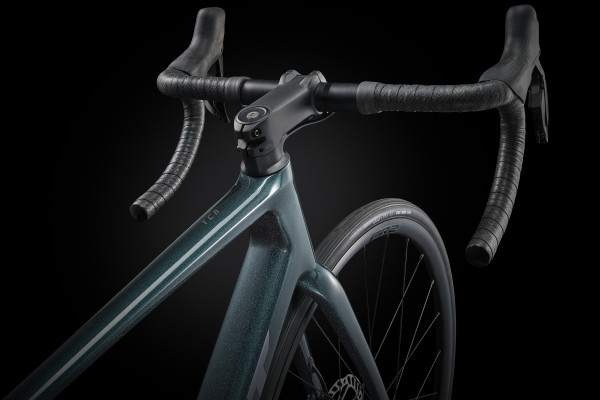

MY25 TCR Advanced 1-KOM_Color A Asphalt Green MY25 TCR Advanced 1-KOM_Color A Asphalt Green_Front MY25 TCR Advanced 1-KOM_Color A Asphalt Green_D-5 MY25 TCR Advanced 1-KOM_Color A Asphalt Green_D-7 MY25 TCR Advanced 1-KOM_Color A Asphalt Green_D-3 MY25 TCR Advanced 1-KOM_Color A Asphalt Green-D2 MY25 TCR Advanced 1-KOM_Color B Mars Dust MY25 TCR Advanced 1-KOM_Color B Mars Dust-D1

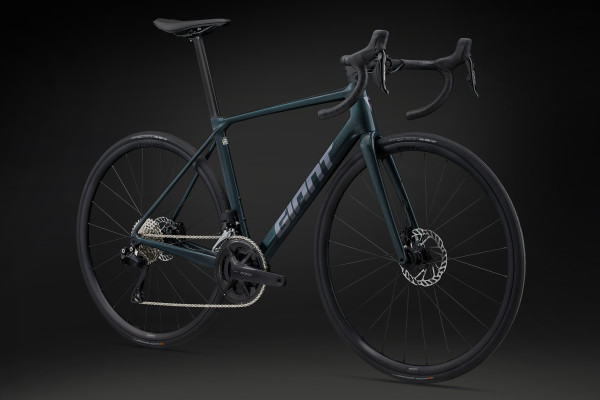

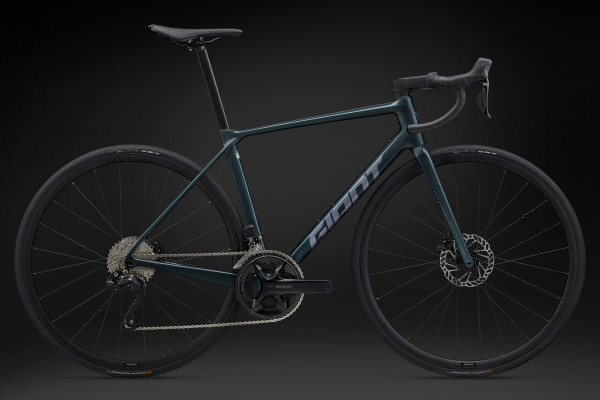

TCR Advanced 1 KOM

1 439 900 Ft

Similar Products

Best For: Race

TCR Advanced 0 AXS

1 849 900 Ft

Best For: Race

TCR Advanced 0 PC

1 649 900 Ft

Best For: Race

TCR Advanced 1 PC

1 439 900 Ft

Best For: Race

TCR Advanced 2 KOM

1 149 900 Ft

Best For: Race

TCR Advanced 2 PC

1 149 900 Ft

Built to go faster. Whether you’re climbing, cornering or launching an attack, this all-new composite road racer is made for that moment. Lightweight, efficient, and integrated for speed, it’s engineered to give you a competitive edge in every situation.

Meghatározó jellemzők

SYSTEM OPTIMIZATION

The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

MADE FASTER

Newly integrated components including the Contact AeroLight stem create a sleeker, more aero profile. The Variant seatpost adds just enough compliance for a balanced, race-tuned feel on the road, while generous tire clearance (up to 33mm) and compliant wheels keep you rolling with speed on smooth or bumpy roads.

TCR Advanced with interactive tooltips

Technológiák

Advanced Composite Technology
Compact Road Design
Tubeless System

Méretválasztás és geometria

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
ANyeregcső hossz (mm) (inch)42516,744517,547018,550019,753020,956022
BNyeregcső szög (degrees)74,5°74,0°73,5°73,0°73,0°72,5°
CFelsőcső hossz (mm) (inch)52020,553521,155021,756522,258022,860023,6
DFejcső hossz (mm) (inch)1204,71305,11455,71656,51857,32007,9
EFejcsőszög (degrees)71,0°72,3°73,5°73,0°73,0°72,5°
FFork Rake (mm) (inch)451,8451,8451,8451,8451,8451,8
GNyom (mm) (inch)722,8642,5592,3592,3592,3592,3
HKeréktávolság (mm) (inch)97638,497738,598038,699139100639,6102040,2
ILáncvilla hossz (mm) (inch)40515,940515,940515,940515,940515,940515,9
JKözépcsapágy esés (mm) (inch)722,869,52,769,52,7672,6672,6672,6
KStack (mm) (inch)51720,452820,854521,556222,158122,959623,5
LReach (mm) (inch)37614,838315,138815,339315,540215,841216,2
MÁtlépési magasság (mm) (inch)70327,772228,474329,377130,479831,482232,4
NKormányszélesség (mm) (inch)40015,740015,742016,542016,544017,344017,3
OSzár hossza (mm) (inch)803,1903,51003,91104,31104,31204,7
PHajtókar hossz (mm) (inch)1706,71706,7172,56,8172,56,81756,91756,9
QKerékméret 700C700C700C700C700C700C
Felszereltség
  • Méretek
    XS, S, M, M/L, L, XL
  • Szín
    Asphalt Green, Mars Dust
  • Váz
    Advanced-Grade Composite, 12x142mm thru-axle, disc
  • Villa
    Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
  • Kormány
    Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
  • Markolat
    Stratus Lite 2.0
  • Stucni
    Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
  • Nyeregcső
    Giant Variant, composite, -5/+15mm offset
  • Nyereg
    Giant Approach
  • Pedálok
    N/A
  • Váltókarok
    Shimano 105 Di2
  • Első váltó

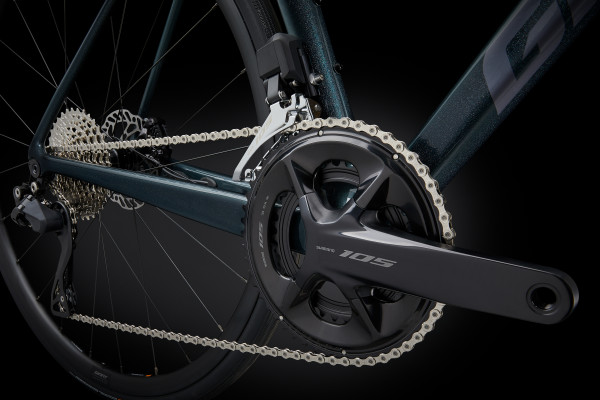

    Shimano 105 Di2 FD-R8150
  • Hátsó váltó
    Shimano 105 Di2 RD-R8150
  • Fékek
    Shimano 105 Di2 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
  • Fékkarok
    Shimano 105 Di2
  • Fogaskoszorú
    Shimano 105, 12-speed, 11x36
  • Lánc
    KMC X12L-1
  • Hajtómű
    Shimano 105, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Középcsapágy
    Shimano, press fit
  • Felnik
    Giant P-R2, [F]36mm, [R]36mm
  • Agyak
    12mm thru-axle
  • Küllők
    stainless
  • Külsők
    Giant Gavia Course 1, tubeless, 700x25c (28mm), folding
  • Kiegészítők
    tubeless prepared, 33mm max tire size
  • Súly
    Mennyi a kerékpár súlya? Gyakran feltett kérdés, amelyre a válasz nem egyértelmű, hisz a méréshez nincs egységes szabvány. A súly nagyban függ a vázmérettől, a felszereltségtől stb. A legbiztosabb inforációt a helyi szaküzlet tud adni.

A felsorolt leírások előzetes értesítés nélkül is változhatnak.
